Printer Encoder Strips
Printer Encoder Strips products from JOHOPE. Confirm compatibility by printer model, part number, dimensions, connector and ink chemistry before quotation.
Encoder strips, also known as raster strips or linear encoder strips, are installed along the printhead carriage path; they provide accurate position feedback to ensure precise carriage movement.
Working together with encoder sensors and main boards, it helps control printhead positioning, printing start/end points, and inkjet timing, reducing issues such as image misalignment, banding, and ghosting. They are widely used in eco-solvent, solvent, UV, and other large-format inkjet printers.
Matching products
25 products
circuit system
T-Fence Assy for Mutoh ValueJet VJ-1304W DG-42064
circuit system
Encoder Strip for Mimaki UJF-6042 MP-E300969
circuit system

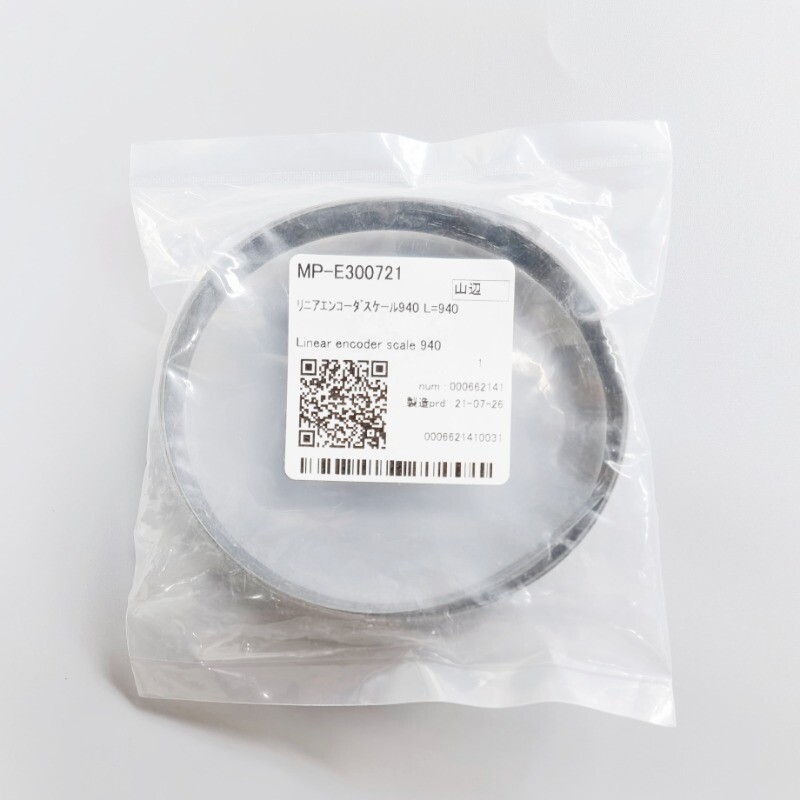

Linear Encoder Scale 940 for Mimaki UJF-3042 MP-E300721
circuit system

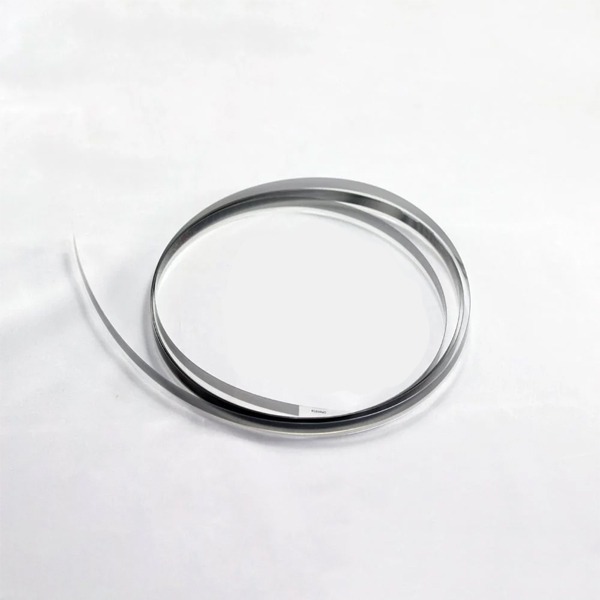

CR Scale (Encoder Strip) for Epson S30670 Printer 1574120
circuit system
Epson Encoder Strip for Epson L1800/1390/R1400/1410/1430
circuit system
Mutoh Rasters 2.7m-1.2m Mutoh
circuit system

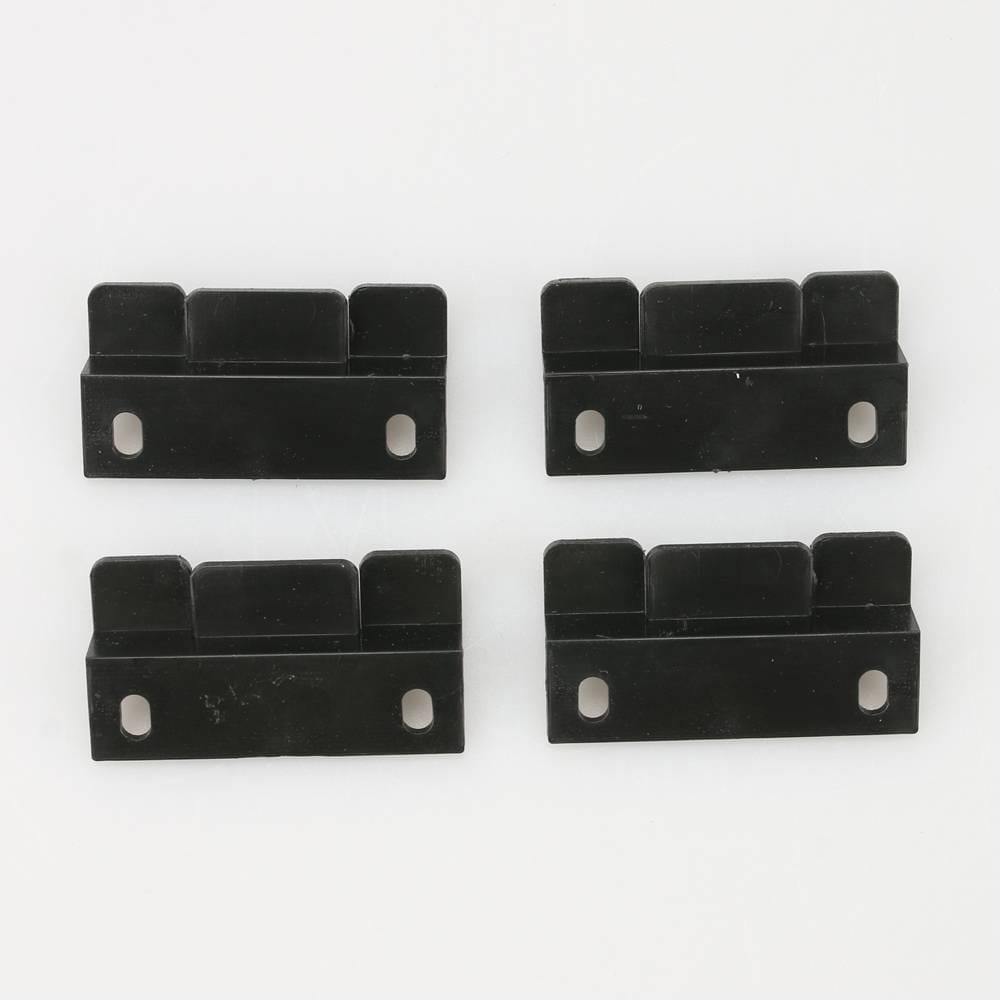

Raster Bracket
circuit system

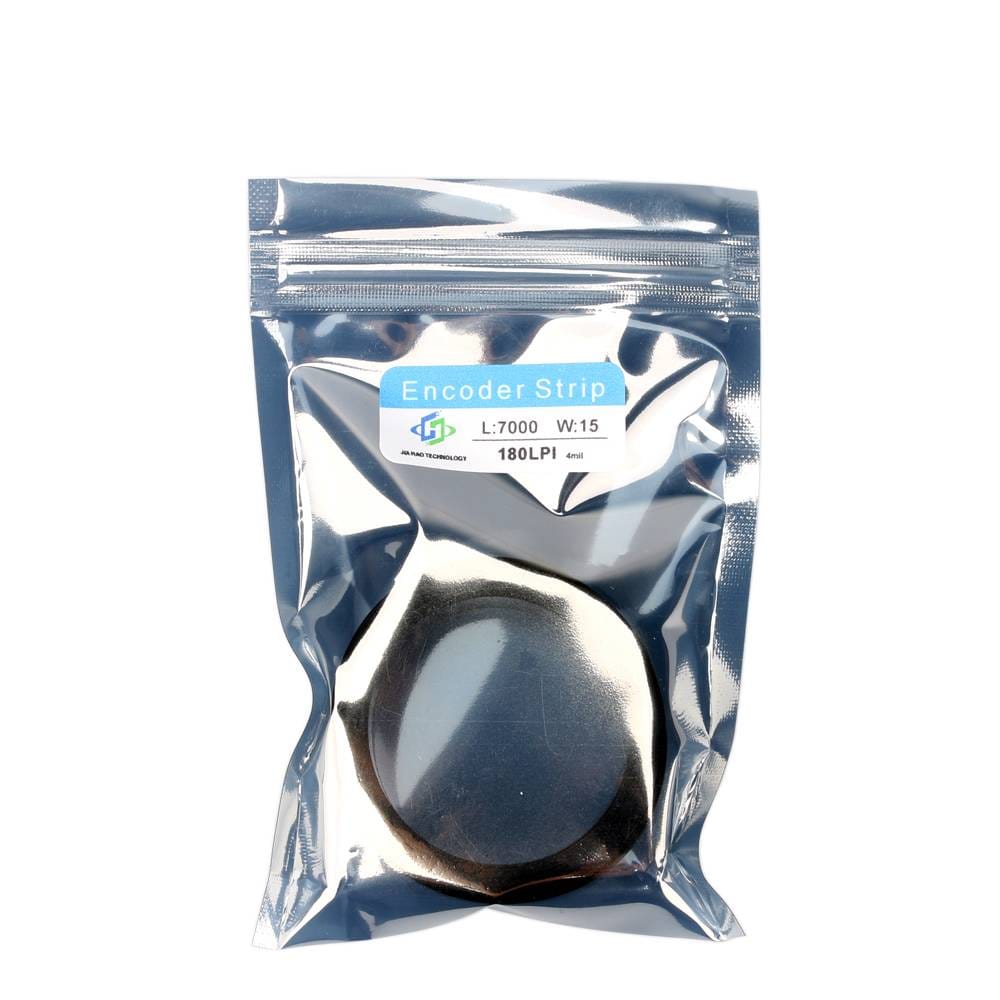

Encoder Strip 180LPI-7.0m-15mm
circuit system

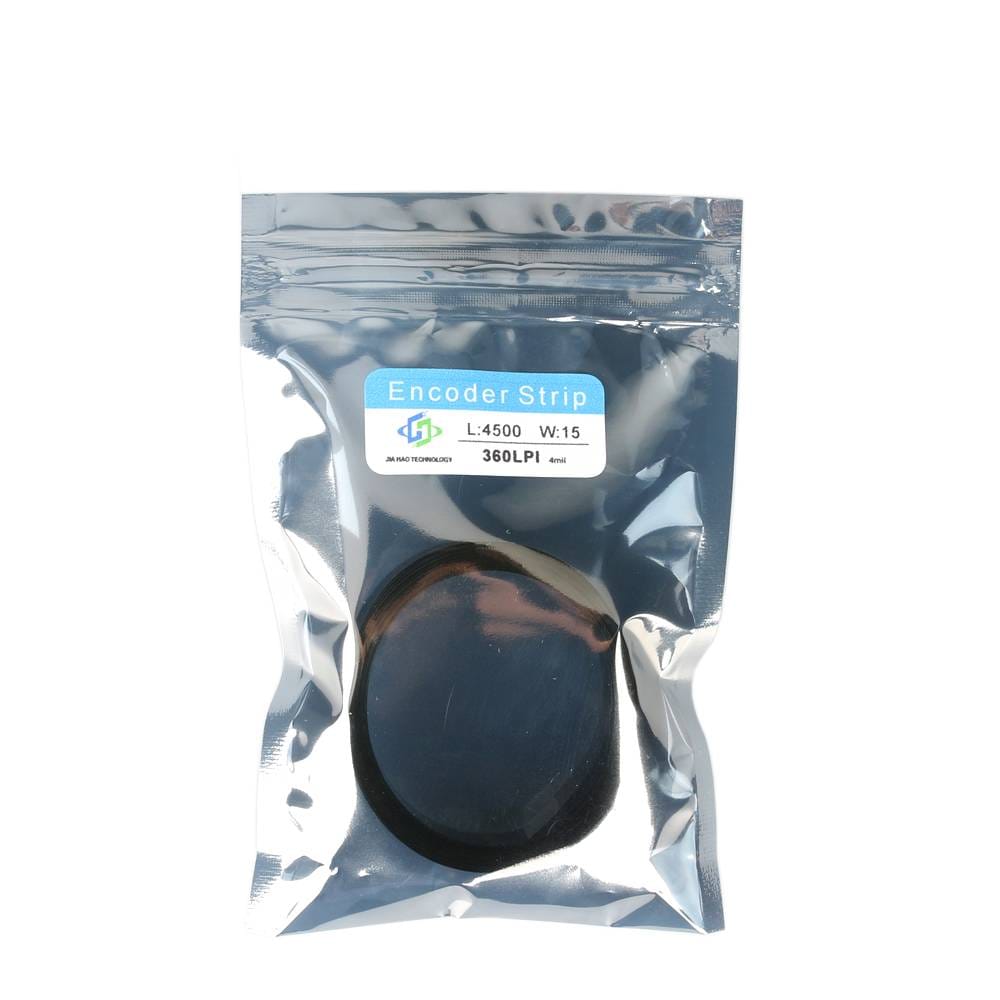

Encoder Strip 360LPI-4.5m-15mm
circuit system

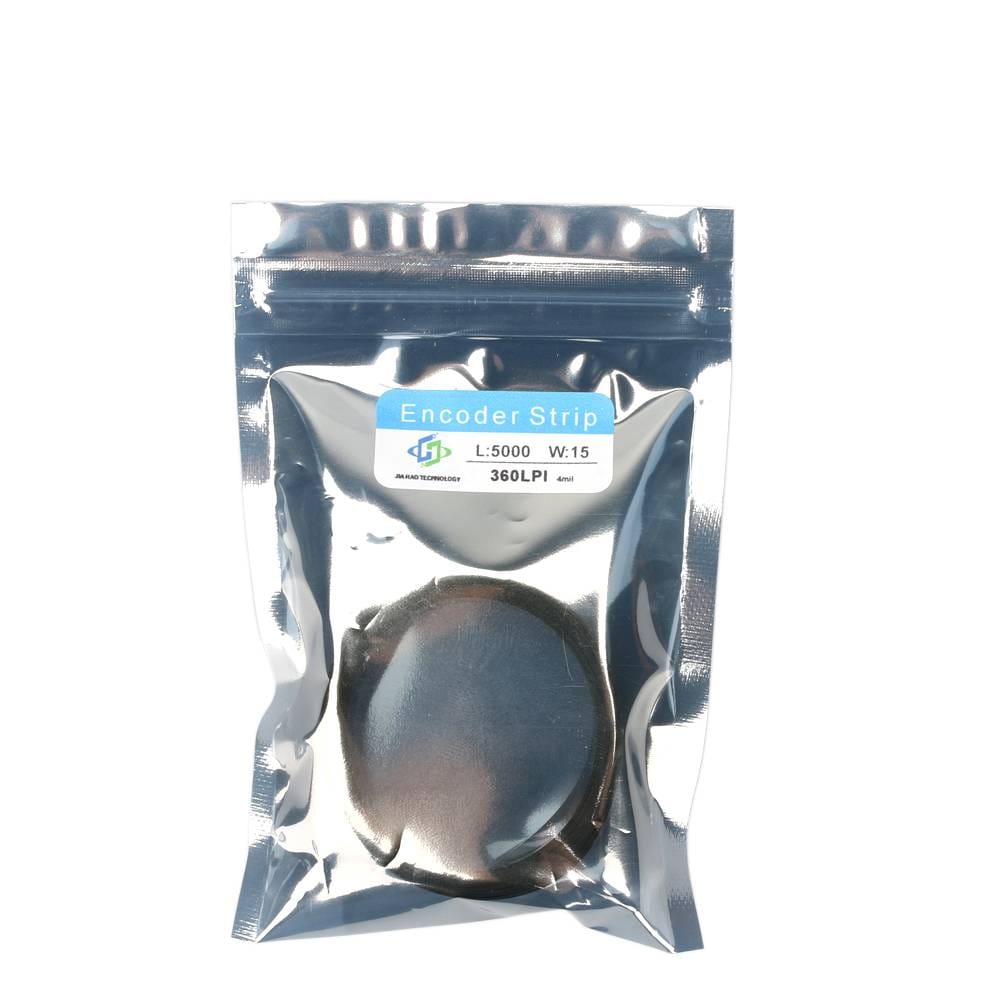

Encoder Strip 360LPI-5.0m-15mm
circuit system

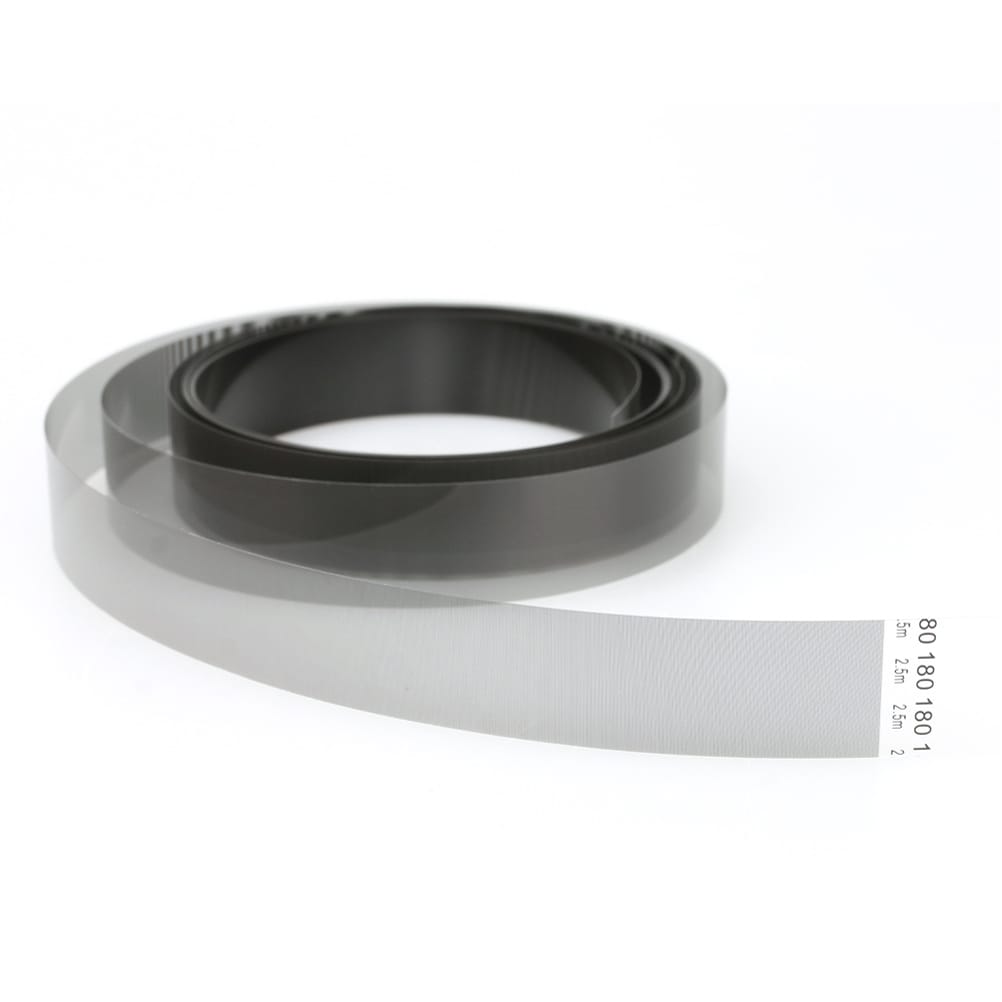

180LPI Encoder Strip 2.5m-15mm
circuit system

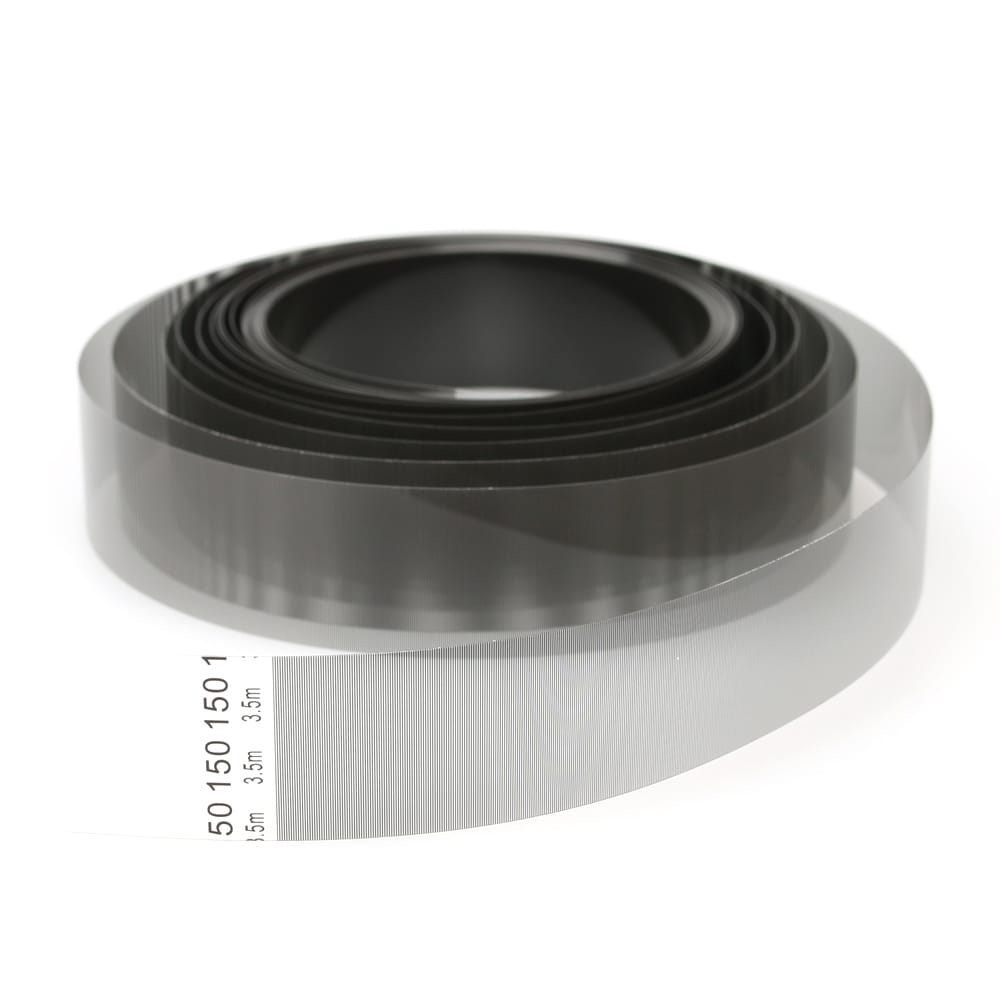

Encoder Strip 150LPI-3.5m-15mm
circuit system

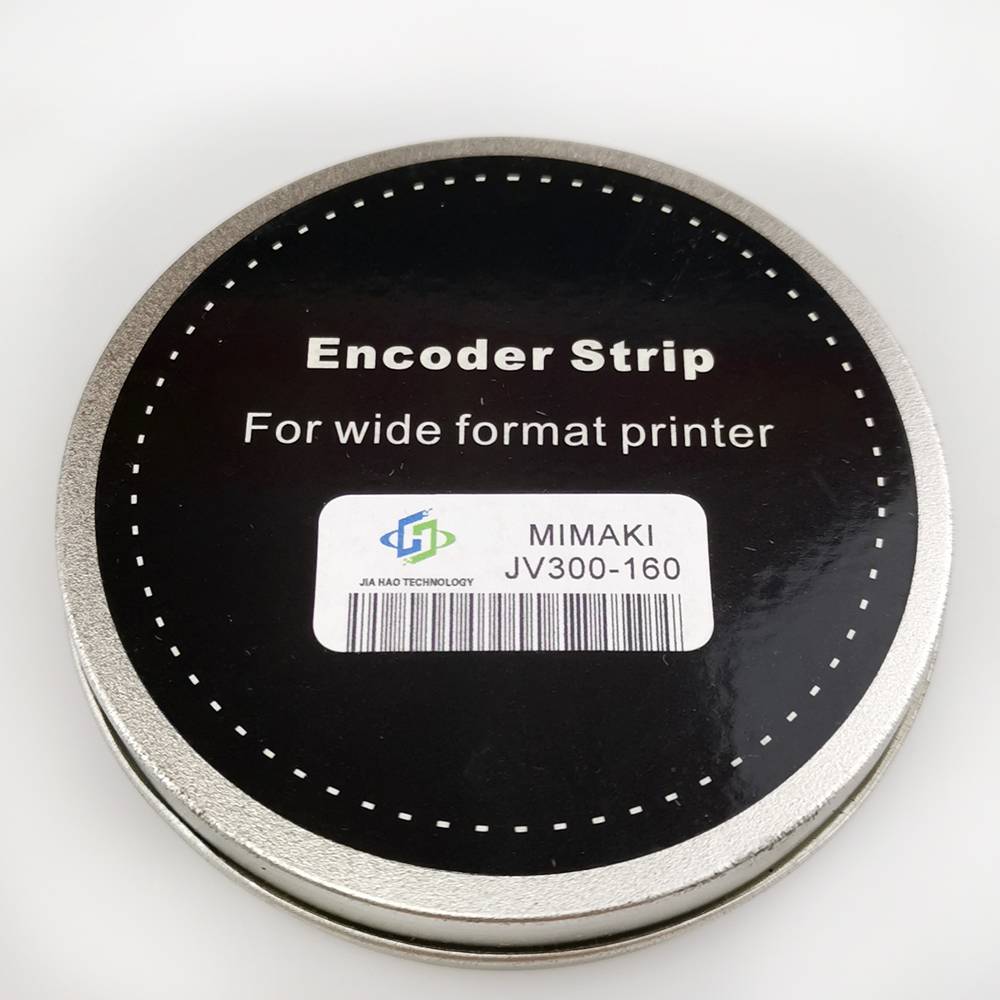

Mimaki JV150/JV300 Encoder Strip 2.43m
circuit system

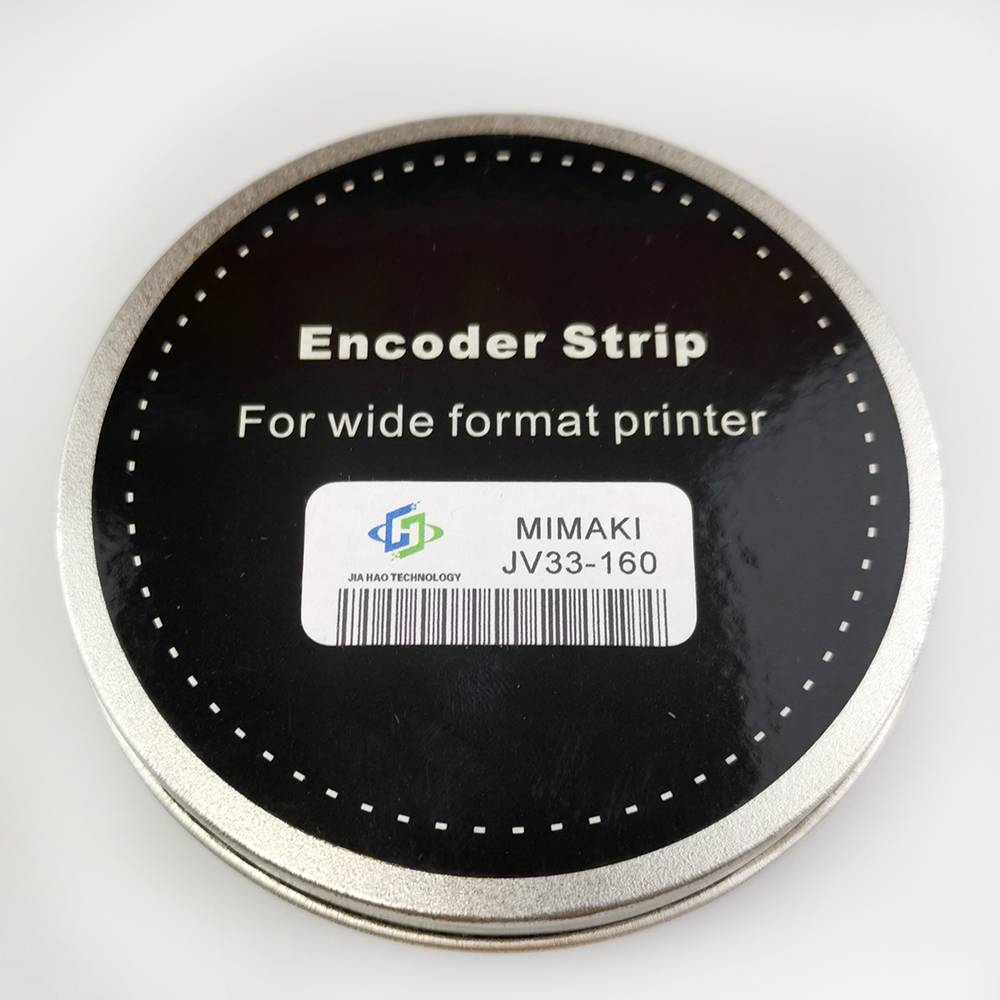

Mimaki JV33 Encoder Strip with Holes 2.2m
circuit system

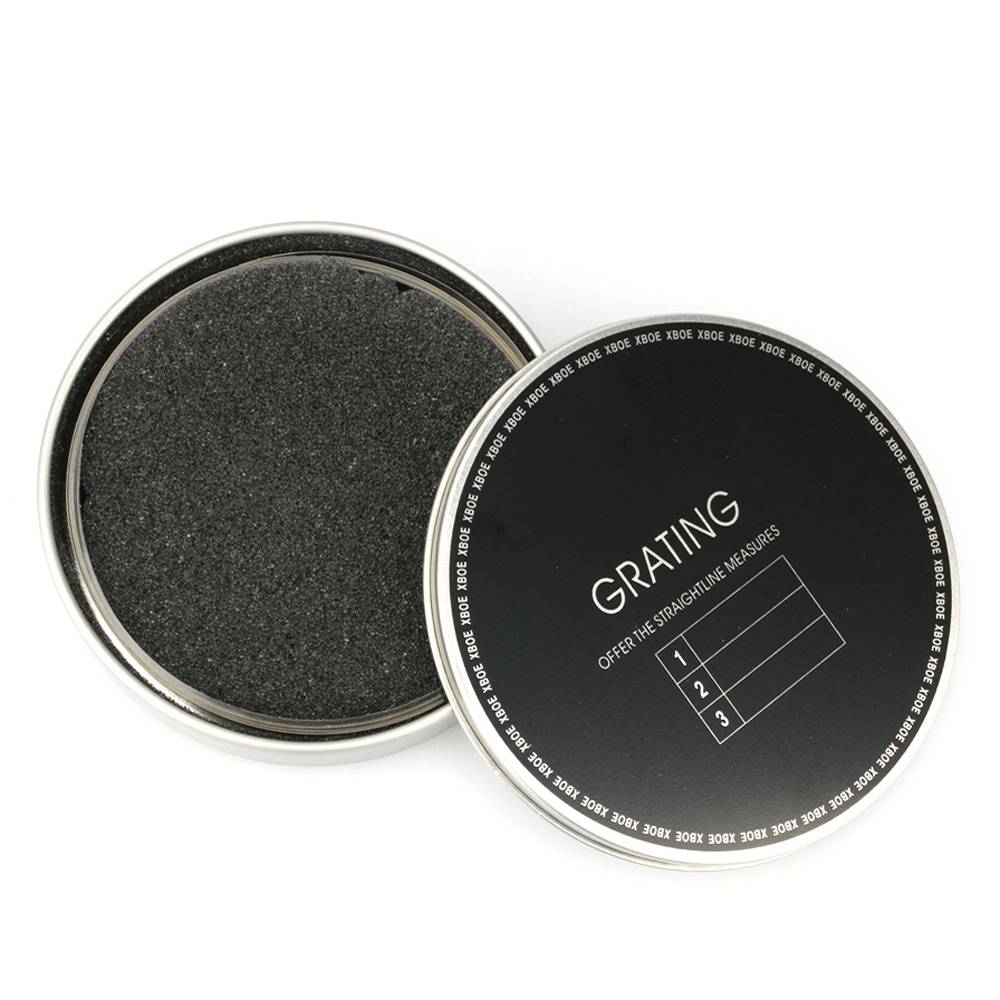

180LPI Imported Encoder Strip 15*2.438m
FAQ
What does an encoder strip do?
An encoder strip, also known as a raster strip or linear encoder strip, is installed along the printhead carriage path and provides position feedback for carriage movement. Working with the encoder sensor and main board, it governs printhead positioning, printing start and end points, and inkjet timing.
Can a dirty or damaged encoder strip cause print defects?
Yes. Because the encoder strip carries the position reference the machine reads, problems with it contribute to image misalignment, banding and ghosting. Those symptoms are a reason to inspect the strip and its sensor before assuming a printhead fault.
How do I order the right encoder strip?
An encoder strip is specified by its length and its encoding resolution as well as the printer model, so all three need to be confirmed. Send JOHOPE your machine model and the specification of the strip currently fitted, and the match is reviewed before any quotation.
