Damper#12737
Listed printhead match
I3200
- Suitable Printheads
- Epson i3200 HD Printheads
- Inner diameter
- 1.8 mm
Confirm the part number, connector and ink system for your printer.
Product photos
At a glance
- Ink Type
- Eco-solvent
- Type
- PrecisionCore MicroTFP printhead
- Width*Depth*Height
- 69.1*59.5*36.7mm
- Number of Nozzles
- 3200
StockConfirm at quotation
Lead timeConfirm at quotation
Price: Request a quote
Supplier: Johope · Shenzhen, China
Company & contactListed printer models 1
Confirm the part number, connector and ink system before ordering.
Product details

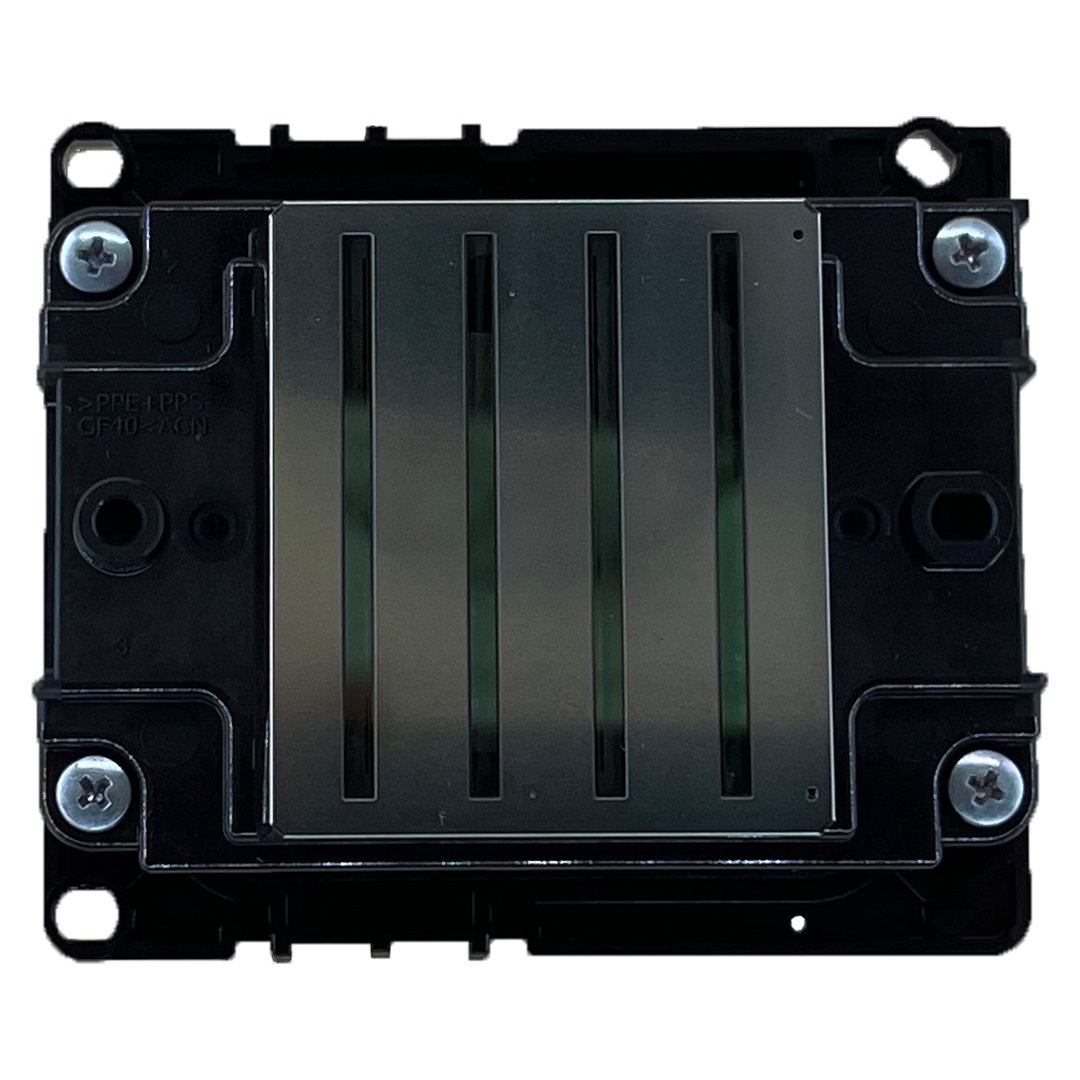

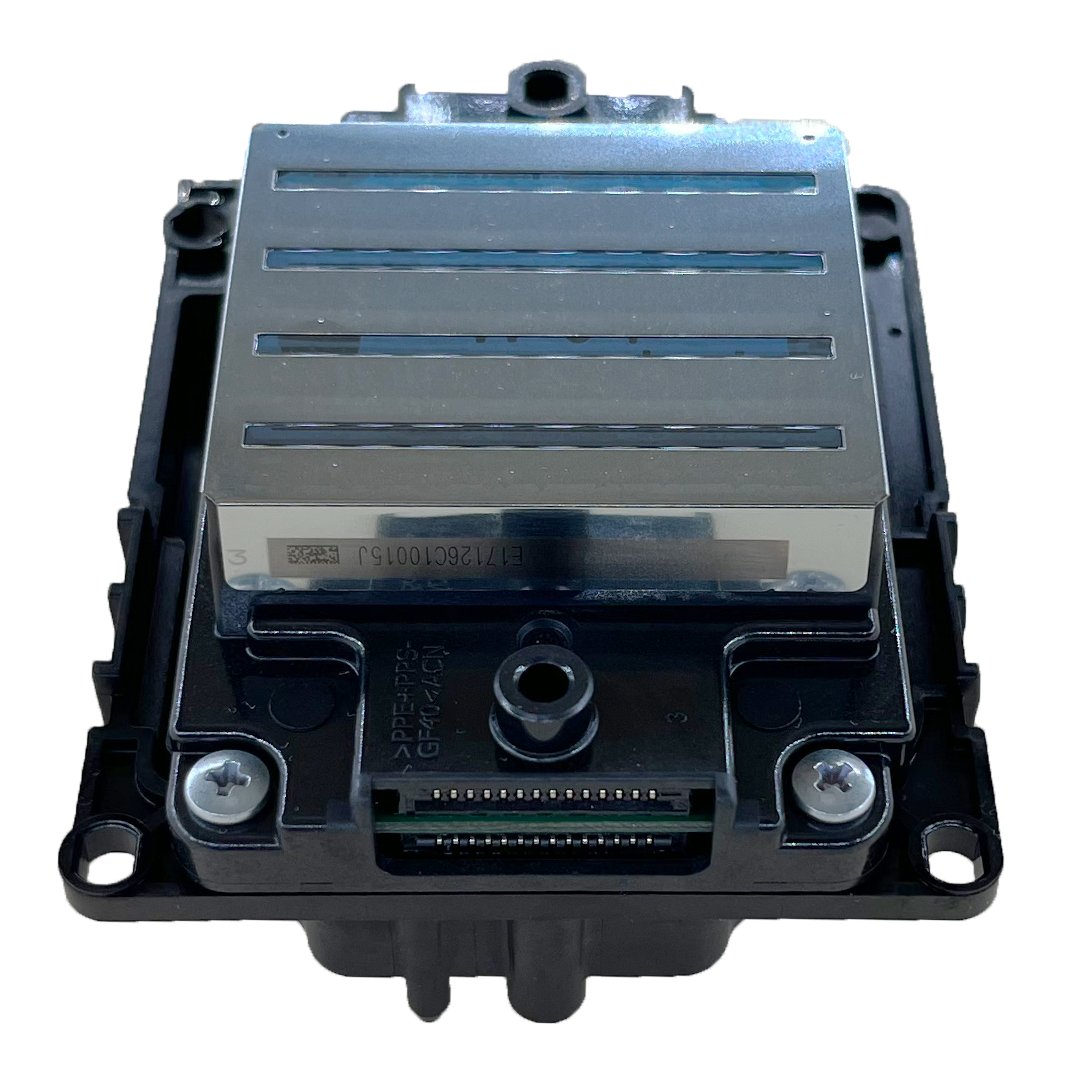

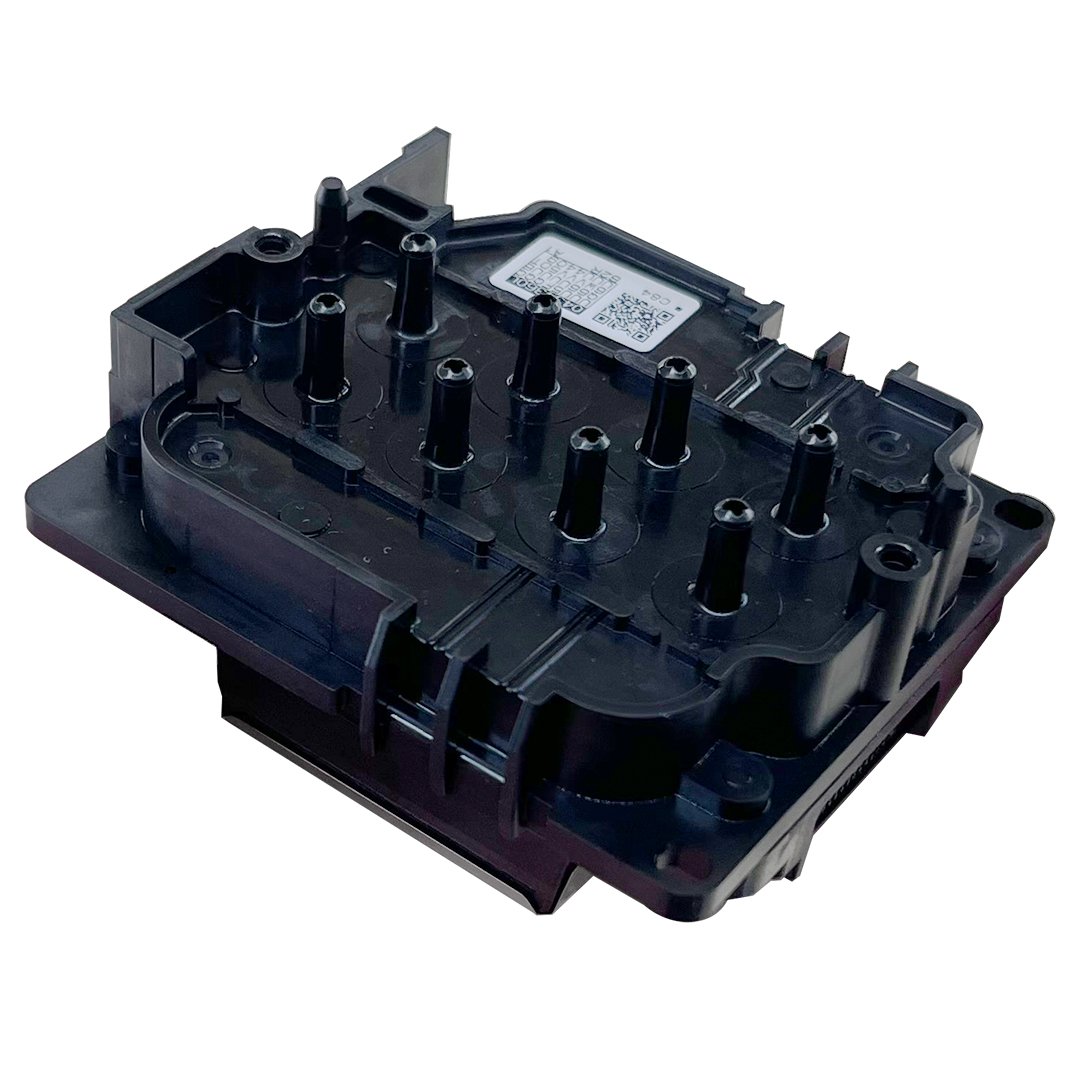

Epson I3200 E1 (HD) Printhead Description
The Epson I3200(8)-A1HD printhead uses Epson PrecisionCore technology, ALL MEMS (micro-electromechanical system) manufacturing process and thin-film piezoelectric components, achieving high-precision output while also having higher reliability and flexibility. In addition, it is equipped with 8 ink channels, and the same color ink uses 4 adjacent channels, which makes color configuration more flexible and the ink droplet placement more accurate. It is compatible with the same board, ink, and waveform as the I3200-A1 (4-channel) printhead, and has strong adaptability. In the actual 2-color (4-channel) printing application, the resolution reaches 1200 dpi, with high printing quality and a wide printing range, and can be used in the field of industrial printing.
Epson I3200 E1 (HD) Printhead Specifications
| Ink Type | Eco-solvent |
| Type | PrecisionCore MicroTFP printhead |
| Width*Depth*Height | 69.1*59.5*36.7mm |
| Number of Nozzles | 3200 |
| Nozzle Resolution | 300npi/row 600npi/2 rows 1200npi/4 rows |
| Max. Number of Color inks | 8 colors |
| Effective Print Width | 33.8 mm (1.33 inches) |
| Brand | Epson |
|---|---|
| Model | i3200 E1(HD) |
| Width x Depth x Height | 69.1 x 59.5 x 36.7 mm |
| Weight | 82g |
| Ink Compatibility | Eco-solvent ink |
Meet Johope.
Shenzhen Johope Technology Co., Limited
Johope Technology works in research and development, manufacturing, sales, and service for wide-format inkjet printer parts.
Explore our company profile (opens a new tab)- Collaborative work environment
- 13,000㎡+
- Multi-skilled employees
- 62
Company figures published on Johope’s website.
Photos from our company profile. Product availability is confirmed at quotation.
Request a quoteEnquire about the i3200 E1(HD)
Enquire about Epson I3200 E1 (HD) Printhead.
Share your contact details and tell us what you need. Your printhead and selected accessories will be included in the enquiry.
Model: i3200 E1(HD)
