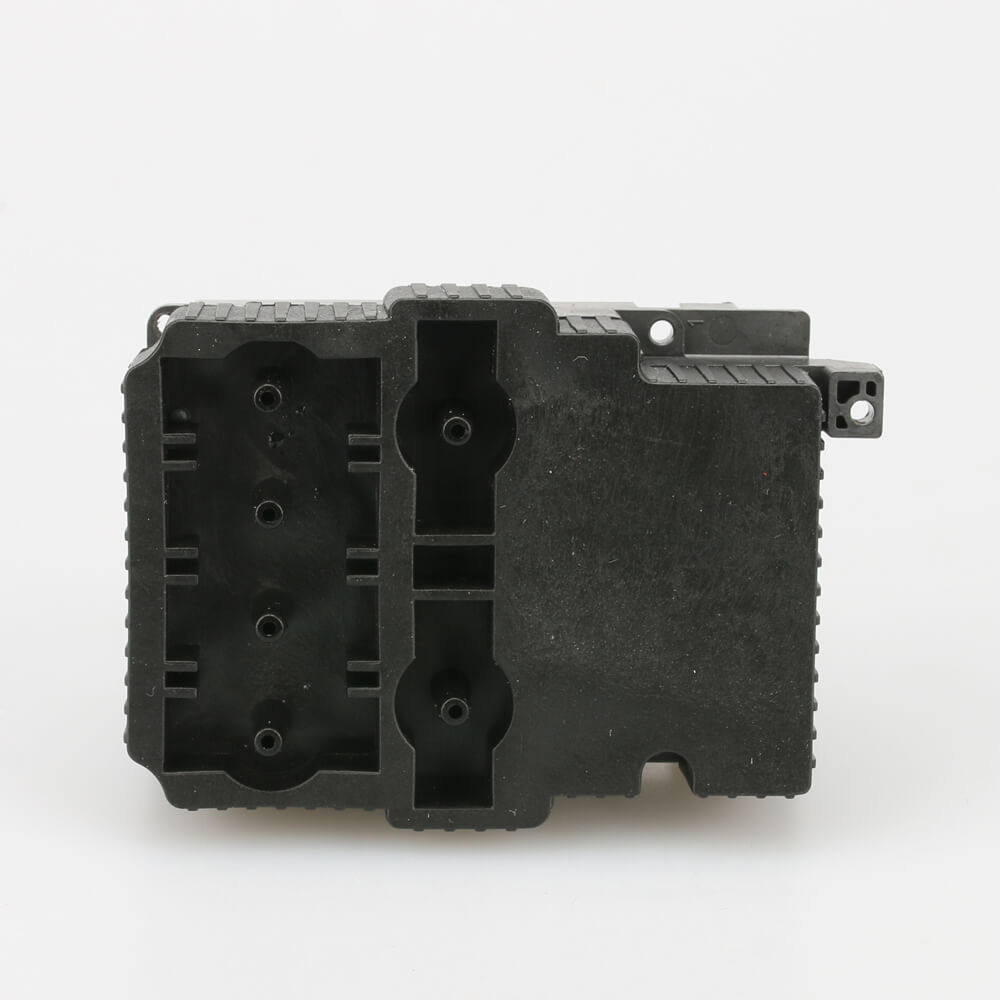

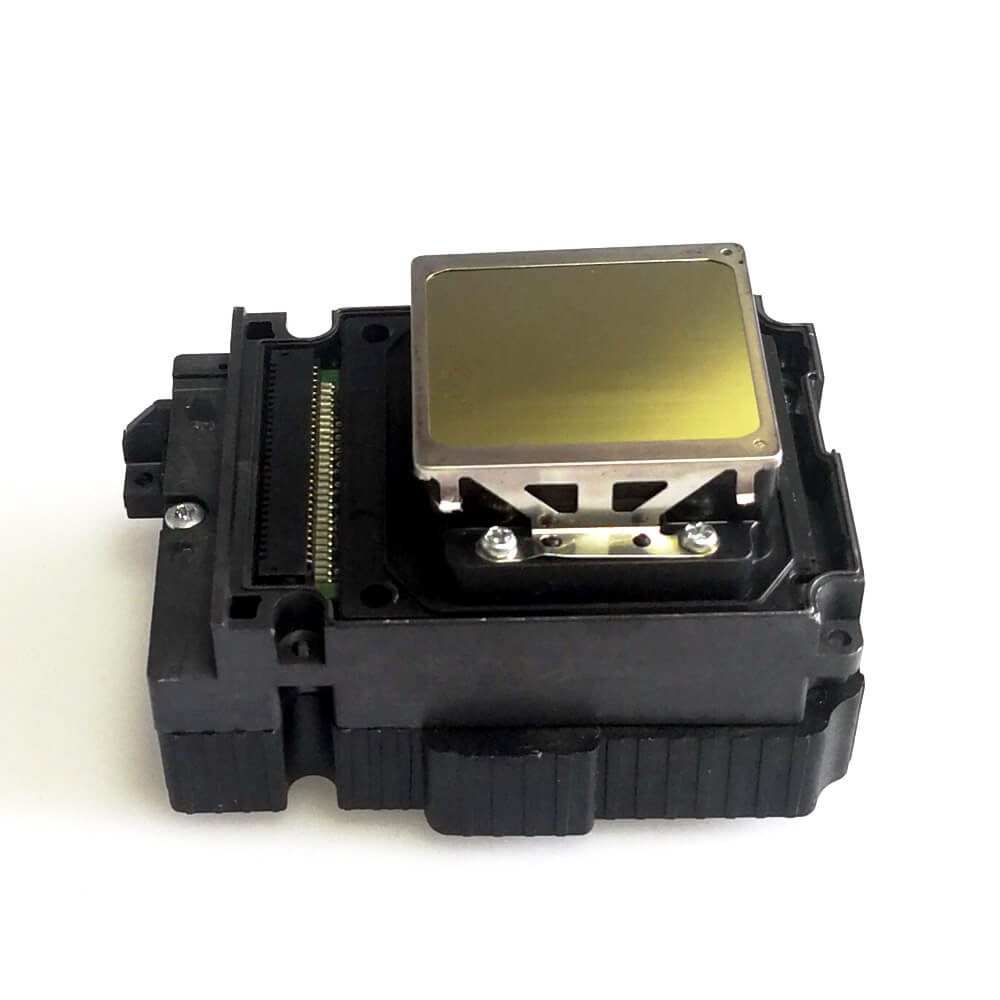

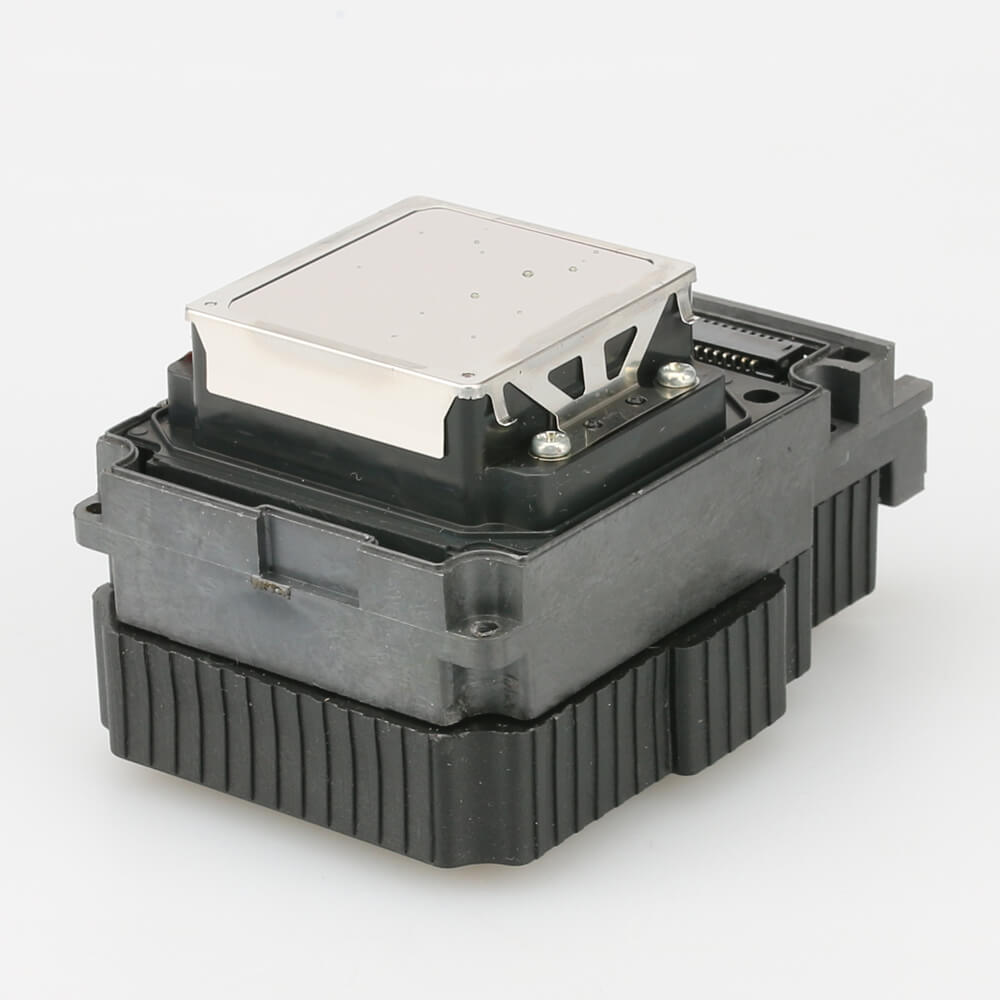

Epson TX800 Print Head Dessembled New (F192040)

Share:

Basic Info.

  • Brand: Epson
  • Model Number: F192040
  • Original or Not: Original
  • New or Used: Brand New
  • Warranty Policy: No Warranty
  • Compatible Ink Types: Eco-Solvent, Oil, UV

*For more information about this printer part, you can send us an inquiry.

Delivery:
Payment:

Product Details

Epson TX800 Printhead Description

As the Epson controls the market more and more strictly, the original Epson DX5 and DX7 printheads are becoming less and less popular on the market. The process is from unlocked, to first locked, to second locked, etc. The DX5 and DX7 printheads are becoming more and more limited in performance, but the price remains high. DX5 and DX7 have been discontinued since 2015 or earlier. Therefore, in economical digital printers, these two heads are gradually replaced by TX800/XP600.

The Epson TX800 printhead is a six-color printhead, but the general machine prints 4 colors, which means there will be two channels left, and these channels can be replaced with other colors. An obvious advantage of this type of printhead is that it is relatively cheap. The Epson printhead TX800 facilitates fast printing while maintaining excellent print quality, making it ideal for use in UV printers. However, when utilizing UV technology, it is essential to properly protect glass media prior to printing. If not adequately protected, UV rays can reflect off the glass and cause permanent, irreversible damage to the printhead. However, there is a reason behind this low TX800 printhead price: the printhead channel is narrow, resulting in 30% less ink injection than a larger printhead. When working at high speed, it is easy for ink to break. In addition, when pumping ink, if the channel is too narrow, it is easy to cause ink breakage.

Epson TX800 Printhead Specifications

TechnologyMicro-Piezo
Printing Resolution1440 dpi
Number of nozzles1080 (6 rows x 180 nozzles )
Nozzle resolution180 npi /row 360 npi/2 rows
Ink CompatibilityUV Ink/Eco-Solvent Ink, Water Based Ink-Dye Ink / Pigment Ink / Textile Ink / Sublimation Ink / Art Paper Ink, etc.
Jetting Frequency46 kHz (Single mode); 11.52 kHz (Multi mode)
Droplet volumes4.5, 9, 20, 40 pl (Multi mode)
Viscosity range3-5 mPa・s
Dimensions84.9 x 57.2 x 42.6 mm
Weigh60g



Compatible Printers:

Epson A700/A710/A730/A800/A810/A835/A837

774A/775A/801A/804A/901A/904A/TX659/TX800/TX810/TX820/TX830

TX700W/TX710W/TX720W/TX800FW/TX820FWD/PX700W/PX710W

PX720WD/PX730WD/PX800FW/PX810FW/PX820FWD/PX830FWD
