Kyocera KJ4B-QA06NTB-HZ5V-4A Print Head

Share:

Basic Info.

  • Brand: Kyocera
  • Ink Type:  Aqueous Ink
  • Dimensions: 200 × 25 × 59.3mm
  • Dry Weight: 420g
  • Original or Not: Original
  • New or Used: Brand New
  • Warranty Policy: No Warranty
  • Country of origin: Japan

*For more information about this printer part, you can send us an inquiry.

Printer Compatibility
Delivery:
Payment:

Product Details

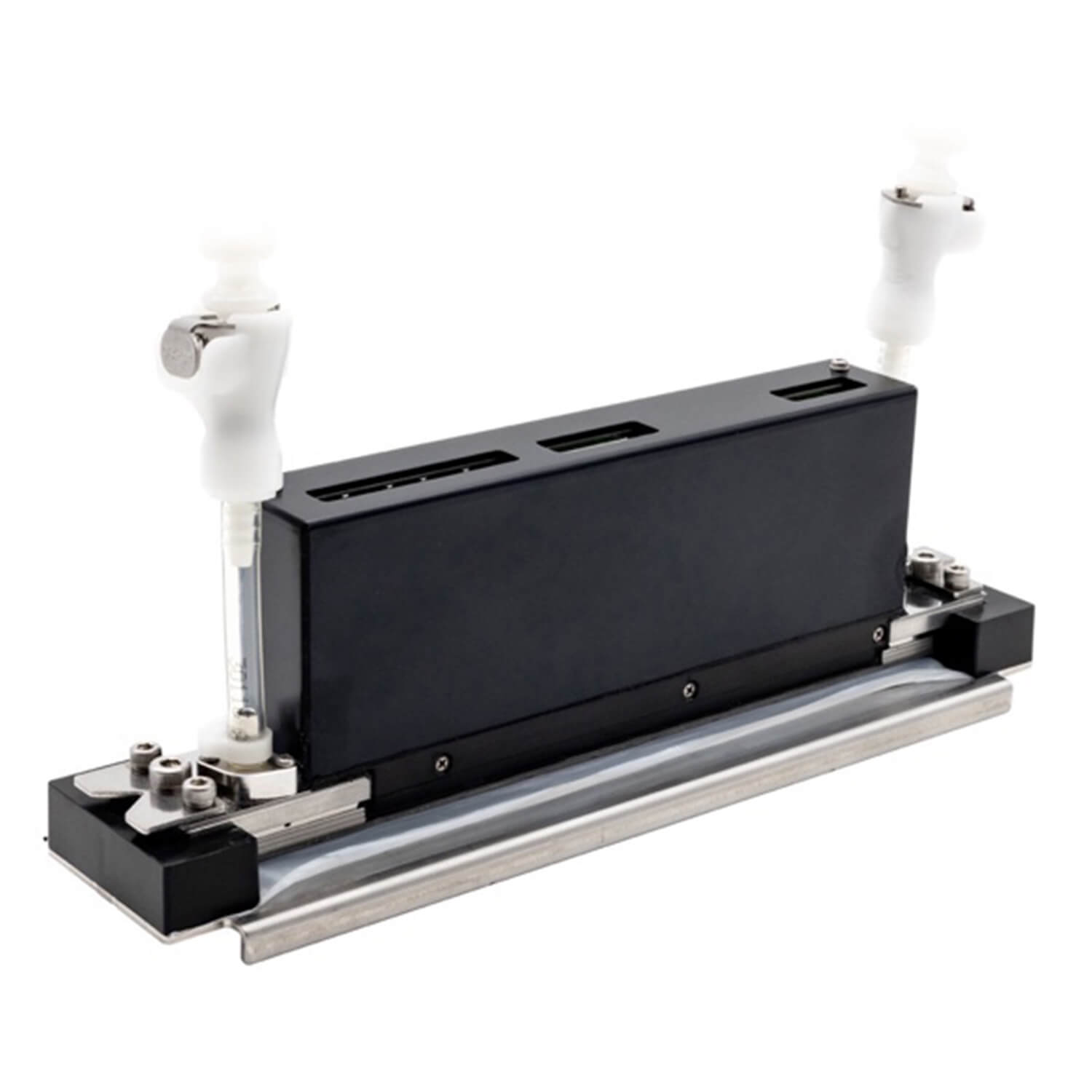

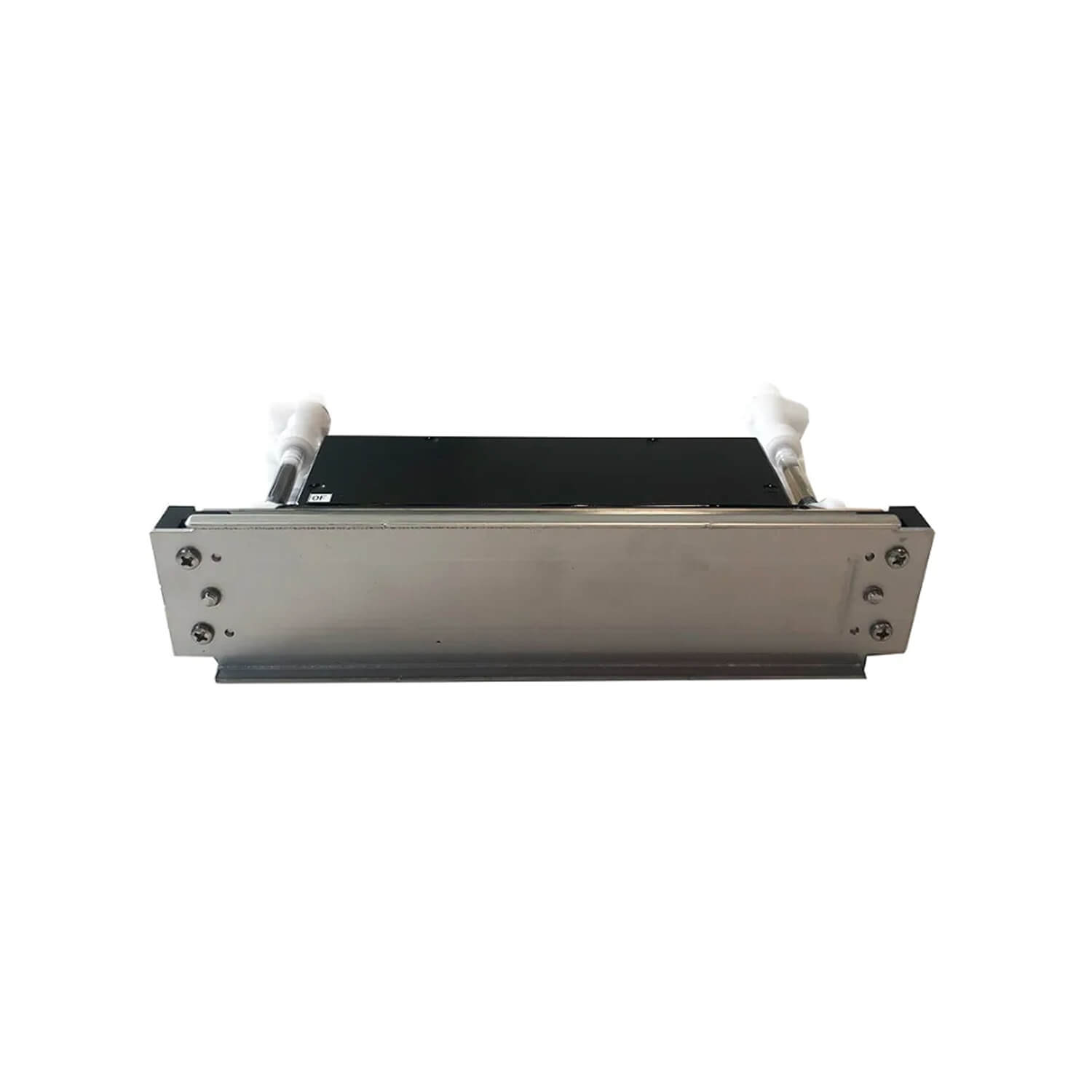

Kyocera KJ4B-QA06NTB Printhead Description

The latest Kyocera KJ4B-QA model is specifically designed for high-speed printing with water-based inks. This 600dpi one-color printhead features a maximum drive frequency of 30kHz. It achieves high-quality output with a small drop volume of 5pl at a speed of 75 m/min, utilizing 2,656 nozzles arranged across a 108.25 mm wide print swathe with a 0.042mm pitch, resulting in 30,000 drops per second.

The Kyocera KJ4B-QA printhead is equipped with internal filters to eliminate foreign particles in the ink and an internal heater to mitigate the effects of external temperatures. Its unique ink channel design ensures a stable ink supply, enhancing print reliability and quality.

The Kyocera KJ4B series is engineered for high-speed printing with water-based ink, offering exceptional productivity for both single-pass applications like transaction, document, and security printing with MICR ink, and multi-pass applications, including textile printing.

Kyocera KJ4B-QA06NTB Printhead Specifications

Number of Nozzles2656 (2558)
Effective Print Width (mm)108.25
InkAQ
Maximum Drive Frequency (kHz)30
Resolution (dpi)600dpi*600dpi
Print Speed *1 (m/min)76.2


Print Speed*1 (pl)

Minimum5
Maximum12
Nozzle RecirculationNo
Width*Length*Height (mm)200*25*57.9
Recommended Ink Viscosity*2 (mPa * s)5.0~6.0



Printer Compatibility

EFI: Reggiani ReNOIR TOP
MS Italy: JP6
Xerox: Rialto 900
