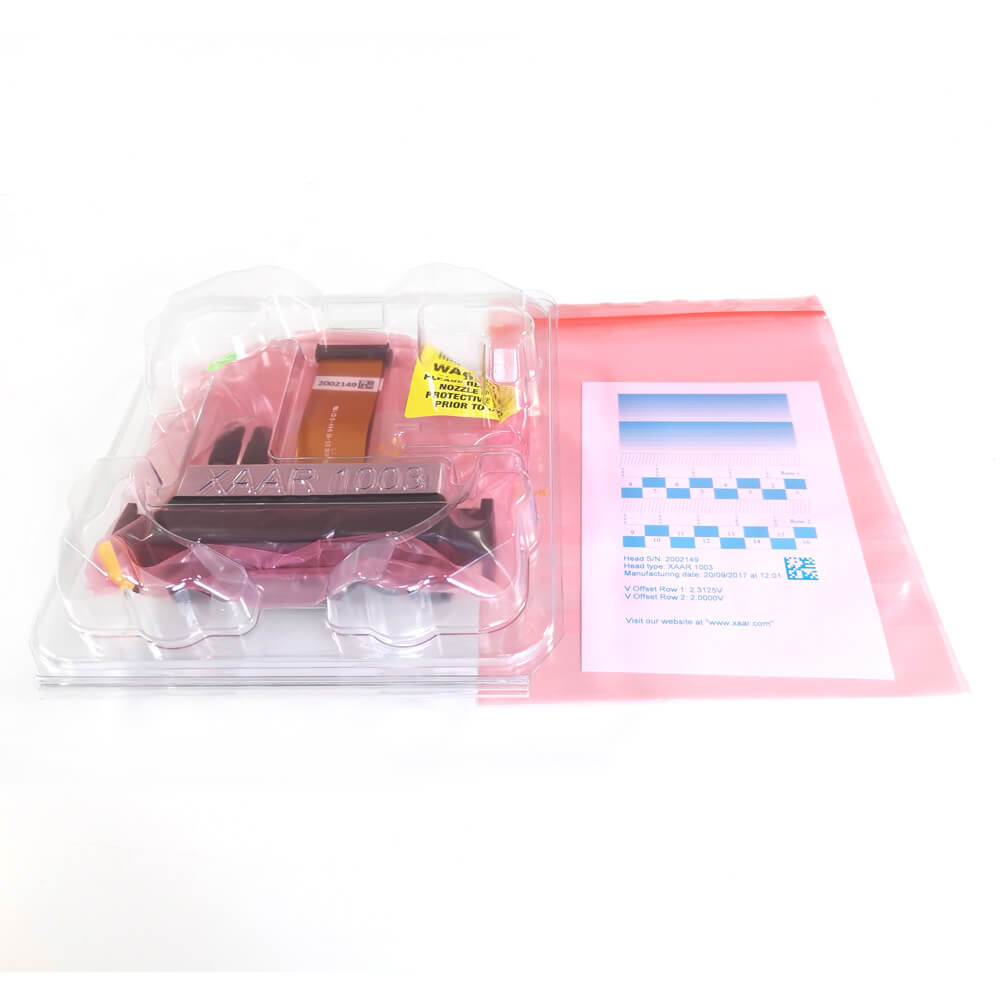

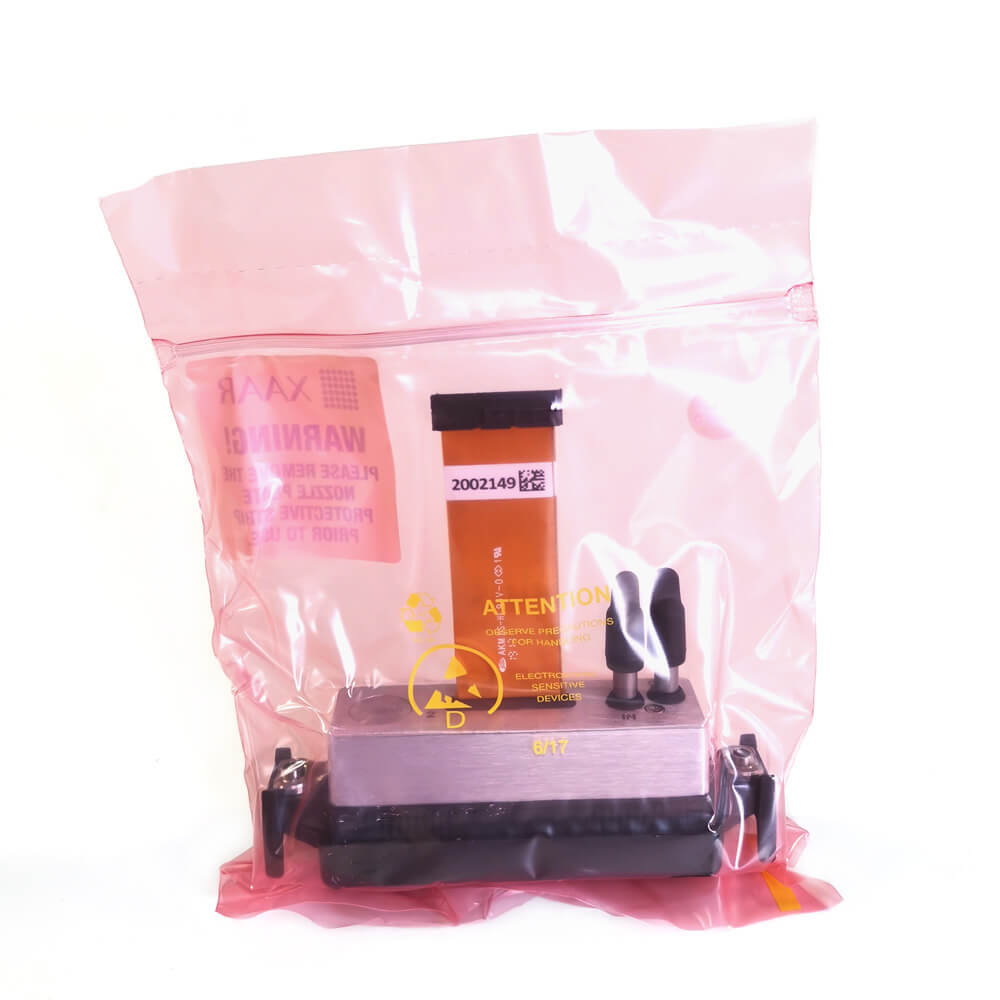

Xaar 1003 GS6U Print Head

Share:

Basic Info.

  • Brand: XAAR
  • Weight:144.00g
  • Original or Not: Original
  • New or Used: Brand New
  • Warranty Policy: No Warranty
  • Compatible Ink Types: Oil, UV, solvent inks
    Dimensions (W x D x H): 125x30x60 mm

*For more information about this printer part, you can send us an inquiry.

Printer Compatibility
Delivery:
Payment:

Product Details

Xaar 1003 GS6U Printhead Description

A digital press equipped with Xaar 1003 GS6U printheads allows for 360dpi resolution across various industrial applications. It supports printing at 360 x 360dpi with speeds up to 50m/min and offers 4 grey levels (6, 12, 18pL).

Xaar’s exclusive technologies ensure continuous and reliable single-pass printing, maximizing production output, minimizing interruptions, and reducing the need for operator intervention. Combining high precision with the proven success of True Inline patented ink recirculation, the Xaar 1003 printhead UV brings the highest standards of print quality and the reliability of digital printing, making it ideal for a wide range of industrial applications.

Xaar 1003 GS6U Printhead Specifications

Active Nozzles1000
Print Swathe Width70.5mm
Nozzle density (nozzles per inch)360npi
Drop volume6 to 42pl
Firing Frequency/grey levels27kHz/binary, 12kHz/4 grey levels, 6kHz/8 grey levels
Max line speed/grey levels (360*360dpi)50 m/min / 4 grey levels, 25 m/min /8 grey levels
Ink TypeSolvent, oil, UV



Printer Compatibility

Xeikon ®Jetrion Printers
