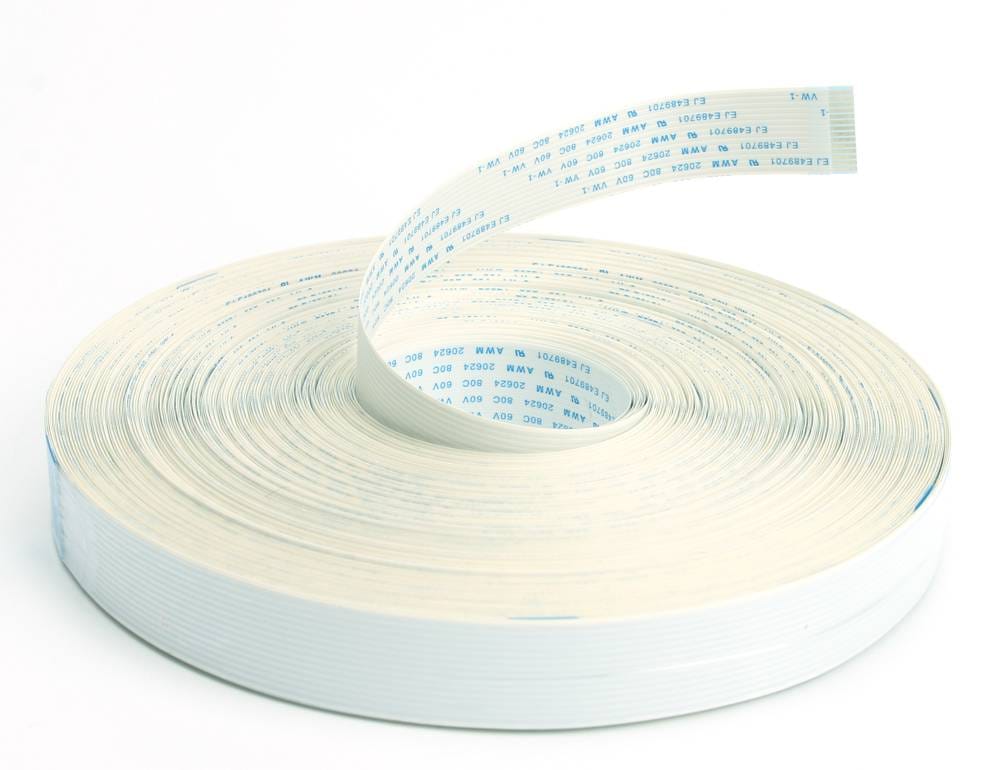

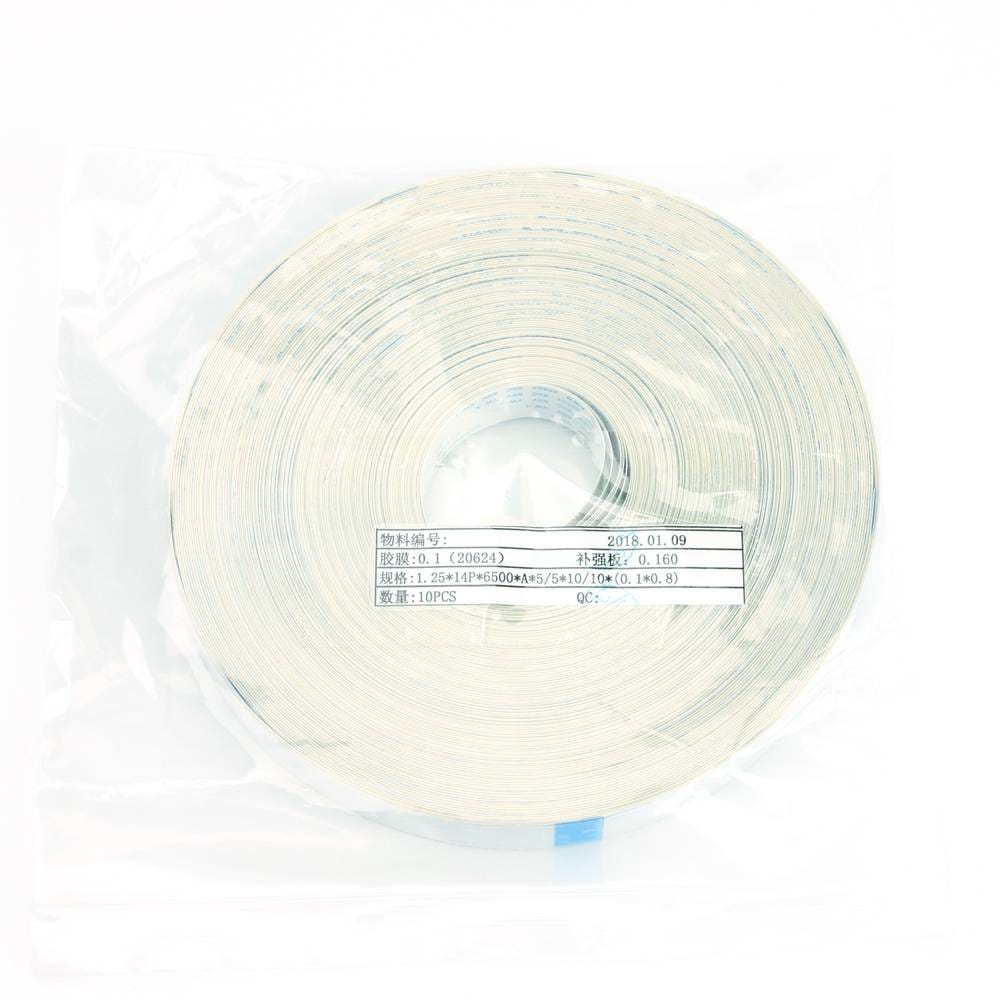

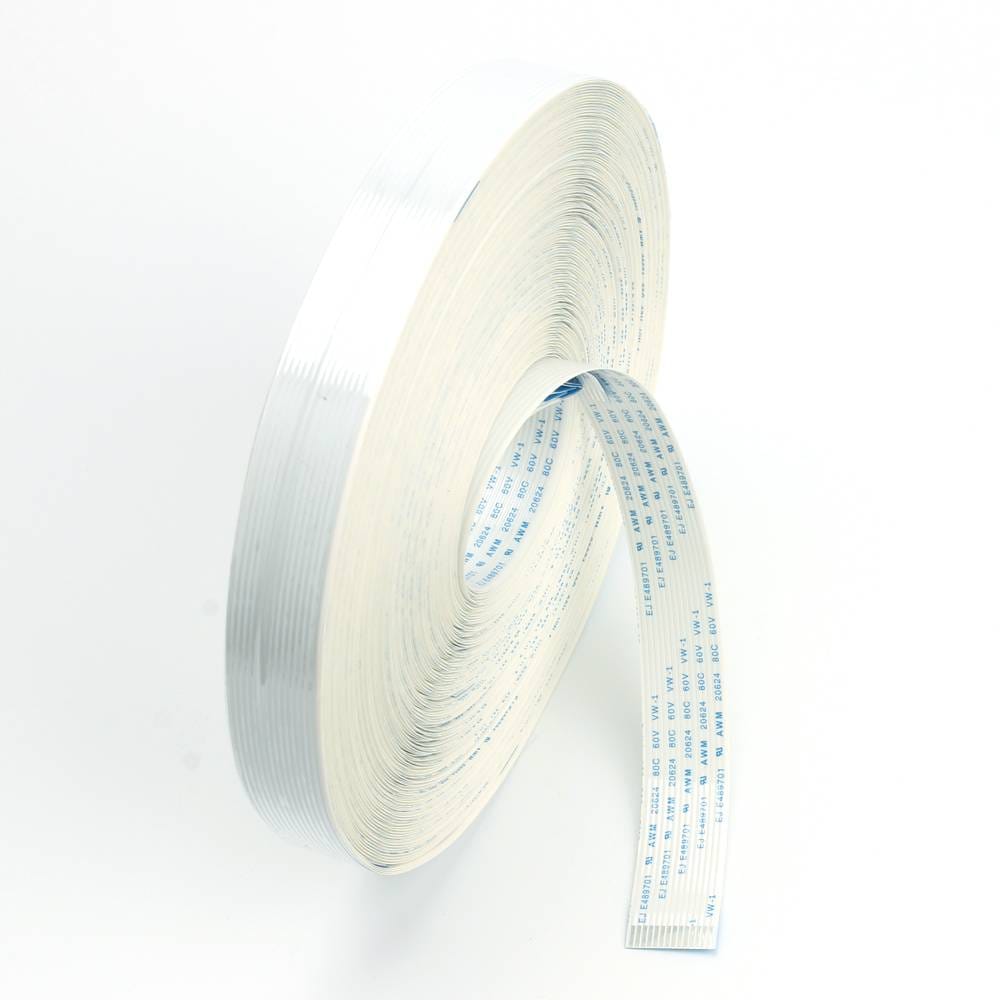

Crystaljet Long Data Cable

Crystaljet Printer Head Cable Description

This high-quality data flat cable is compatible with the Crystaljet printer head. This cable connects to the printhead. We recommend changing the head cable when replacing the printhead.

Model: 14P5500A-1.2

14P means there are 14 chips on the cable.
5500 means the length is 550cm.
A means the two ends of the chip are on the same surface. B means the two ends of the chip are on the reverse surface.
1.2 means the distance between the two chips is 1.2mm.

Crystaljet Printer Head Cable Specifications

Pins	14P
Length	550cm
Pins Width	1.2mm
Pin Direction	The chip at Same Face (A)
Suitable Printhead	Crystaljet printer Head
Product name	18 Pins Long Data Cable for Crystaljet Printer
Type	Long Data Cable
Use	For Crystaljet Printer
Printing Type	Inkjet Printer
Model	18P5500A-1.2/18P6500A-1.2
Pins (additional source detail)	18 Pins
Length (additional source detail)	6.5m/5.5m
Contact Position	Same Side



Crystaljet long cable	14P5500A-1.2
	14P6500A-1.2
	16P5500A-1.2
	16P6500A-1.2
	18P5500A-1.2
	18P6500A-1.2
