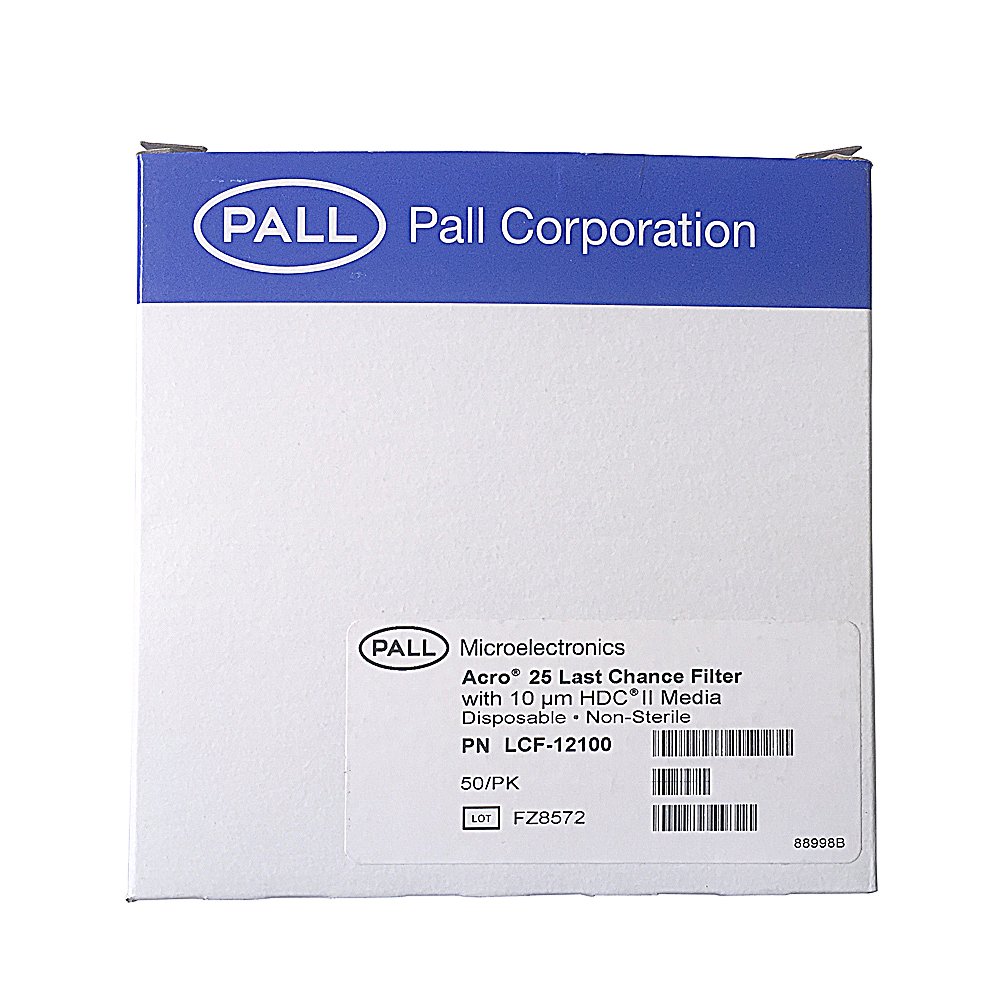

Original Inkjet Parts Filter for LCF12100 10U Digital Textile Printer

Share:

Basic Info.

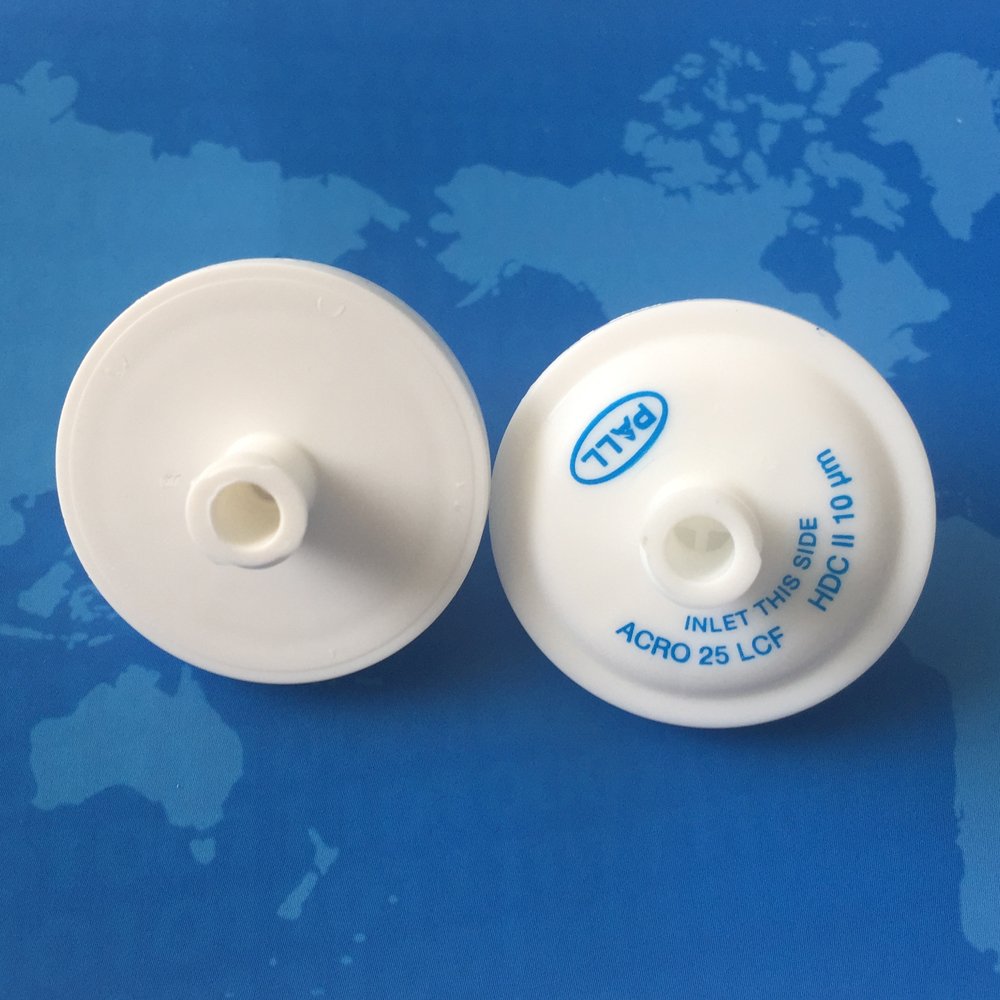

  • Type: Acro® Disc 25 Last Chance Filter (LCF)
  • Pore Size: 10 micron
  • Inlet Connection: Female Luer-Lok Compatible
  • Outlet Connection: Female Luer-Lok Compatible
  • Disc Diameter: 29,97mm (1.18″)
  • Disc Width: 20,57mm (0.81″) (Luers inc.)
  • Maximum Operating Pressure: 5.2 barg / 75 psig @ 20 °C / 68 °F
  • Materials of Construction: Housing Polypropylene with white colorant
  • Filter media: Polypropylene
  • Effective filter area: 3.9 cm2 / 0.6 in2
  • Use: Air / Liquid
  • Solvent Resistant: Yes
  • UV Resistant: Yes

*For more information about this printer part, you can send us an inquiry.

Printer Compatibility
Delivery:
Payment:

Product Details

1. This white Last Chance Filter (LCF) is suitable for solvent & UV inkjet printers. It runs with the maximum working pressure of 5.2 barg/75psig@20°C/68°F to ensure normal operation and realize the maximum efficiency and effectiveness of printers.

2. The maximum particle of 20 um is allowed to pass through when the solution containing impurities passes through the ink filter, improving the ink quality and the printing resolution of printers.

3. The actual surface area of the ink filter in the filtration process reaches 3.9 cm2. Most of the filtered media remain on the surface of the filter material, so the larger the filter area, the more media can be accommodated, and the longer the life of the filter.

4. It is designed to be used with Pall’s larger capsules in large systems or to be used alone in small systems.

5. With advanced Pall’s premium syringe filter technology, the original PALL part (number LCF-12100) is characterized by a large effective filter area in a compact design, capable of handling a wide range of flow rates without print head starvation.

6. The housing material it uses is optimized for maximum blockage of UV light. The optimal printing condition of printers can be realized because this filter prevents harmful ultraviolet rays from coming into contact with the ink, making sure that the ink is not cured or hardened prematurely. In this way, the ink can be used reasonably and effectively.

7. Due to its high filtration accuracy and large filtration capacity, the cost can be saved effectively. It can be used for a wide range of industries including garment shops, retail, printing shops, advertising companies, and more.
