Damper#11043
Listed printhead match
DX5
- Suitable Printheads
- Epson i3200/4720/DX5/XP600 Printheads
- Ink Tube Connector
- 4 mm*2.8 mm or 5 mm*3 mm
Confirm the part number, connector and ink system for your printer.
Product photos
At a glance
- Ink Type
- AQ, Eco-solvent
- Width * Depth * Height (mm)
- 106×49.7×41.7
- Weight (g)
- 97
- Nozzle Number
- 1440
StockConfirm at quotation
Lead timeConfirm at quotation
Price: Request a quote
Supplier: Johope · Shenzhen, China
Company & contactListed printer models 1
Confirm the part number, connector and ink system before ordering.
Product details

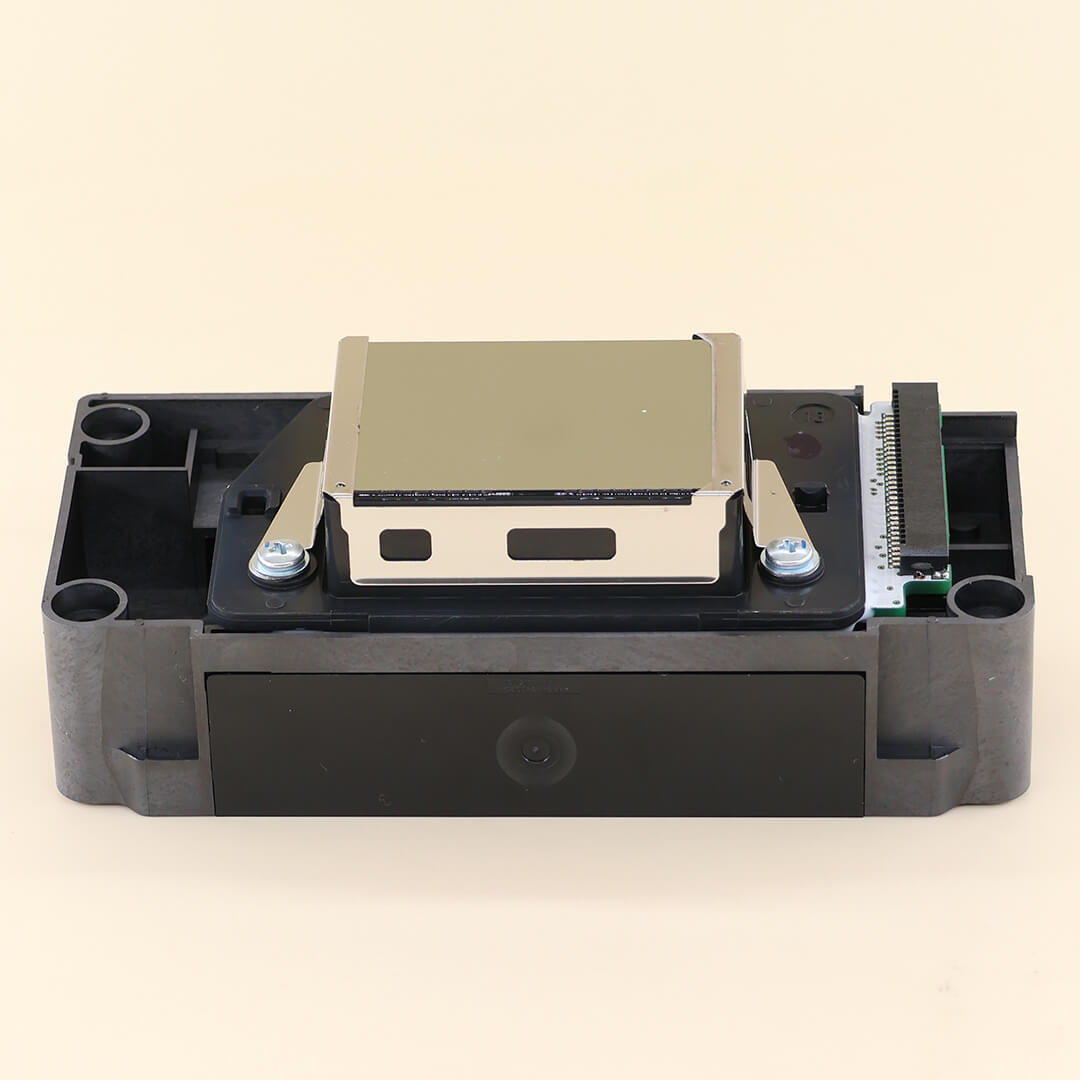

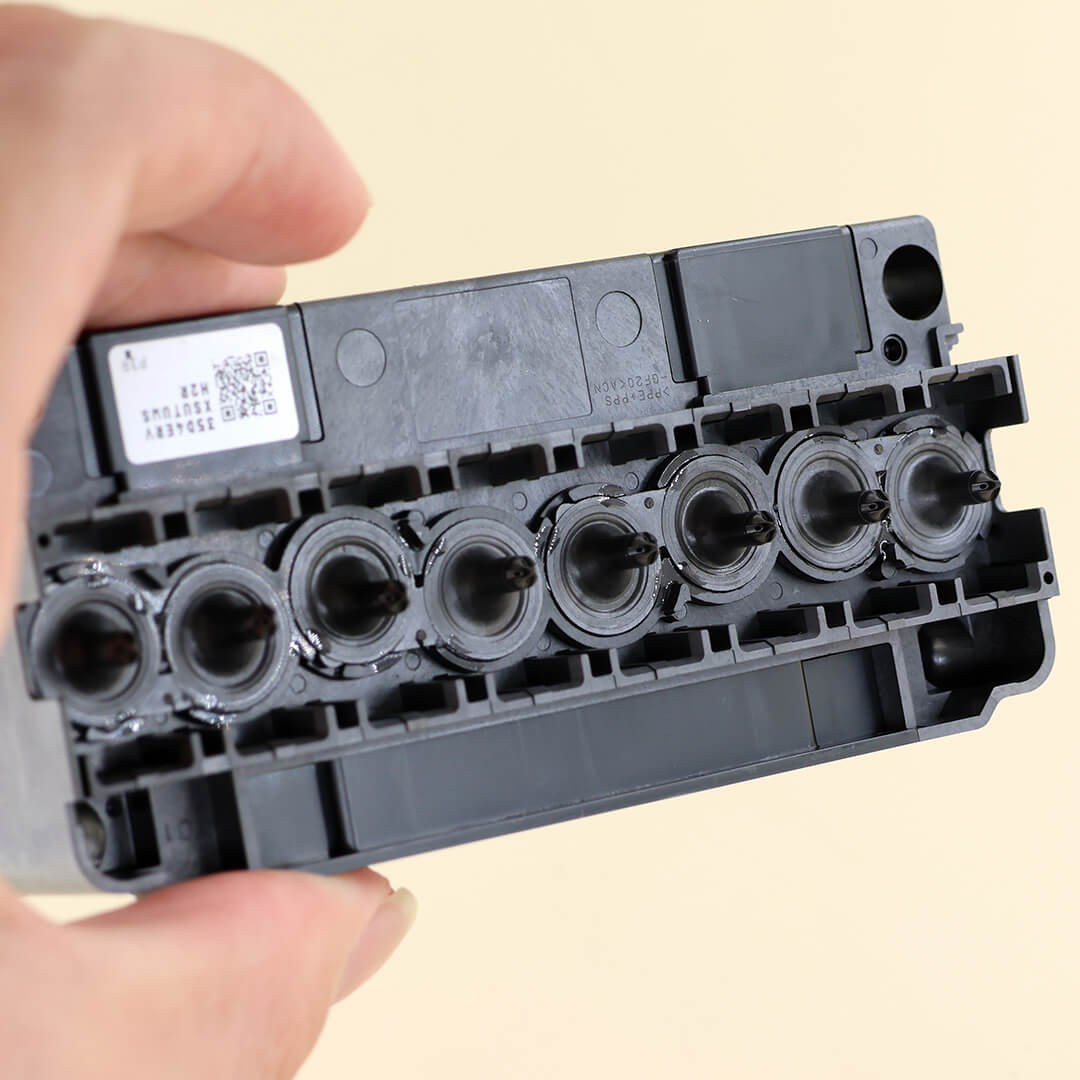

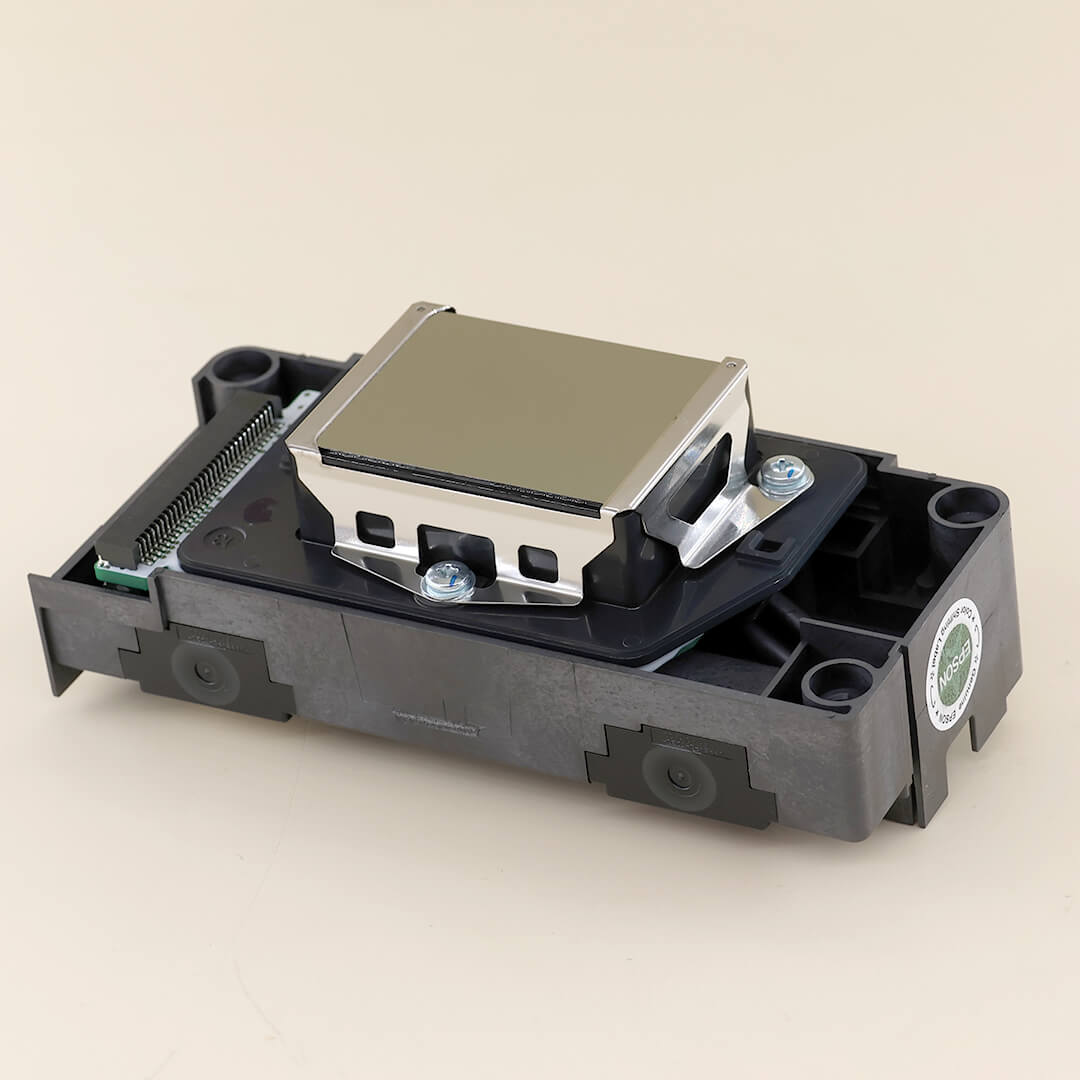

Epson DX5 Printhead (F1440) Description
EPSON F1440 (DX5) is the most popular printhead in the Epson brand. It can perfectly use water-based dye ink, sublimation ink, eco-solvent ink, UV ink, and other ink types. The market support system for this printhead is very complete and mature. Almost all Chinese and Japanese printer brands have printer models with Epson DX5 printheads.
Epson DX5 Printhead (F1440) Specifications
| Model | F1440 |
| Ink Type | AQ, Eco-solvent |
| Width * Depth * Height (mm) | 106×49.7×41.7 |
| Weight (g) | 97 |
| Nozzle Number | 1440 |
| Nozzle Pitch (inch) | 180 |
| Nozzle Rows | 8 |
| Max. Number of Colour Inks | 8 colour (180dpi/colour) |
| Resolution | 180 npi/1 row 360npi/2 rows |
| Effective Printing Width (mm) | 25.4 |
| Jetting Frequency (kHz) | 43 (single), 14.4 (multi) |
| Drop Size (pl) | 3.8-7-14-22 |
| Ink viscosity (mPa·s) | 4~5 |
| Brand | Epson |
|---|---|
| Ink Compatibility | Solvent and Eco-solvent Based |
Printer Compatibility
|
Epson DX5 Series Eco Solvent Printhead |
|
| Printhead Model | Suitable Machines |
|
F186000 unlocked |
Epson Stylus Photo R2000 /R1900/R2880/R2100
Mutoh 1604, Mimaki JV33 Galexy DX5 with red color main board Chinese DX5 machine before 2013 |
| F186000 1st locked | Chinese DX5 machine |
| F186000 2nd locked | Chinese DX5 machine |
| F186000 3rd locked | Chinese DX5 machine |
| F186000 4th locked | Chinese DX5 machine |
| F186000 authorised F1440 | Chinese DX5 machines widely used |
| Mutoh DX5 DF-49684 | Mutoh 1604/1204 |
| Mimaki DX5 MP-M007947 | Mimaki JV33/JV5/CJV30 |
