Price: Request a quote
Supplier: Johope · Shenzhen, China
Company & contactConfirm the part number, connector and ink system before ordering.

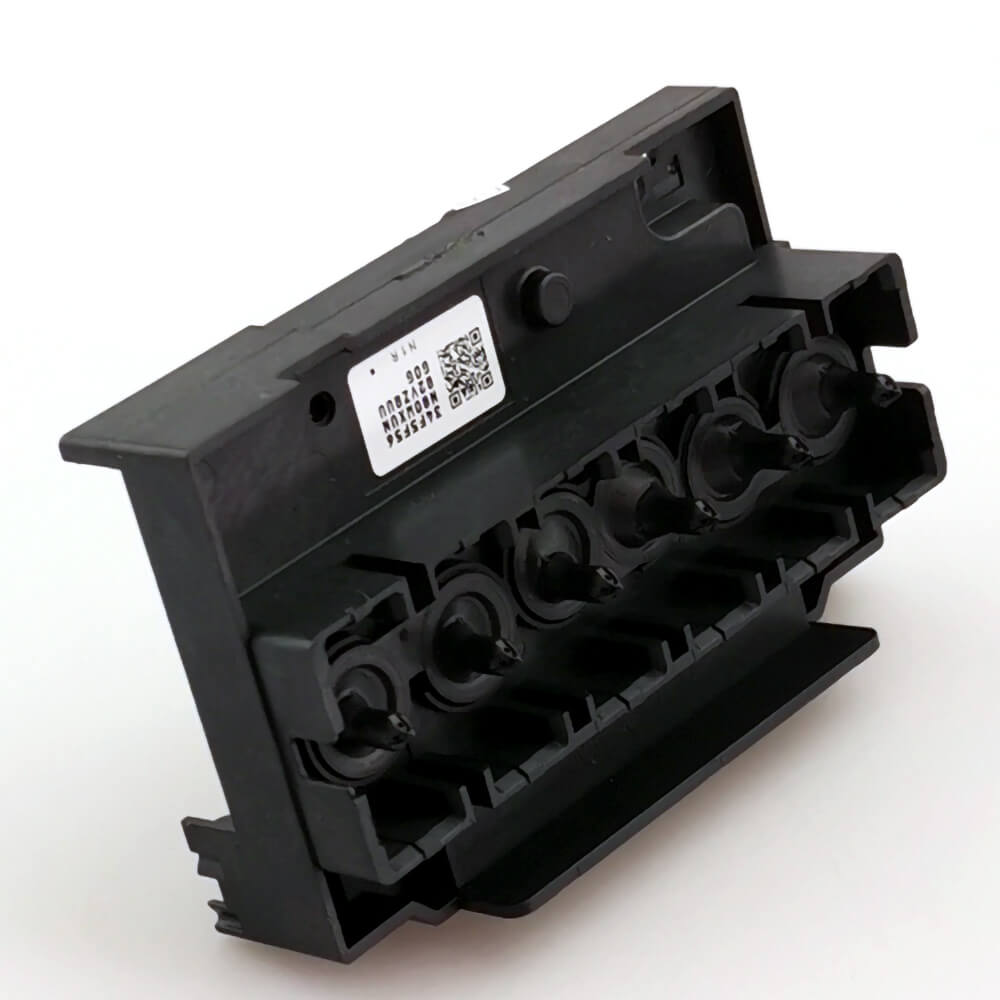

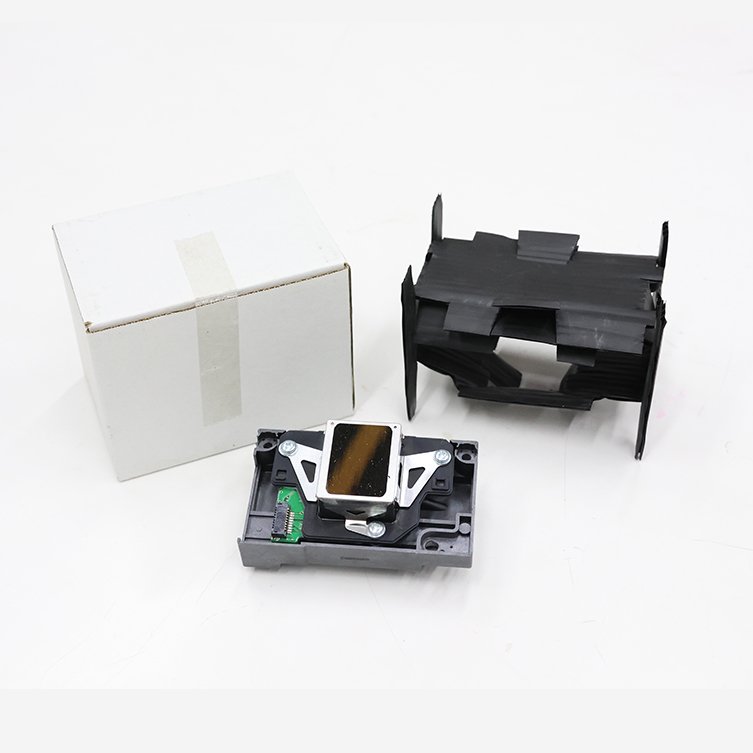

The Epson L1800 printhead (F173000/F173050/F173060/F173070/F173080/F173090) is compatible with Epson Stylus Photo Series printers, including the 1390, 1400, 1410, 1430, L1800, 1500W, R260, R265, R270, R330, R360, R380, and R390, as well as a wide range of DTF printers. Please note that this Epson L1800 DTF print head is not interchangeable with the Epson L805 print head.
Alternative names: Epson L1800 DTF printhead, Epson 1400 print head, Epson 1390 print head, Epson 1430 print head
| Type | On-demand inkjet (Piezoelectric) |
| Number of nozzles | 1600 |
| Nozzle configuration | 90 nozzles black, 90 nozzles per color |
| Minimum droplet size | 1.5pl, with variable-sized droplet technology |
| Ink type | Aqueous ink, UV |
| Printing resolution | 5760*1440 dpi |
| Brand | Epson |
|---|---|

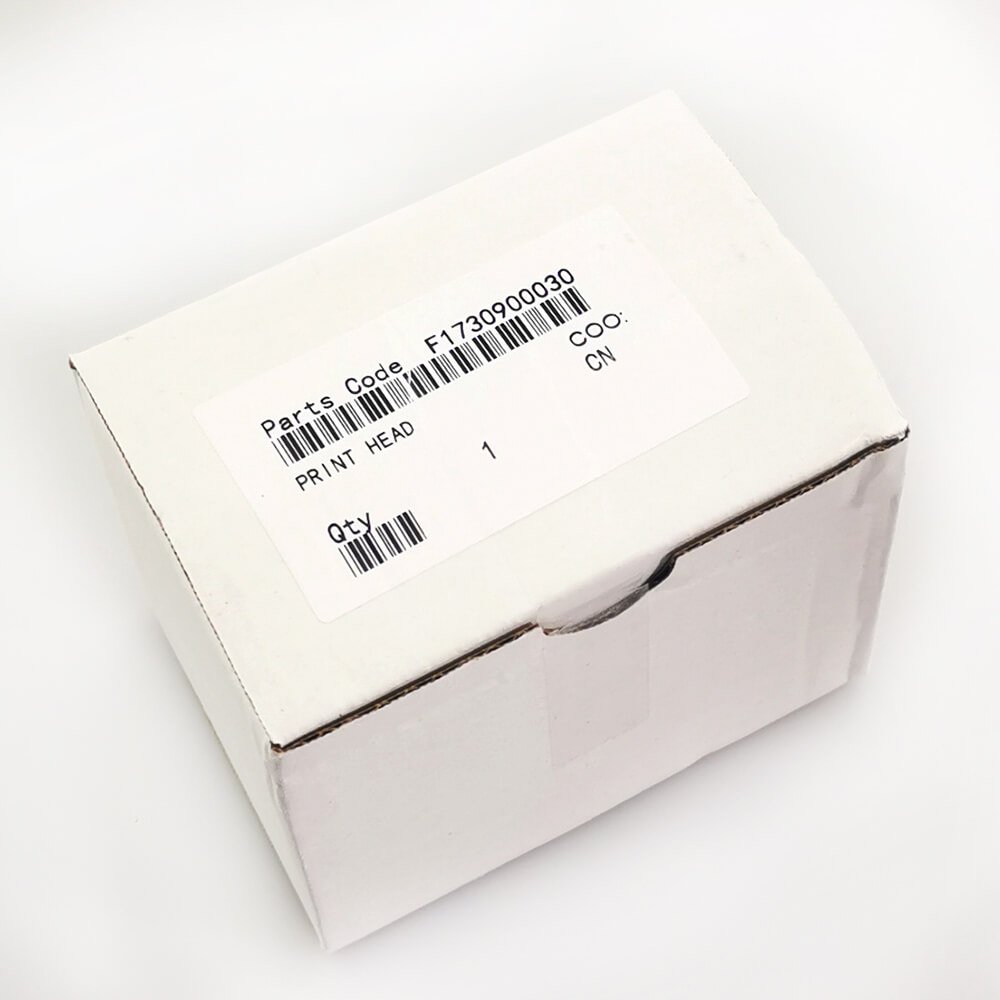

| Product Name | F173000 |
| Ink Type (additional source detail) | Aqueous ink |
| Type (additional source detail) | PrecisionCore MicroTFP printhead |
Epson L1800 print head replacement or Epson Stylus Photo 1400 print head replacement
If you have tried all cleaning operations and ink extraction procedures but still cannot solve the print head's clogging, then you need to replace the print head.
1. Remove the clips securing the print head.
2. Unscrew the three screws fixing the print head.
3. Take out the print head.
4. Disconnect the print head's ribbon cable.
Note to check if the ribbon cable has any ink contamination, and do not disconnect the encoder strip's ribbon cable after installing the new print head.
5. Secure it with the screws and clips.
6. Power on the machine and observe its self-check process.
If the self-check passes and the nozzle check page is good, the Epson L1800 print head replacement is successfully completed.
Explore parts with a listed printhead match or a specific printer model in common. Confirm the part number and your machine’s configuration before ordering.
Each card shows its listed printhead or printer-model connection. Confirm dimensions, connectors and ink compatibility for your configuration.
Colorsun A3 L1800 DTF · Colorsun A3 L1800C DTF · Colorsun A3 R1390 DTF · Epson D600 · Epson L1800 · Epson NX200 · Epson Stylus Photo 1390 · Epson Stylus Photo 1400 · Epson Stylus Photo 1410 · Epson Stylus Photo 1430 · Yuxunda XYD-L1800
Confirm the part number, connector and ink system for your printer.
Colorsun A3 L1800 DTF · Colorsun A3 L1800C DTF · Colorsun A3 R1390 DTF · Epson D600 · Epson L1800 · Epson NX200 · Epson Stylus Photo 1390 · Epson Stylus Photo 1400 · Epson Stylus Photo 1410 · Epson Stylus Photo 1430 · Yuxunda XYD-L1800
Confirm the part number, connector and ink system for your printer.
Colorsun A3 L1800 DTF · Colorsun A3 L1800C DTF · Colorsun A3 R1390 DTF · Epson D600 · Epson L1800 · Epson NX200 · Epson Stylus Photo 1390 · Epson Stylus Photo 1400 · Epson Stylus Photo 1410 · Epson Stylus Photo 1430 · Yuxunda XYD-L1800
Confirm the part number, connector and ink system for your printer.
Colorsun A3 L1800 DTF · Colorsun A3 L1800C DTF · Colorsun A3 R1390 DTF · Epson D600 · Epson L1800 · Epson NX200 · Epson Stylus Photo 1390 · Epson Stylus Photo 1400 · Epson Stylus Photo 1410 · Epson Stylus Photo 1430 · Yuxunda XYD-L1800
Confirm the part number, connector and ink system for your printer.
ACHI A3 UV Printer · Colorsun A3 L1800 DTF · Colorsun A3 L1800C DTF · Colorsun A3 R1390 DTF · Epson D600 · Epson L1800 · Epson NX200 · Epson Stylus Photo 1390 · Epson Stylus Photo 1400 · Epson Stylus Photo 1430 · Epson Stylus Photo 1500W · Epson Stylus Photo R260 · Epson Stylus Photo R265 · Epson Stylus Photo R270 · Epson Stylus Photo R330 · Epson Stylus Photo R360 · Epson Stylus Photo R380 · Epson Stylus Photo R390 · Epson Stylus Photo RX560 · Epson Stylus Photo RX580 · Epson Stylus Photo RX585 · Epson Stylus Photo RX590 · Yuxunda XYD-L1800
Confirm the part number, connector and ink system for your printer.
Epson L1800
Confirm the part number, connector and ink system for your printer.
Epson Stylus Photo 1390 · Epson Stylus Photo 1400
Confirm the part number, connector and ink system for your printer.
No matching association in the current collection. This does not determine compatibility.
Ask Johope to check your configurationEpson L1800 print head replacement or Epson Stylus Photo 1400 print head replacement
If you have tried all cleaning operations and ink extraction procedures but still cannot solve the print head's clogging, then you need to replace the print head.
1. Remove the clips securing the print head.
2. Unscrew the three screws fixing the print head.
3. Take out the print head.
4. Disconnect the print head's ribbon cable.
Note to check if the ribbon cable has any ink contamination, and do not disconnect the encoder strip's ribbon cable after installing the new print head.
5. Secure it with the screws and clips.
6. Power on the machine and observe its self-check process.
If the self-check passes and the nozzle check page is good, the Epson L1800 print head replacement is successfully completed.
https://youtu.be/u0YHD1rTAfA
Shenzhen Johope Technology Co., Limited
Johope Technology works in research and development, manufacturing, sales, and service for wide-format inkjet printer parts.
Explore our company profile (opens a new tab)Company figures published on Johope’s website.
Photos from our company profile. Product availability is confirmed at quotation.
Request a quoteEnquire about Epson L1800 Print Head Epson 1390 Printhead (F173000).
Share your contact details and tell us what you need. Your printhead and selected accessories will be included in the enquiry.
