Printer Board Kits#12578
Listed printhead match
I3200
- Type
- Board Kit
Confirm the part number, connector and ink system for your printer.
Product photos
Video opens here when selected. Watch on YouTube (opens a new tab)
At a glance
- Type
- PrecisionCore MicroTFP printhead
- Number of nozzles
- 3200
- Nozzle pitch/nozzle row
- 1/300 inch
- Nozzle rows
- 8 rows
StockConfirm at quotation
Lead timeConfirm at quotation
Price: Request a quote
Supplier: Johope · Shenzhen, China
Company & contactListed printer models 9
View all 9 modelsShow first 6 models
Confirm the part number, connector and ink system before ordering.
Product details

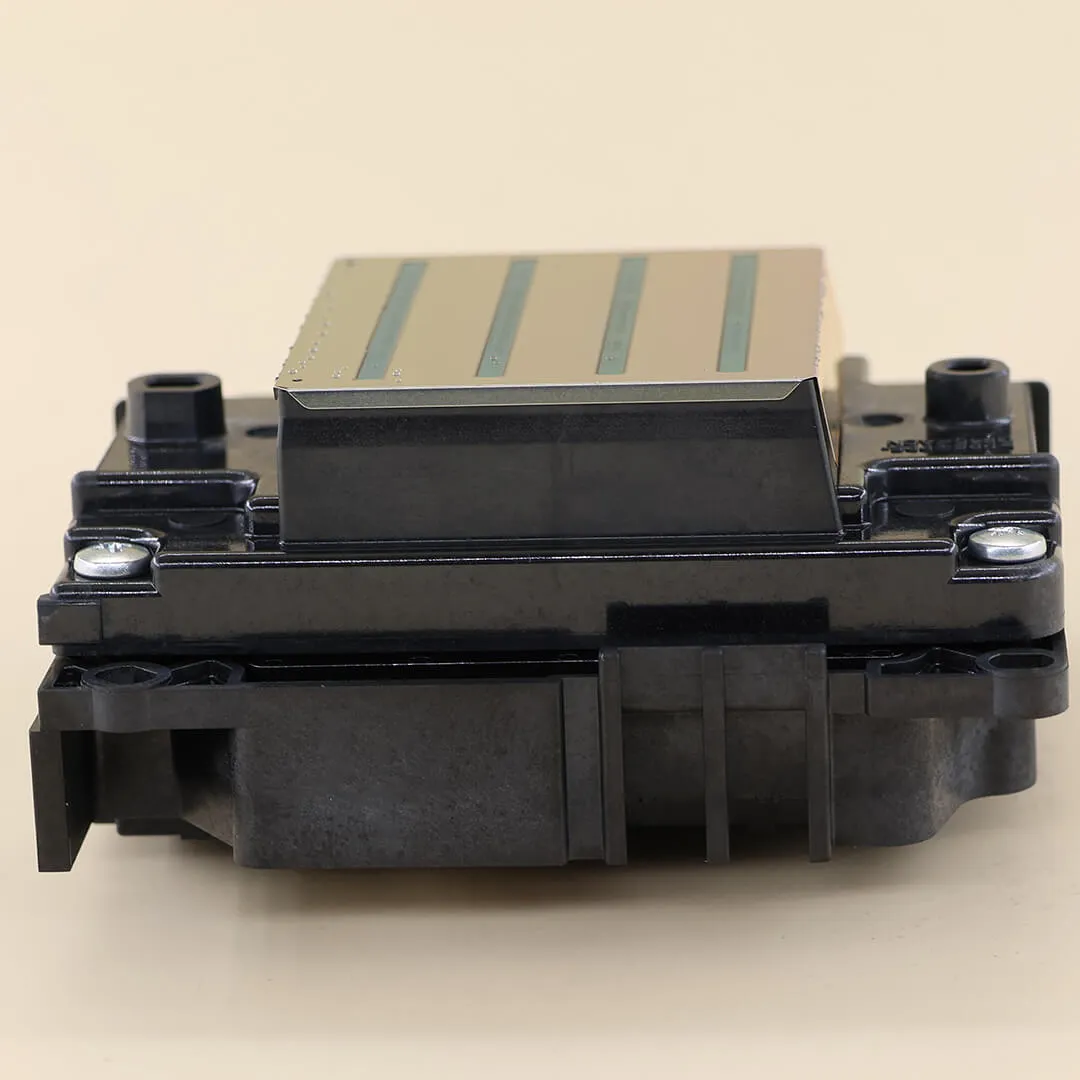

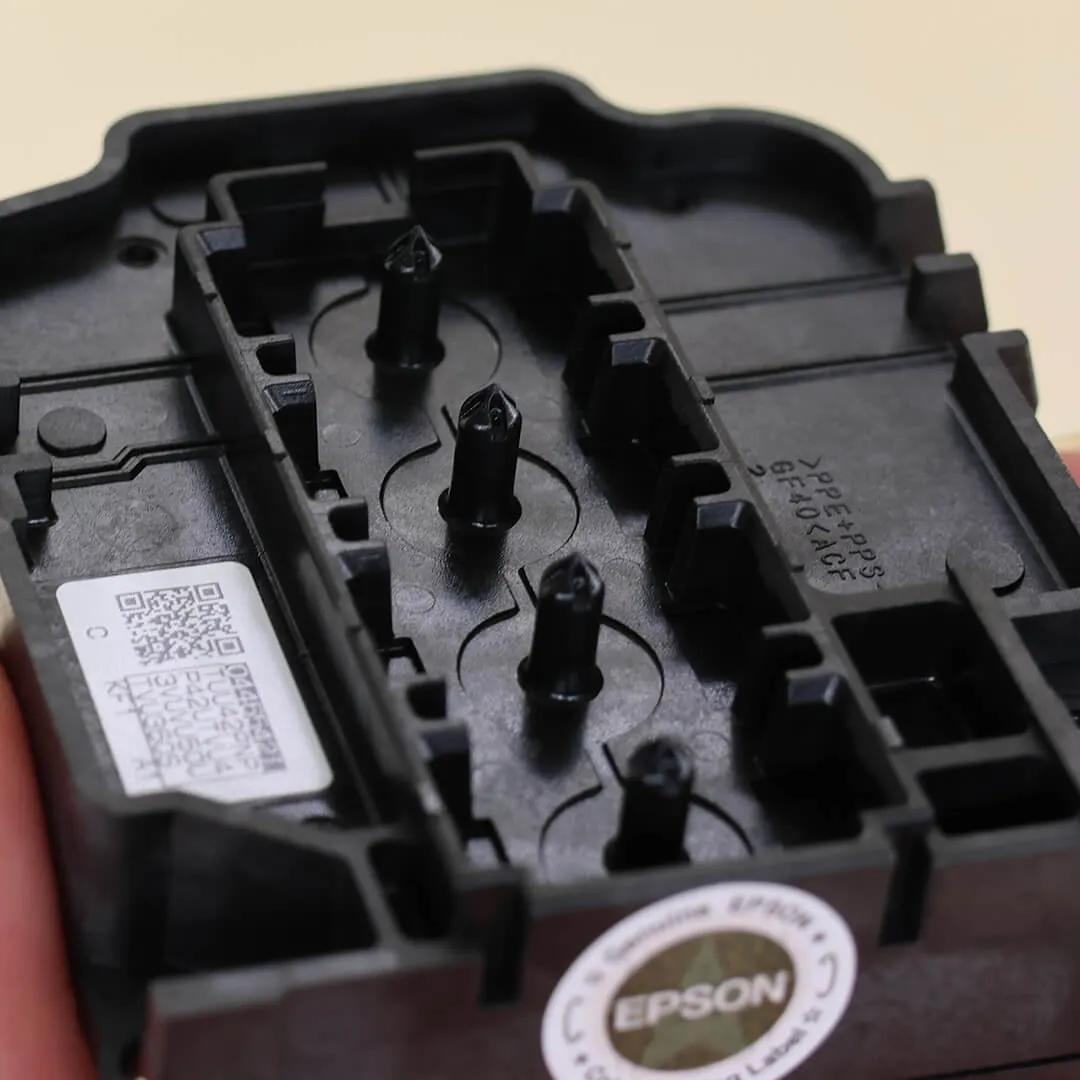

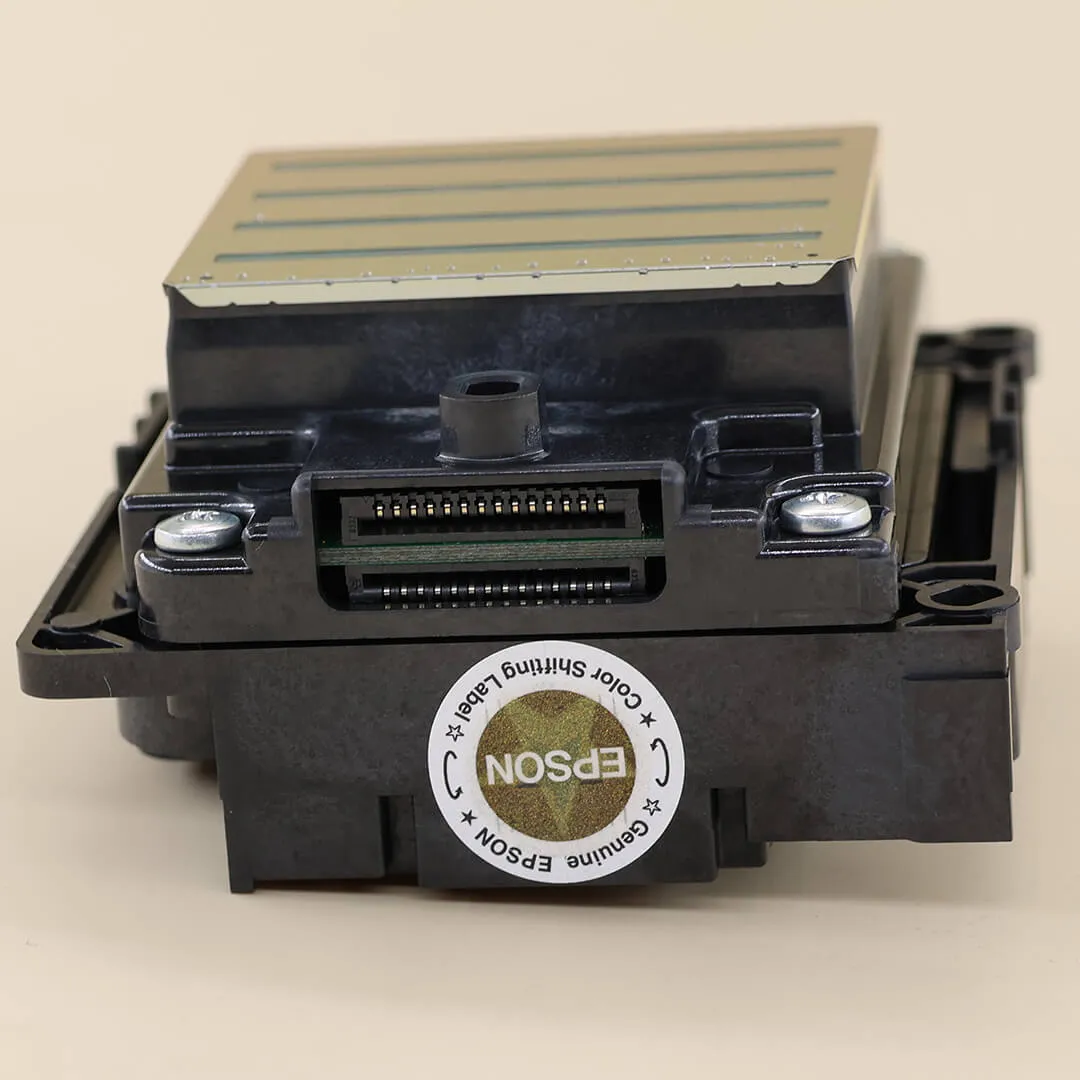

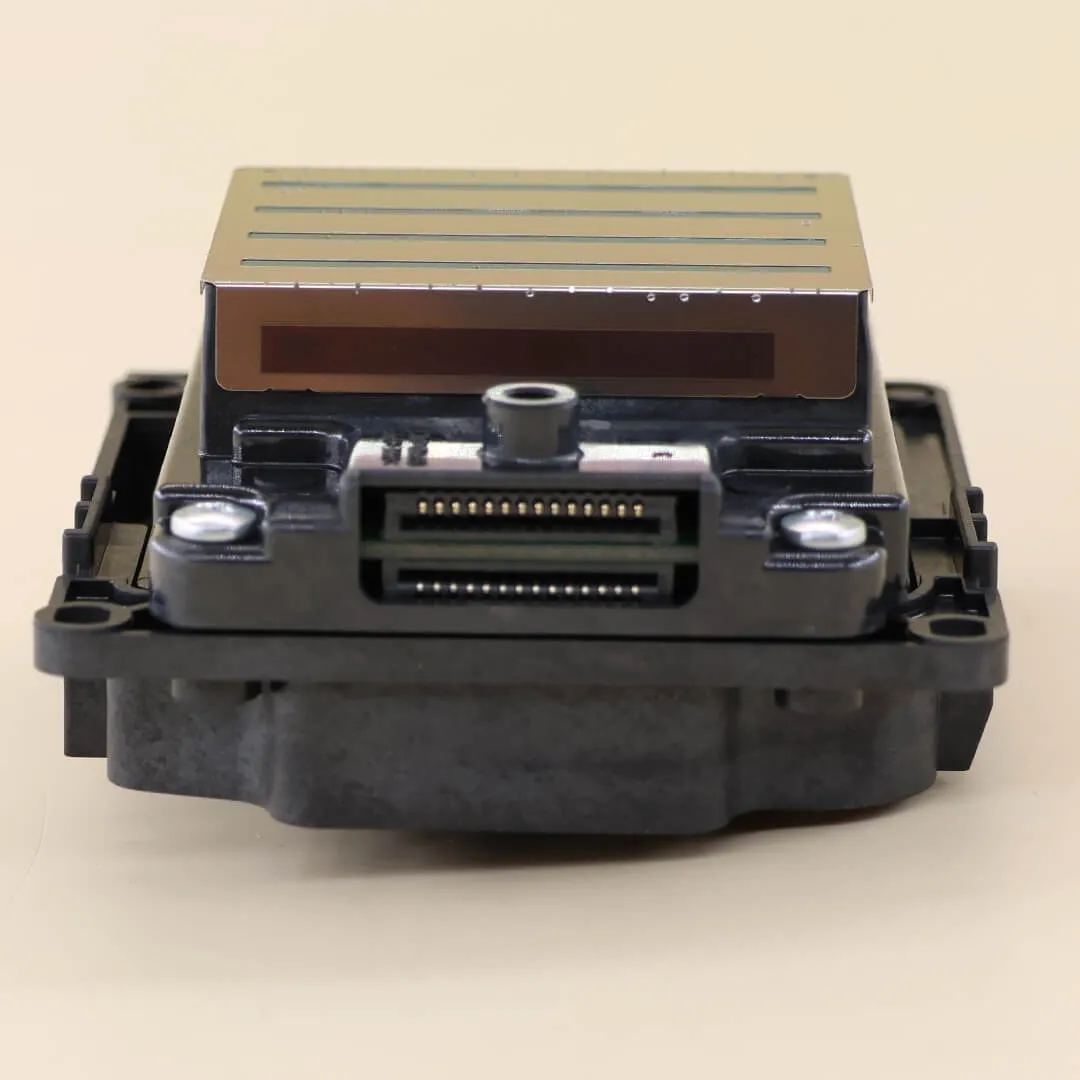

Epson i3200 E1 Printhead Description
The Epson i3200-E1 is a genuine Epson PrecisionCore MicroTFP eco-solvent printhead designed for high-productivity wide-format printing. Featuring 3,200 nozzles, 8-row nozzle configuration, 600 dpi native resolution, and 6–12.3pl Variable-Sized Droplet Technology (VSDT), it delivers high precision, smooth color transitions, and stable performance.
Manufactured in Japan with Epson’s MEMS technology, the i3200-E1 is optimized for eco-solvent inks and provides excellent outdoor durability. It is widely used for signage, banners, vehicle wraps, posters, and advertising graphics, offering an ideal balance of print quality, speed, and reliability for professional wide-format printers.
Epson i3200 E1 Printhead Specification
| Type | PrecisionCore MicroTFP printhead | |
| Number of nozzles | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of color inks | 4 colors | |
| Effective print width | 33.8 mm (1.33 inches) | |
| WidthxDepthxHeight | 69.1 x 59.4 x 35.6 mm | |
| Weight | 82 g | |
|
Droplet ejection performance |
Binary | 6 pl at 43.2 kHz |
| 3-level grayscale | 6.3, 12.3 pl at 21.6 kHz | |
| 4-level grayscale | 3.8, 5.5, 8.7 pl at 21.6 kHz | |
| Viscosity range | 3-4 mPa･s | |
| Ink type | Eco Solvent | |
| Brand | Epson |
|---|---|
| Model | i3200 E1 |
Epson i3200 E1 Printhead Applications
1. Advertising Graphics—Output on photo paper, PP adhesive vinyl, backlit film, glossy paper, and other advertising materials.
2. Outdoor Advertising—Uses solvent-based ink with excellent weather resistance, suitable for outdoor displays.
3. Commercial Label Printing—Roll-to-roll label printing for product packaging and commercial labeling applications.
4. Soft Packaging Printing—Compatible with solvent-based materials such as PVC film, PET film, and transparent film.
| Variant | Ink Type | Typical Applications |
| i3200-A1 | Water-based (Aqueous) | DTF, dye-sublimation, textile, and Direct-to-Garment (DTG) printing |
| i3200-A1 HD | Water-based, high-density | High-density DTF and applications using higher-pigment-density formulations |
| i3200-E1 | Eco-solvent | Eco-solvent wide-format printing and outdoor graphics |
| i3200-U1 | UV-curable | UV flatbed printing, UV roll-to-roll printing, UV DTF, rigid substrates, and signage |
