Konica 1024iMAE-C Print Head


Basic Info.

  • Brand: Konica
  • Technology: Piezo Drop On-Demand
  • Native Resolution: 360 dpi
  •  Cal. Droplet Size: 14 pico litre
  •  Max. Drops in Greyscale: 8 drops
  •  Tot. Amount of Nozzles: 1024 (256 nozzles per line)
  •  Print Width: 72 mm
  •  Firing Frequency: 27 kHz
  •  Ink Compatibility: Water Based Inks

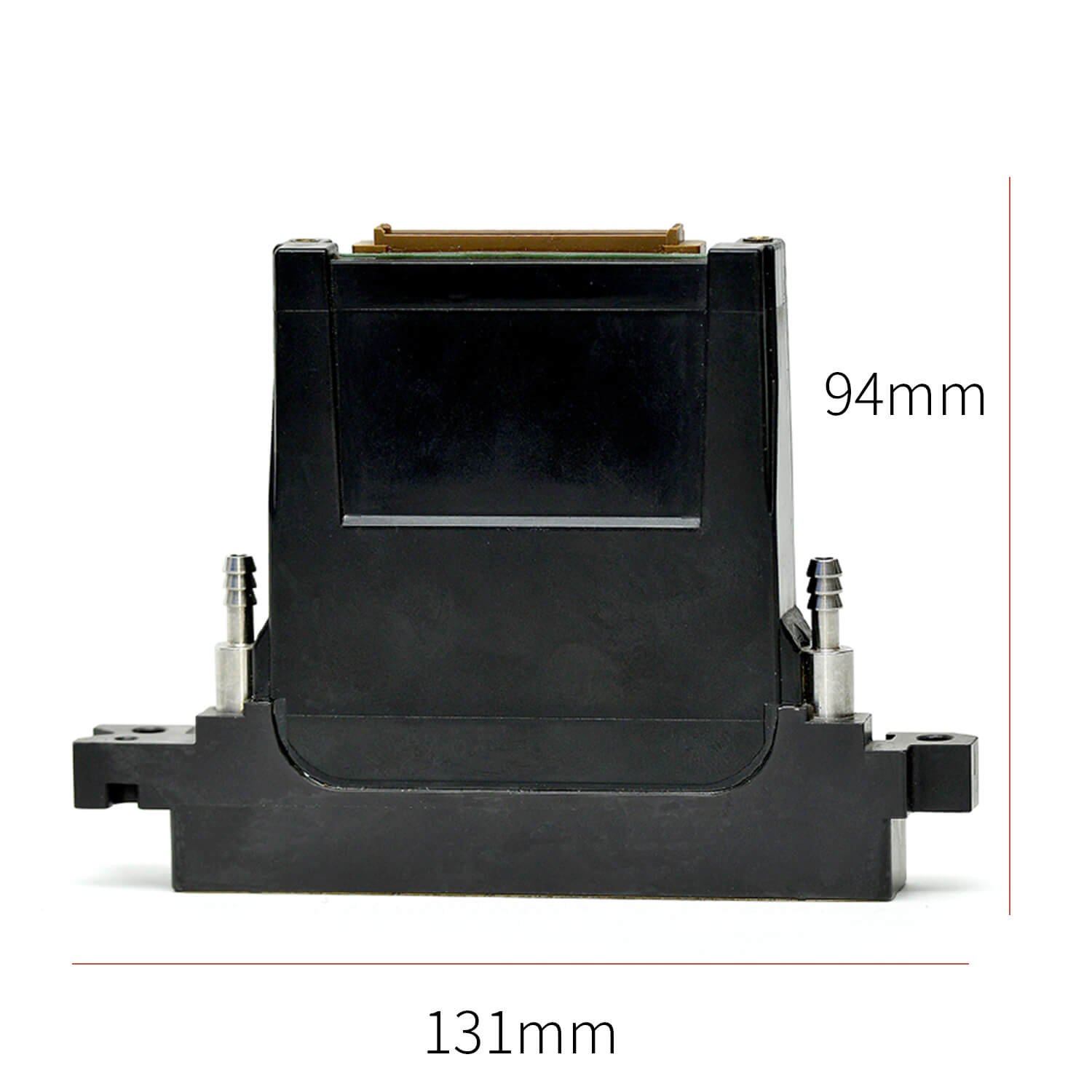

  •  Dimensions: W131mm x D18mm x H94mm
  •  Weight: 150g

*For more information about this printer part, you can send us an inquiry.

Printer Compatibility

Product Details

1. The Konica Minolta KM1024i MAE-C printhead is a robust, shear mode, piezo on-demand printhead featuring an All-nozzle Independent Drive System with a Multi-line Structure. In contrast with the existing 3-cycle system drive, an independent drive system that enables simultaneous emission from all 1024 nozzles has been adopted.

2. The high-density structure featuring 4 lines of 256 nozzles aligned with high precision enhances positioning accuracy to realize high-definition print quality. The Konica Minolta KM1024i MAE-C printhead offers a Maximum Drive Frequency of 27kHz, which makes it the ideal inkjet printhead for development of single-pass system inkjet printers capable of high-speed printing.


Yes.We are wide format printer parts manfacturer and print heads supplier.and ink pump is our main product

Each ink pump has been spot-checked by a superior leader. You are also welcome to visit the company.

We accept the T/T transfer, Western Union, PayPal. Within 2-3 workdays after full payment is received.

Please feel free to contact us, we have the complete range of printer spare parts.
