Kyocera KJ4A-0300-Q06DS-WIT1 Print Head

Share:

Basic Info.

  • Brand: Kyocera
  • Model: KJ4A-0300-Q06DS-WIT1
  • Ink Type: UV ink
  • Dimensions: 200 × 36 × 68.8mm
  • Original or Not: Original
  • New or Used: Brand New
  • Warranty Policy: No Warranty
  • Country of origin: Japan

*For more information about this printer part, you can send us an inquiry.

Printer Compatibility
Delivery:
Payment:

Product Details

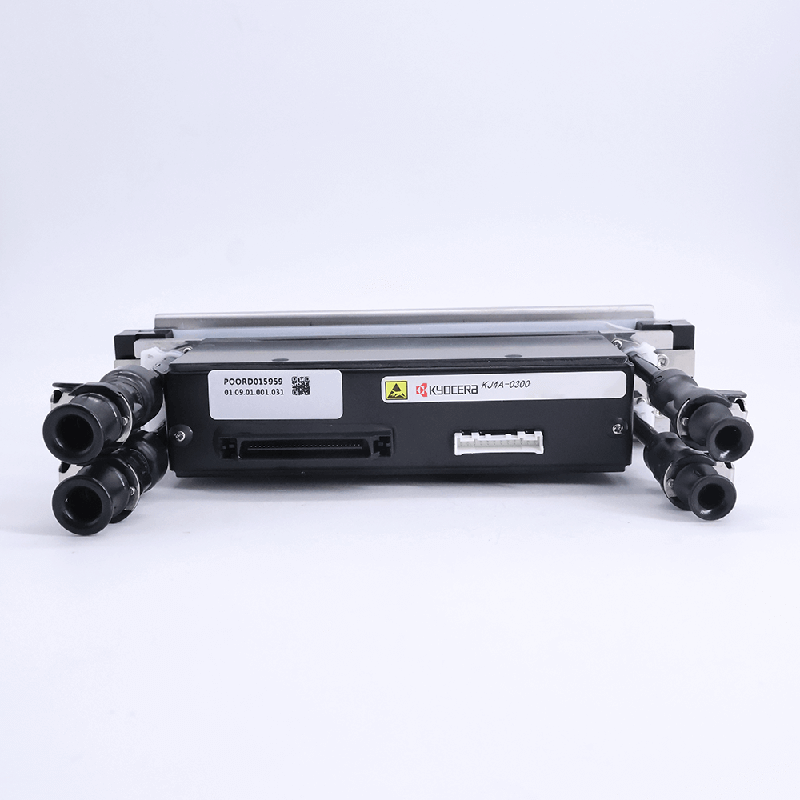

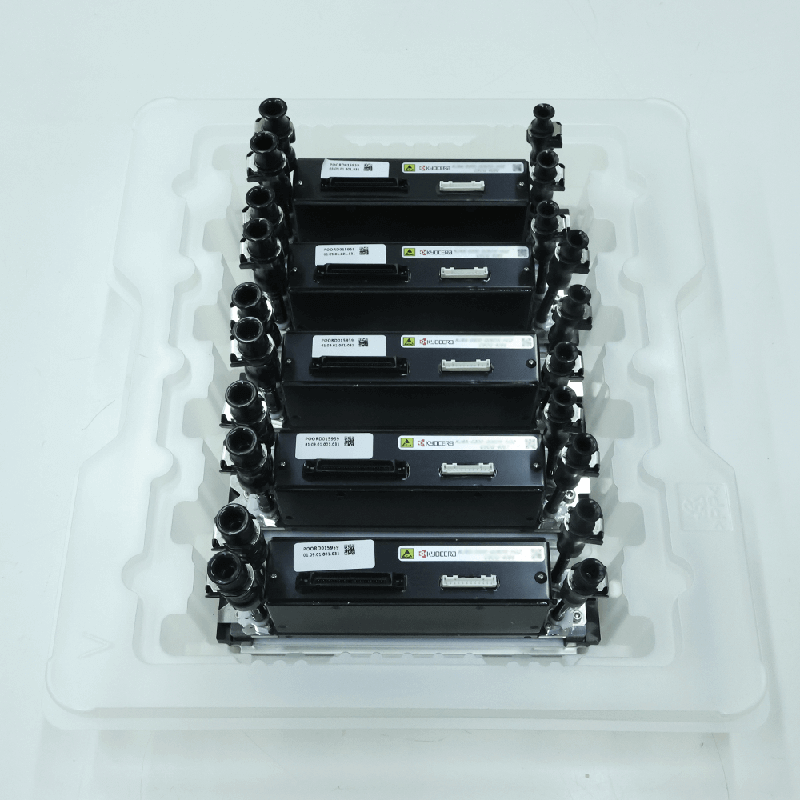

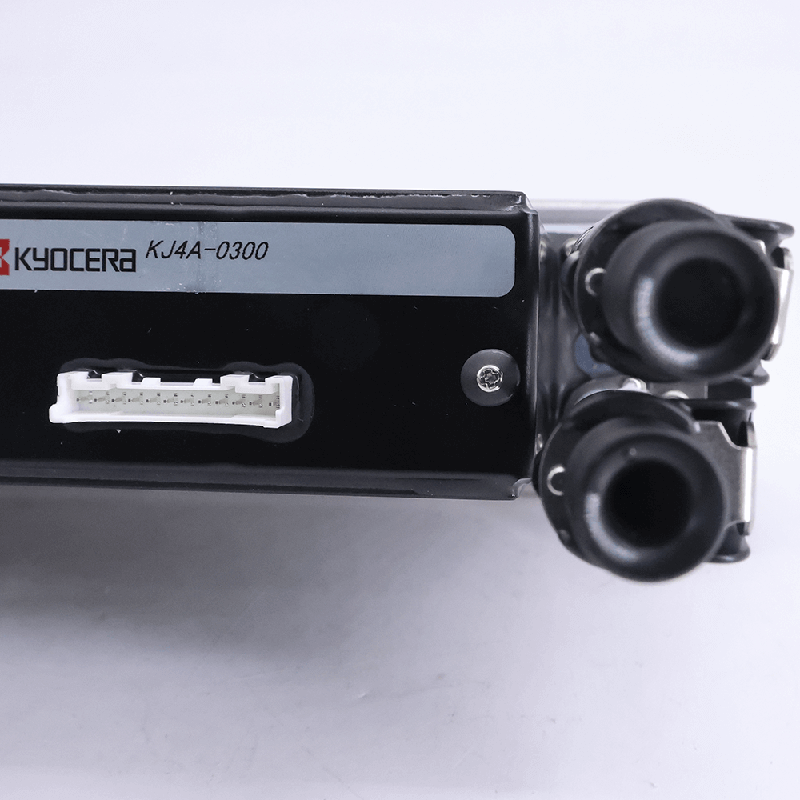

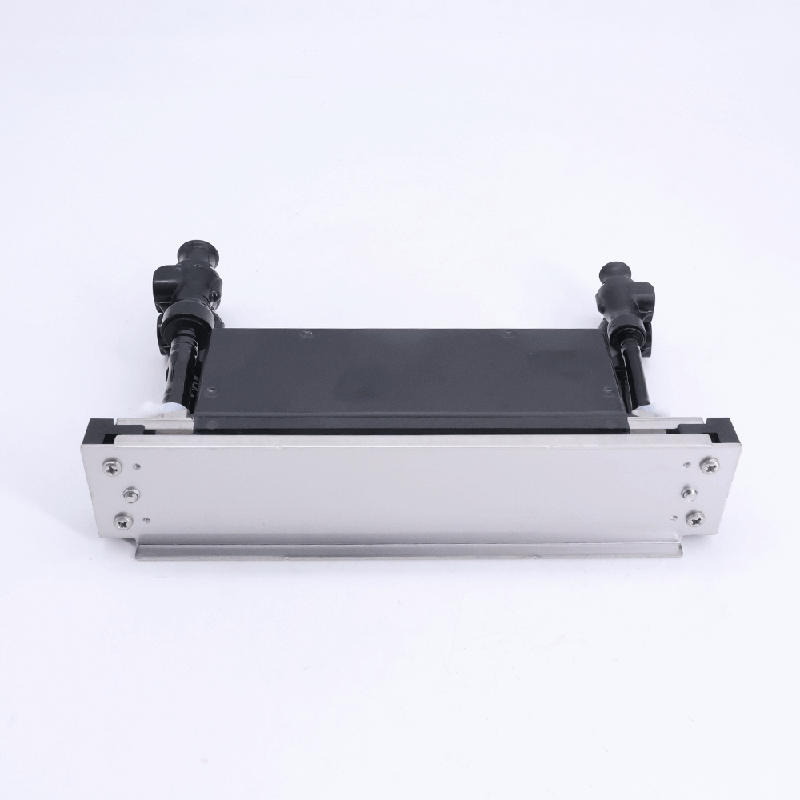

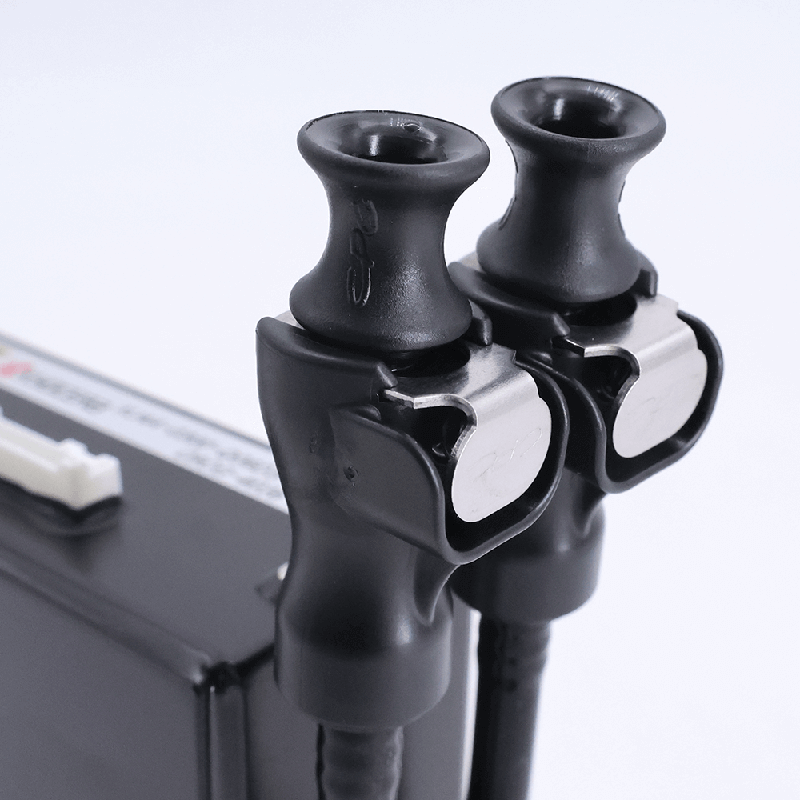

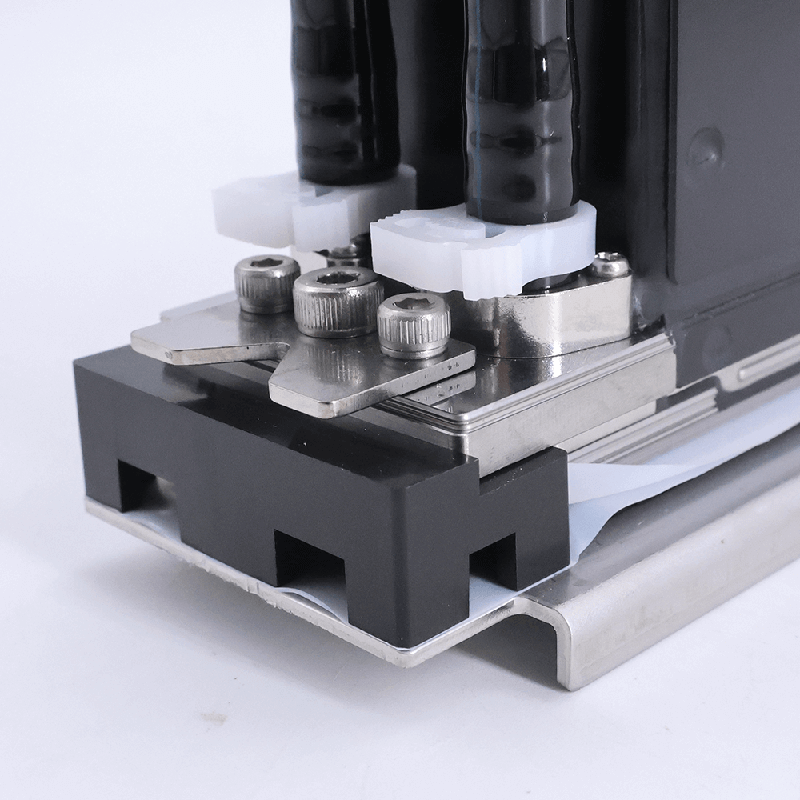

Kyocera KJ4A-0300 Printhead Description

Kyocera KJ4A-0300 printhead is designed for high-speed single-pass applications with printers using aqueous ink. The printhead has 2,656 built-in nozzles that are arranged across a 112.35 mm wide print swathe. It features a maximum drive frequency of 30kHz, achieving high-quality output with a small drop volume of 4pl at 158 m/min.

The printhead has 2,656 built-in nozzles and can eject about 150 million dots per second. To increase the speed, the printhead mainly adopts measures such as increasing the driving frequency, improving the nozzle shape, and adjusting the waterproof film material.

Kyocera KJ4A-0300 Printhead Specifications

Number of Nozzles2656 (2558)
Effective Print Width (mm)112.35
InkUV
Maximum Drive Frequency (kHz)30
Resolution (dpi)600dpi*600dpi
Print Speed *1 (m/min)76.2


Print Speed*1 (pl)

Minimum4
Maximum14
Nozzle RecirculationNo
Width*Length*Height (mm)200*36*68.8
Recommended Ink Viscosity*2 (mPa * s)6.0~7.0



Printer Compatibility

Handtop HT2500UV HR8
