Kyocera KJ4A-AA Printhead KJ4A-AA06ATZ-DL1V-4A
Model: KJ4A-AA06ATZ-DL1V-4A

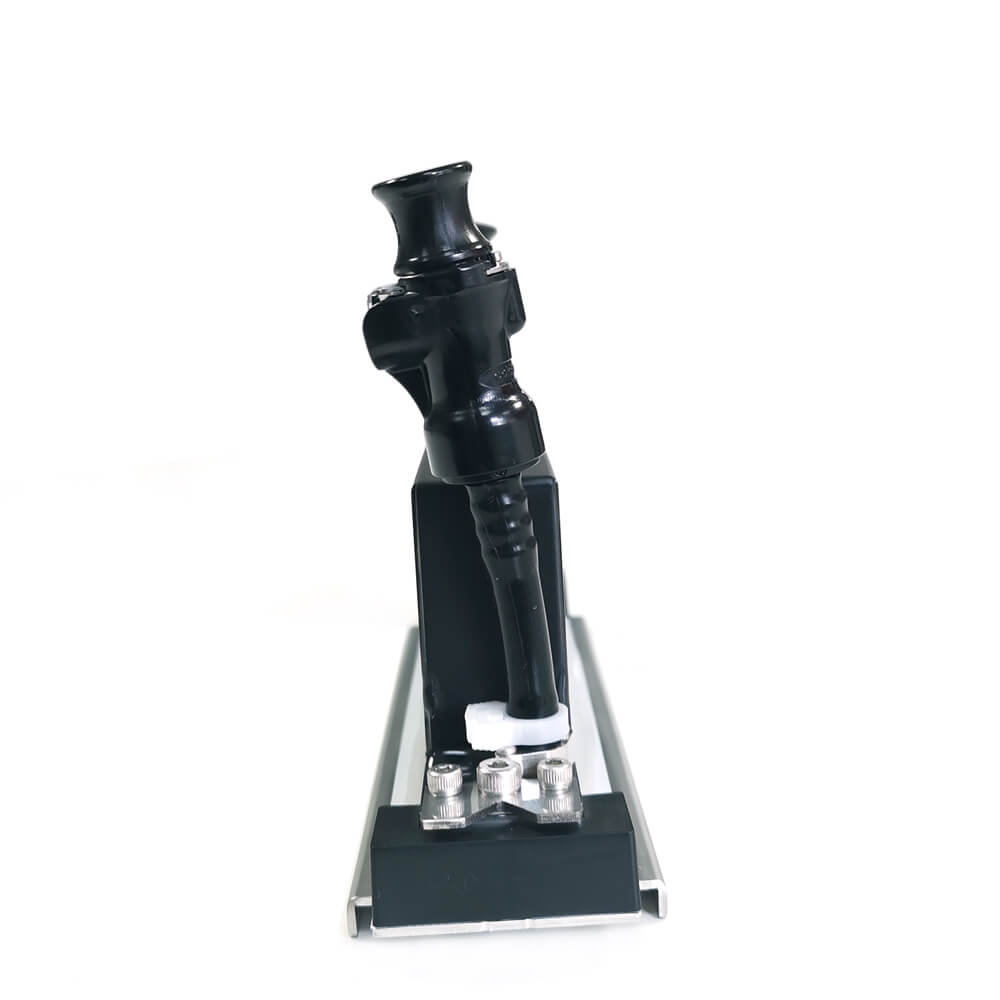

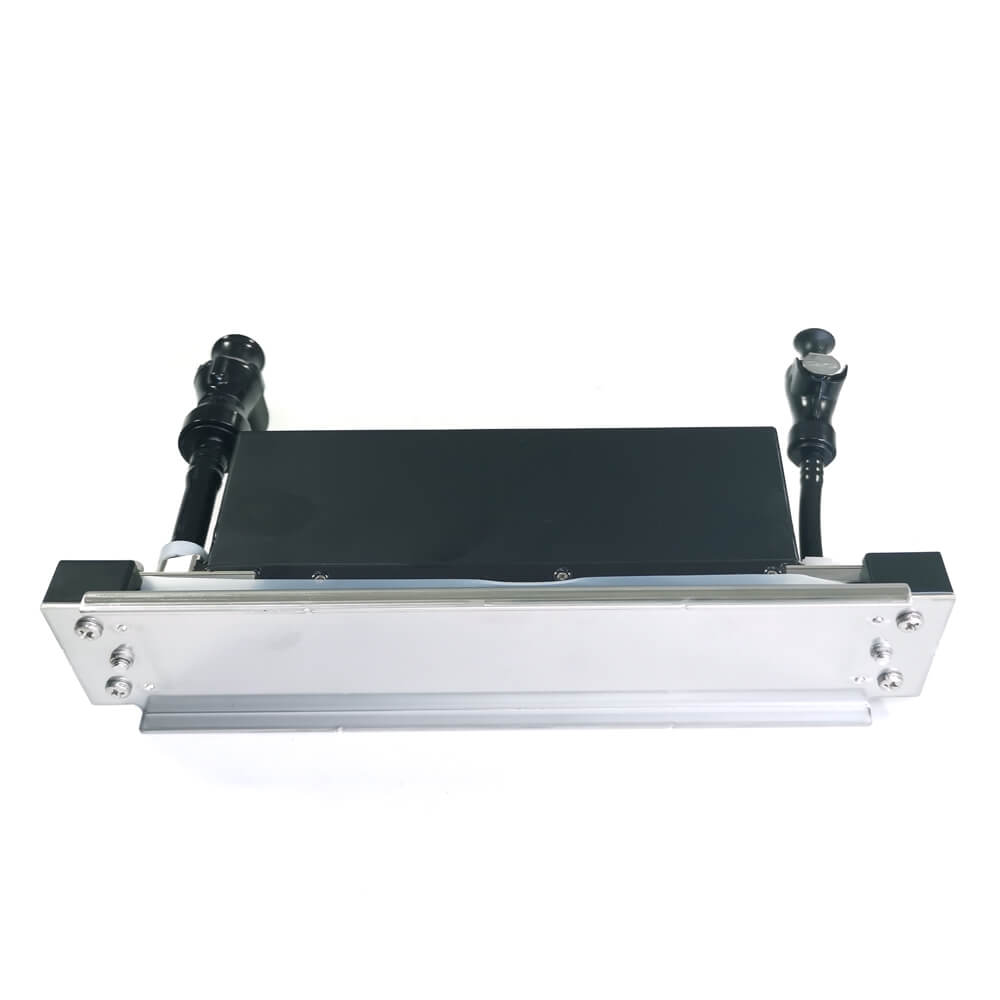

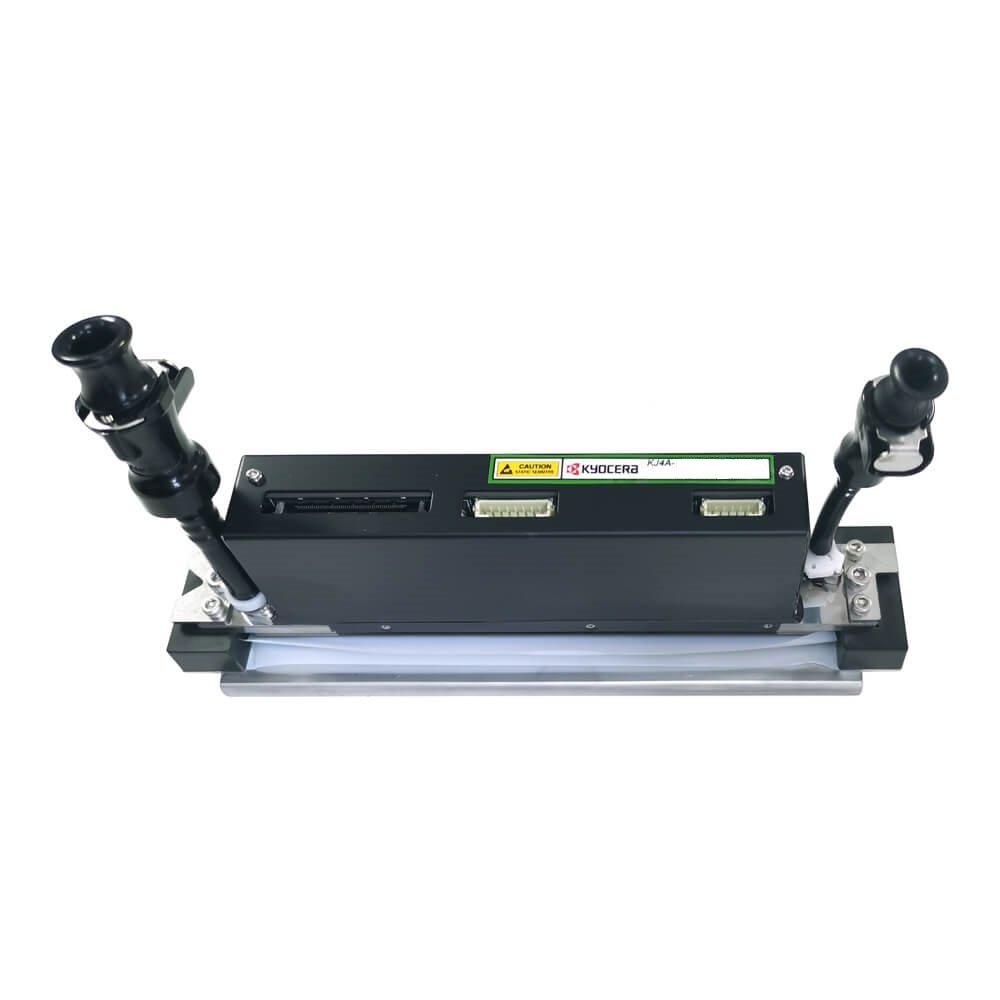

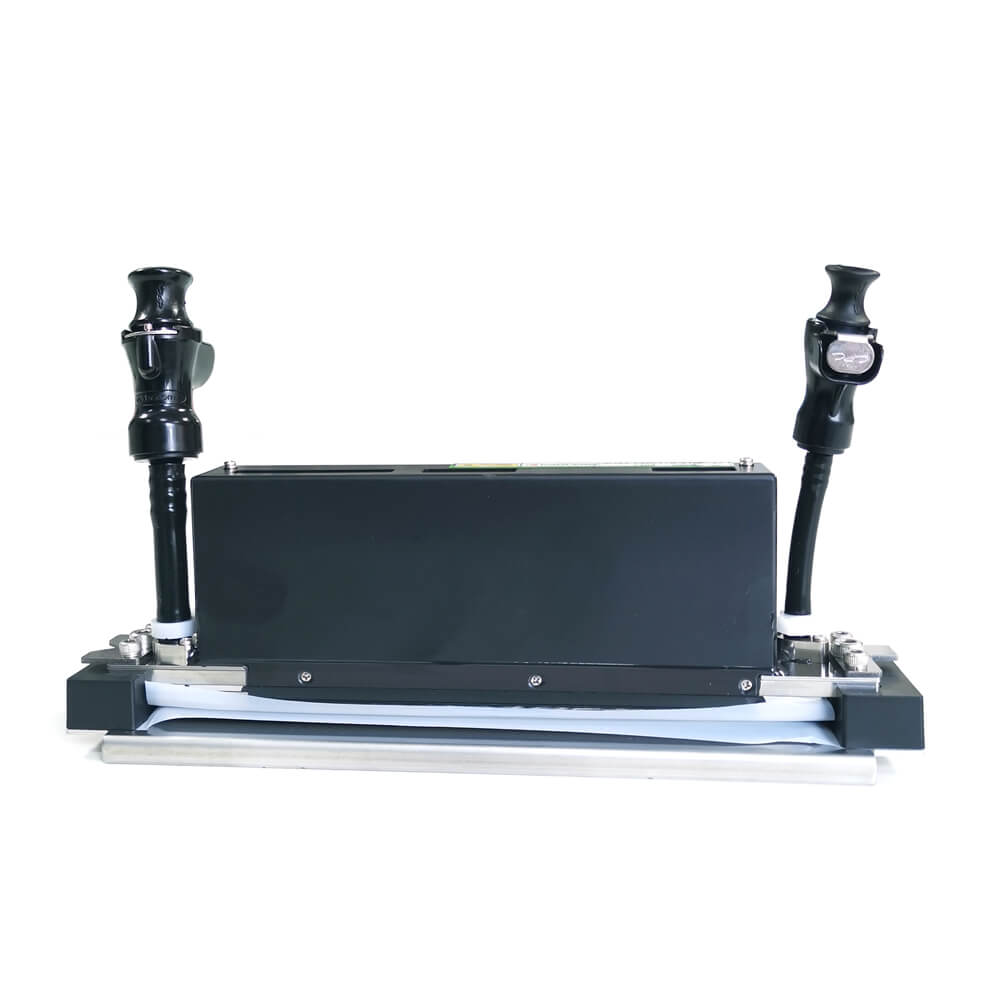

Product photos
At a glance
- Number of Nozzles
- 2656 (2558)
- Effective Print Width (mm)
- 108.25
- Ink
- UV
- Maximum Drive Frequency (kHz)
- 20
Price: Request a quote
Supplier: Johope · Shenzhen, China
Company & contactListed printer models 3
Confirm the part number, connector and ink system before ordering.
Product details
Kyocera KJ4A-AA Printhead Description
The Kyocera KJ4A-AA06ATZ-DL1V-4A is an advanced UV-compatible industrial printhead engineered for high-precision and wide-format inkjet printing. With its 108 mm print width, a small number of printheads can easily achieve wide-format coverage, minimizing alignment complexity and simplifying ink piping and wiring layouts.
Operating at a maximum drive frequency of 20 kHz, this printhead delivers exceptional image sharpness and consistency with a 3 picoliter drop size at speeds up to 50 m/min. It is suitable for a broad range of industrial printing applications, including labels, packaging, signage, and graphics, particularly those requiring UV-curable or other high-viscosity inks.
The integrated microfilter system effectively removes impurities from the ink, while the built-in heater stabilizes temperature-related viscosity changes, ensuring smooth and uniform jetting. With 2,656 precision-aligned nozzles and Kyocera’s unique ink channel design, the KJ4A-AA06ATZ-DL1V-4A provides reliable, consistent ink ejection and reduces non-jetting during extended production runs.
Kyocera KJ4A-AA Printhead Specifications
| Number of Nozzles | 2656 (2558) | |
| Effective Print Width (mm) | 108.25 | |
| Ink | UV | |
| Maximum Drive Frequency (kHz) | 20 | |
| Resolution (dpi) | 600 dpi * 600 dpi | |
| Print Speed *1 (m/min) | 50.8 | |
|
Print Speed*1 (pl) |
Minimum | 3 |
| Maximum | 17 | |
| Nozzle Recirculation | No | |
| Width*Length*Height (mm) | 200*25*57.9 | |
| Recommended Ink Viscosity*2 (mPa * s) | 6.0~7.0 | |
| Brand | Kyocera |
|---|---|
| Model | KJ4A-AA06ATZ-DL1V-4A |
| Ink Type | UV ink |
| Dimensions | 200 × 25 × 57.9mm |
Kyocera KJ4A-AA Printhead Applications
Kyocera KJ4A-AA Printhead Models:
|
KJ4A-AA |
KJ4A-AA06ATZ-DL1V-4A |
| KJ4A-AA06ATZ-HG1V-4B | |
| KJ4A-AA06ATZ-DS3V-3C | |
| KJ4A-AA06ATZ-STDC-4A |
