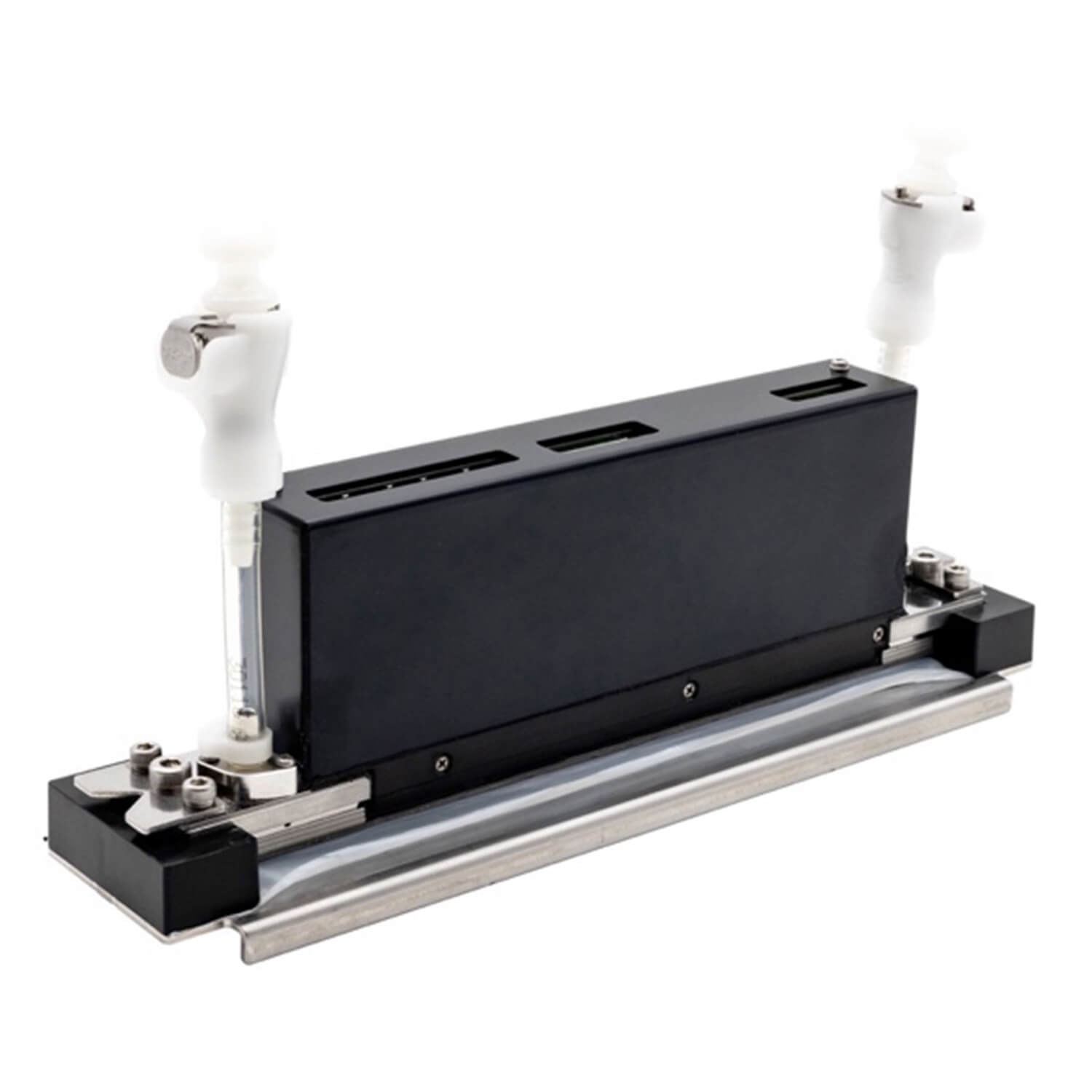

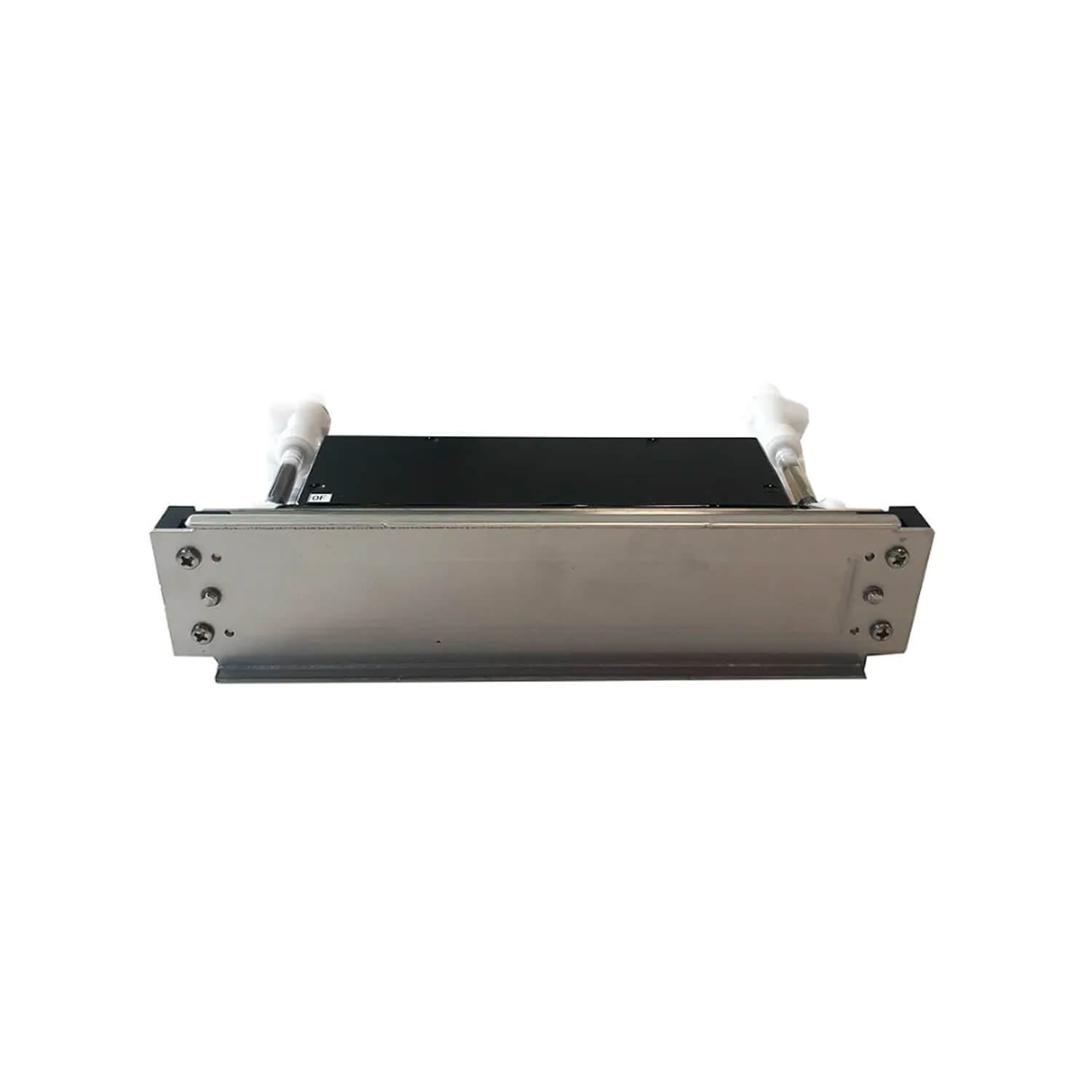

Kyocera KJ4B-QA06NSB-OP1F-4B Printhead
Product photos
At a glance
- Ink Type
- Aqueous Ink
- Dimensions
- 200 × 25 × 59.3mm
- Dry Weight
- 420g
Price: Request a quote
Supplier: Johope · Shenzhen, China
Company & contactListed printer models 1
Confirm the part number, connector and ink system before ordering.
Product details
Kyocera KJ4B-QA06NSB-OP1F-4B Printhead Description
This Kyocera KJ4B-QA printhead is designed for high-speed printing of water-based inks. It is a 600 dpi one colour printhead with a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 5pl at 75 m/min by making use of 2,656 nozzles arranged across a 108.25 mm wide print swathe with 0.042 mm pitch, resulting in 30,000 drops per second. The cable that connects the Kyocera head to the Reggiani Renoir printer is included.
Kyocera KJ4B-QA Printhead Models:
|
KJ4B-QA |
KJ4B-QA06NTB-MS6V-4B |
| KJ4B-QA06NSB-OP1F-4B | |
| KJ4B-QA06NTB-HZ5V-4A | |
| KJ4B-QA06NTB-MS10V-4B | |
| KJ4B-QA06NTB-HZ9V-4B | |
| KJ4B-QA06NTB-STDC-4B | |
| KJ4B-QA06NTC-RM6A-4B | |
| KJ4B-QA06NTB-ST6V-4B | |
| KJ4B-QA06NTB-HG10V-4B | |
| KJ4B-QA06NTB-HT10V | |
| KJ4B-QA06NTB-ME6V-4B | |
| KJ4B-QA06NTB-AN6V-4B | |
| KJ4B-QA06NTB-TX10V-4B |
Printhead specifications
| Brand | Kyocera |
|---|---|
| Ink Type | Aqueous Ink |
| Dimensions | 200 × 25 × 59.3mm |
| Dry Weight | 420g |
