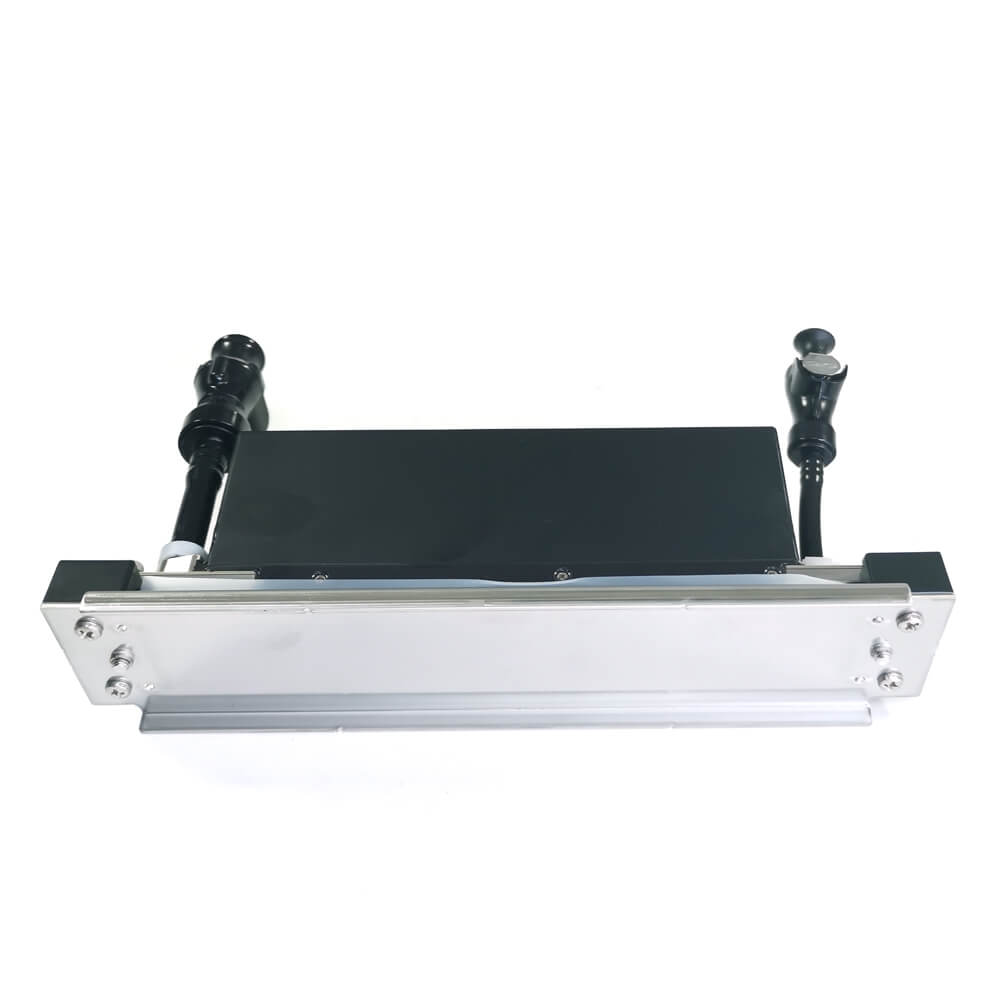

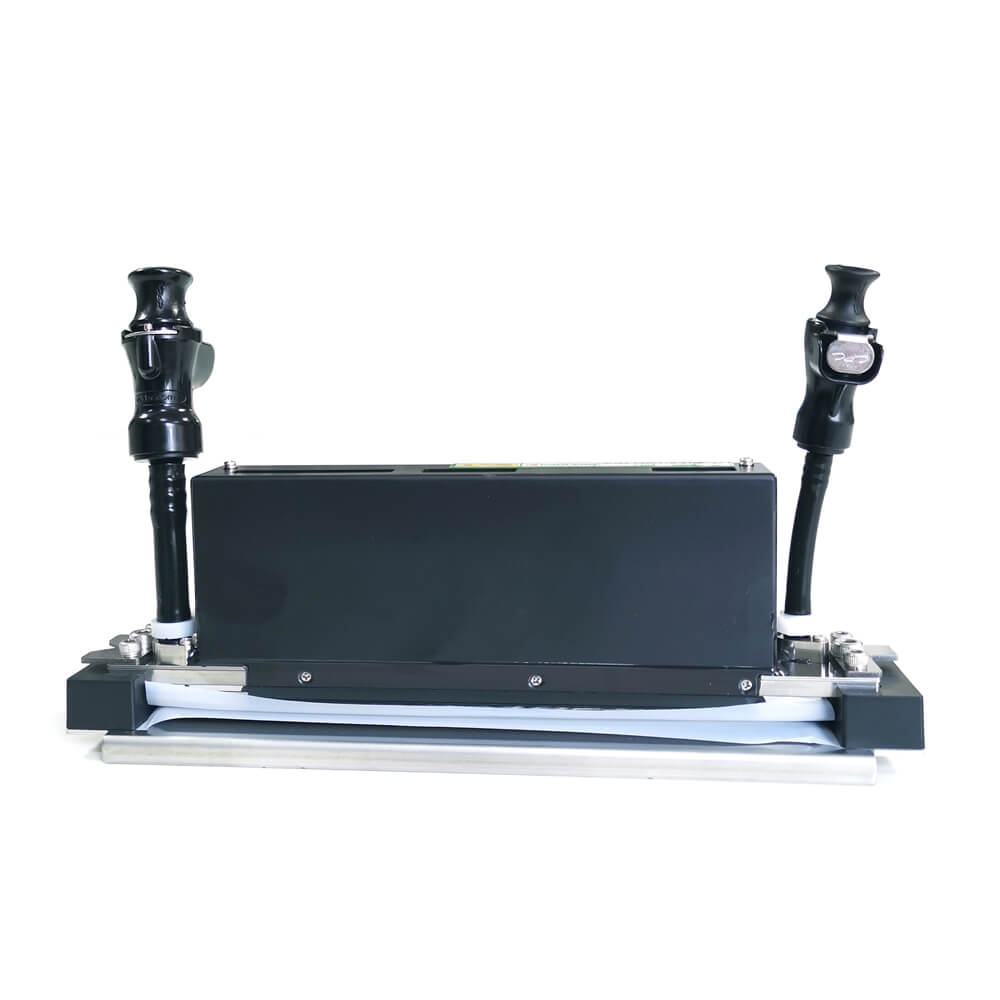

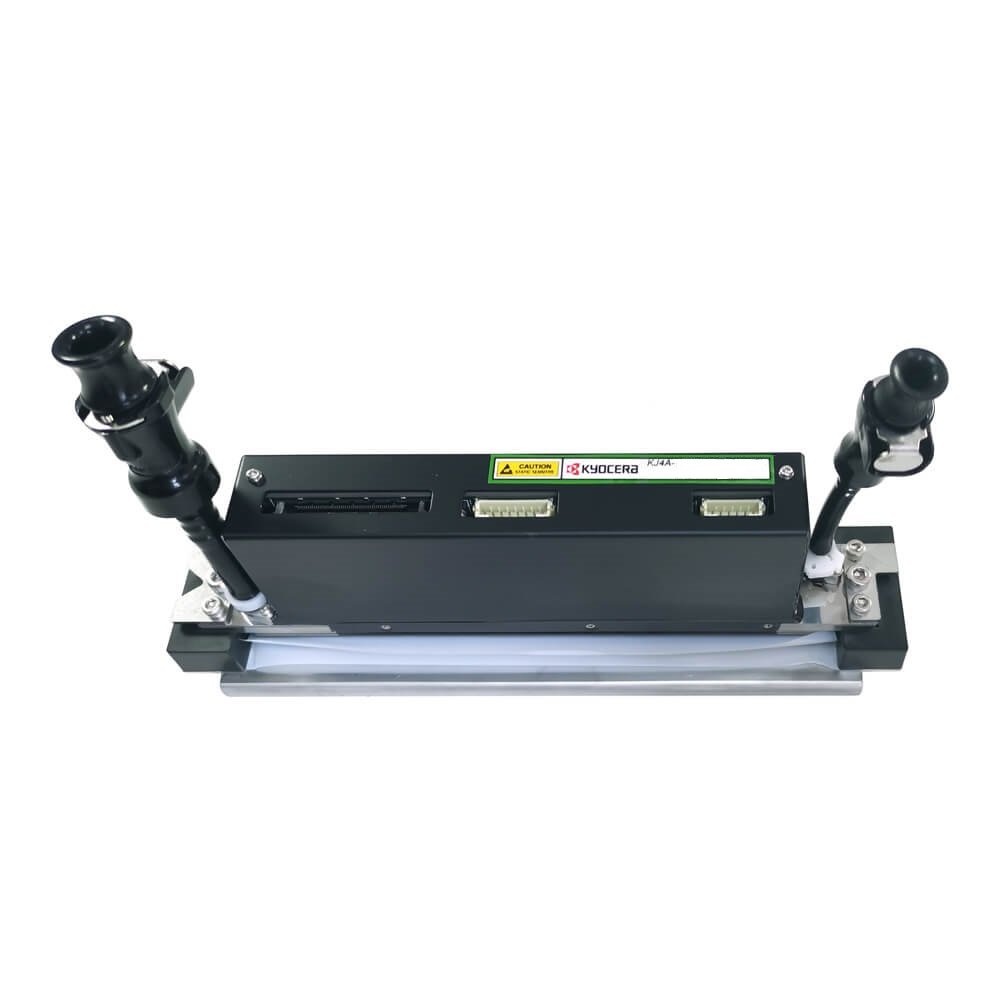

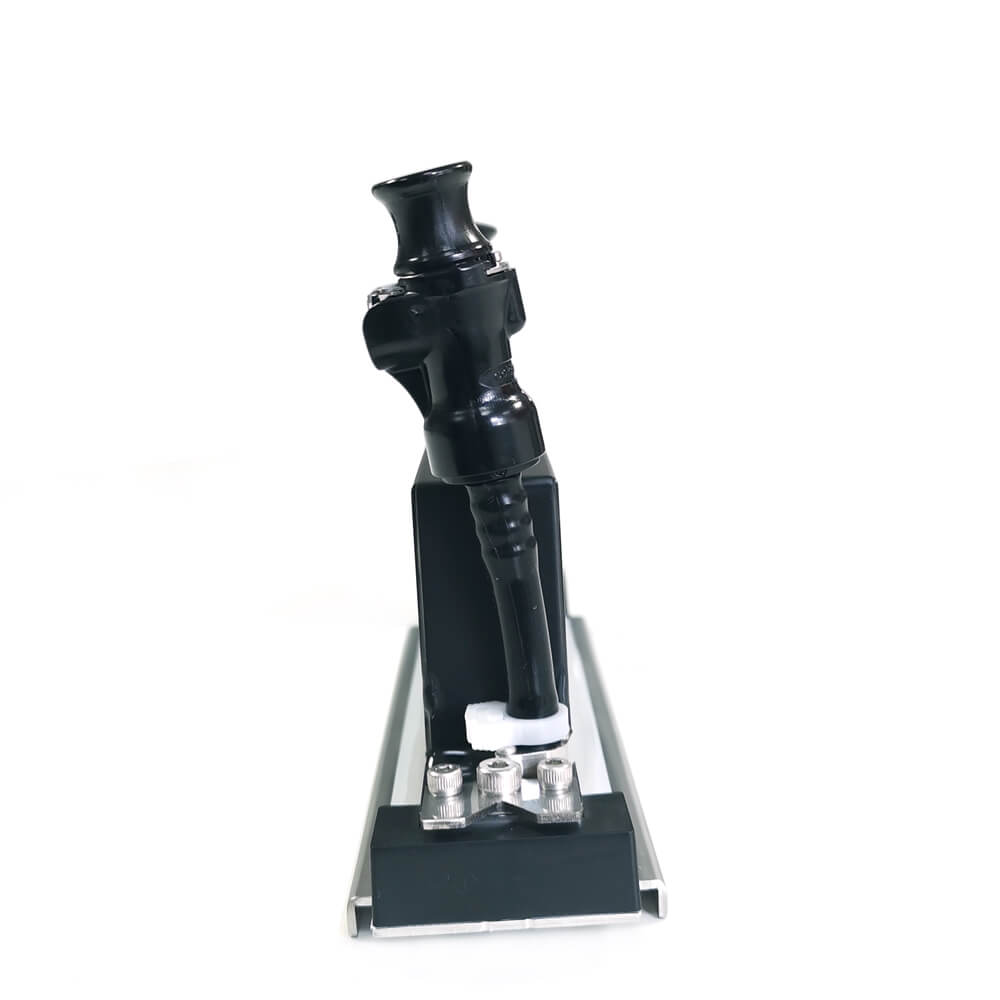

Kyocera KJ4A-RH06CST-STDC Print Head


Basic Info.

  • Brand: Kyocera
  • Ink Type:  UV Ink
  • Model: KJ4A-RH06CST-STDC
  • Dimensions: 200 × 30.5 × 69.1mm
  • Original or Not: Original
  • New or Used: Brand New
  • Warranty Policy: No Warranty
  • Country of origin: Japan

*For more information about this printer part, you can send us an inquiry.

Printer Compatibility

Product Details

Kyocera KJ4A-RH Printhead Description

Kyocera KJ4A-RH is designed for high-speed single-pass and multi-pass applications with printers using UV ink. This 600dpi single-color printhead has 2,656 nozzles, arranged across a 108 mm wide print swathe with 0.042mm pitch, resulting in 30.000 drops per second. The Kyocera KJ4A printhead features a maximum drive frequency of 30kHz, achieving a small drop volume of 5pl at 70 m/min.

With the built-in filter’s help, foreign products are removed; the built-in heater corrects the influence of ambient temperature changes. The unique ink supply design ensures stable jetting of 2656 nozzles and reduces non-jetting during continuous printing.

Kyocera KJ4A-RH Printhead Specifications

Number of Nozzles2656 (2558)
Effective Print Width (mm)108.25
Maximum Drive Frequency (kHz)30
Resolution (dpi)600dpi*600dpi
Print Speed *1 (m/min)76.2

Print Speed*1 (pl)

Nozzle RecirculationNo
Width*Length*Height (mm)200*30.5*69.1
Recommended Ink Viscosity*2 (mPa * s)5.0~6.0


Printer Compatibility
Dilli Neo Sun FB2513-04 D-WX
Gandi Digital Gladi8tor
