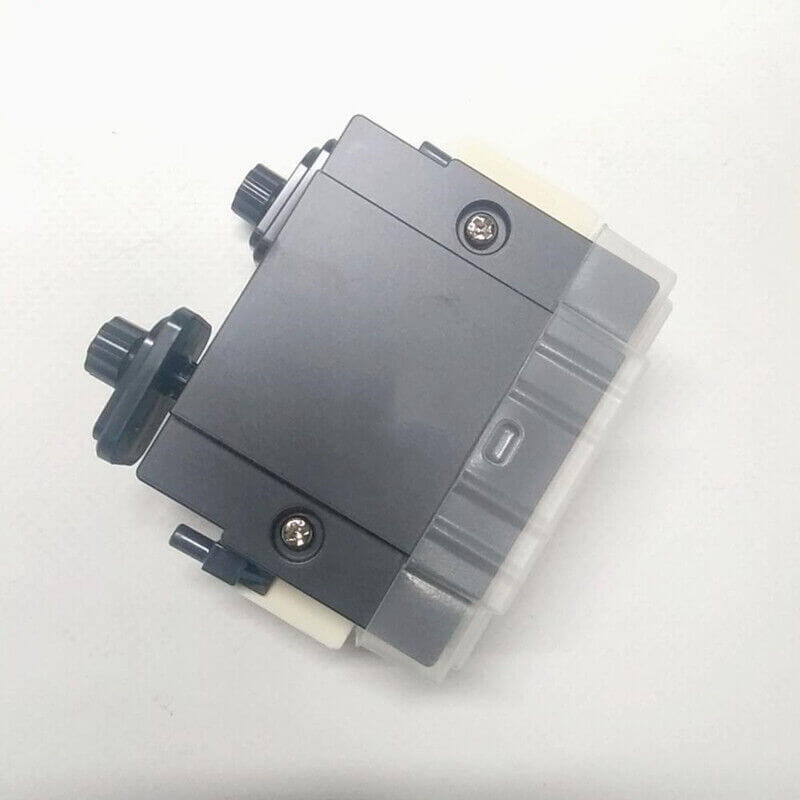

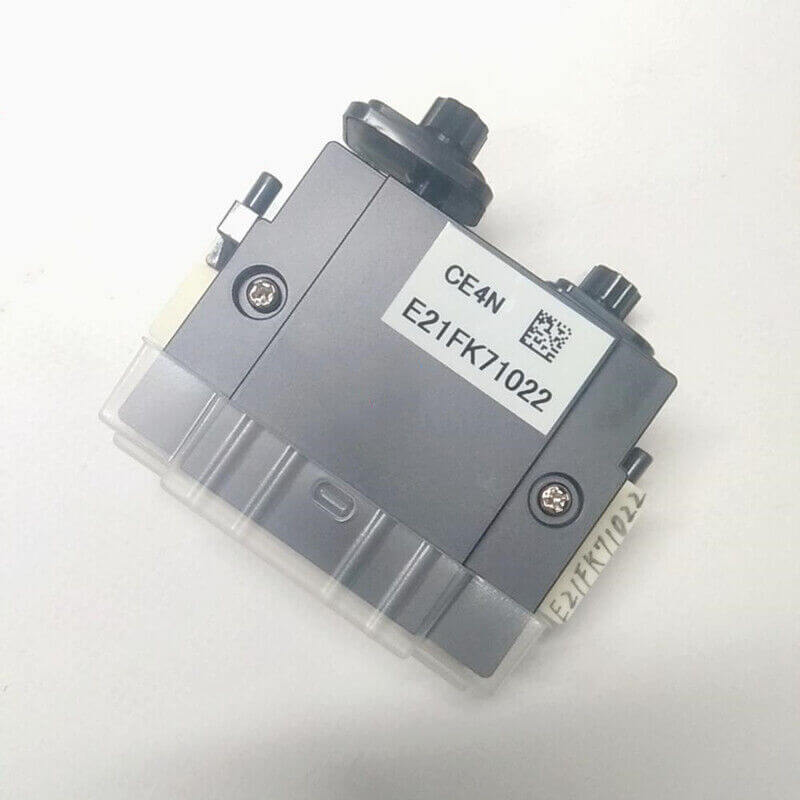

Toshiba CE4N Print Head (Mimaki UJF3042 MP-M018821)
OriginalBrand New
Product photos
At a glance
- Active nozzles
- 318
- Print swathe width
- 53.6 mm
- Grayscale levels
- 16
- Nozzle pitch
- 169 μm
StockConfirm at quotation
Lead timeConfirm at quotation
Price: Request a quote
Supplier: Johope · Shenzhen, China
Company & contactListed printer models 8
- Mimaki JFX-1615
- Mimaki JFX-1615Plus
- Mimaki JFX-1631
- Mimaki JFX-1631Plus
- Mimaki UJF-3042MkII
- Mimaki UJF-6042MkII
View all 8 modelsShow first 6 models
Confirm the part number, connector and ink system before ordering.
Product details
CE4 HEAD ASSY UJF MK-II-M018821 Description
This Printhead Assy is suitable for the Mimaki UJV / JFX / UJF-706 Printers. This is the original Mimaki part (number M018821 replacing M008386 & KX-CE308644CS-CE4). This part does not include the metallic bracket that can be easily re-used from the previous head.
The latest printhead code is CE4N, the same as the previous CE4 code.
CE4 HEAD ASSY UJF MK-II-M018821 Specifications
| Active nozzles | 318 |
| Print swathe width | 53.6 mm |
| Grayscale levels | 16 |
| Nozzle pitch | 169 μm |
| Native resolution | 150dpi |
| Printhead weight (dry) | 148 g |
| Ink compatibility | Oil-based pigment ink and UV-curable pigment ink |
| Drop volume | 6 – 90 pl |
| Typical firing frequency | 2.8 – 28 kHz |
| Dimension (W*D*H) | 85 x 70 x 23 mm |
| Brand | Toshiba |
|---|---|
| Printhead Weight | 148 g |
| Dimensions | 85 x 70 x 23 mm |
Find related printer parts
Explore parts with a listed printhead match or a specific printer model in common. Confirm the part number and your machine’s configuration before ordering.
Each card shows its listed printhead or printer-model connection. Confirm dimensions, connectors and ink compatibility for your configuration.
Printer Valves#14007
Shared printer model
Mimaki UJV-160
- Model
- E300596
Confirm the part number, connector and ink system for your printer.
Printer Valves#13951
Shared printer model
Mimaki UJF-3042MkII · Mimaki UJF-6042MkII
- Brand
- Mimaki
- Model
- MP-M015864
Confirm the part number, connector and ink system for your printer.
Printer Pulleys#14789
Shared printer model
Mimaki UJV-160
- Model
- MP-M006977
Confirm the part number, connector and ink system for your printer.
Printer Pulleys#14785
Shared printer model
Mimaki JFX-1615 · Mimaki JFX-1631 · Mimaki UJV-160
- Model
- MP-M202666
Confirm the part number, connector and ink system for your printer.
Printer Motors#14137
Shared printer model
Mimaki UJV-160
- Part Code
- MP-M009195
Confirm the part number, connector and ink system for your printer.
Printer Motors#14128
Shared printer model
Mimaki UJF-3042MkII · Mimaki UJF-6042MkII
- Part Code
- MP-M020209
Confirm the part number, connector and ink system for your printer.

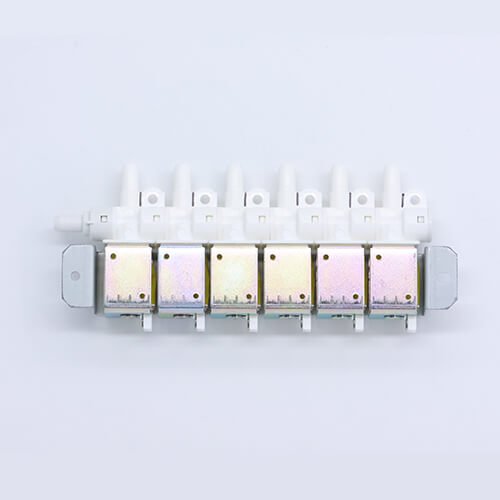

Printer Valves#11736
Shared printer model
Mimaki UJF-3042MkII · Mimaki UJF-6042MkII
- Brand
- Mimaki
- Model
- MP-E301282
Confirm the part number, connector and ink system for your printer.
Printer Wiper Blades#11729
Shared printer model
Mimaki UJF-3042MkII · Mimaki UJF-6042MkII
- Brand
- Mimaki
- Part#
- SPA-0271
Confirm the part number, connector and ink system for your printer.
Printer Encoder Sensors#3964
Shared printer model
Mimaki JFX-1615
- Model
- E106614
- Type
- Encoder Sensor
Confirm the part number, connector and ink system for your printer.

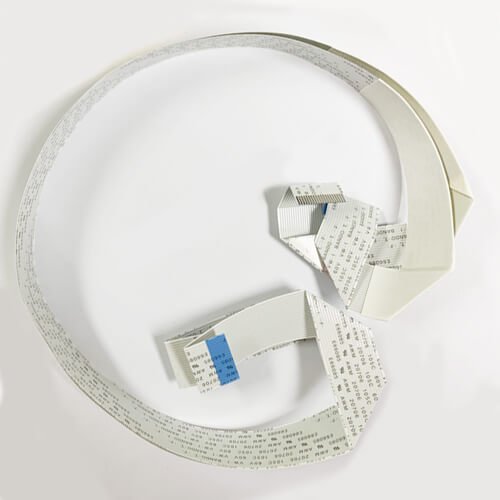

Printhead Cables#12133
