Ricoh Gen5 Print Head (Mimaki UCJV150/300 MP-M026887)


Basic Info.

  • Brand: Mimaki
  • Drop Volume:UCJV150/300/JFX200-2513EX
  • Head Materials: SST, Nickel alloy, and Epoxy Adhesive
  • Nozzle Plate Surface: Coated SST
  • Number of Nozzles: 4 x 320 nozzles
  • Nozzle Spacing: 0.1693 mm
  • Nozzle Density: up to 600 npi
  • Piezo Type: D33 Stacked PZT
  • Temperature Control: Integrated Heater and Thermistor
  • Operator Temperature Range: Up to 80° C
  • Original or Not: Original
  • New or Used: Brand New
  • Warranty Policy: No Warranty

*For more information about this printer part, you can send us an inquiry.

Printer Compatibility

Product Details

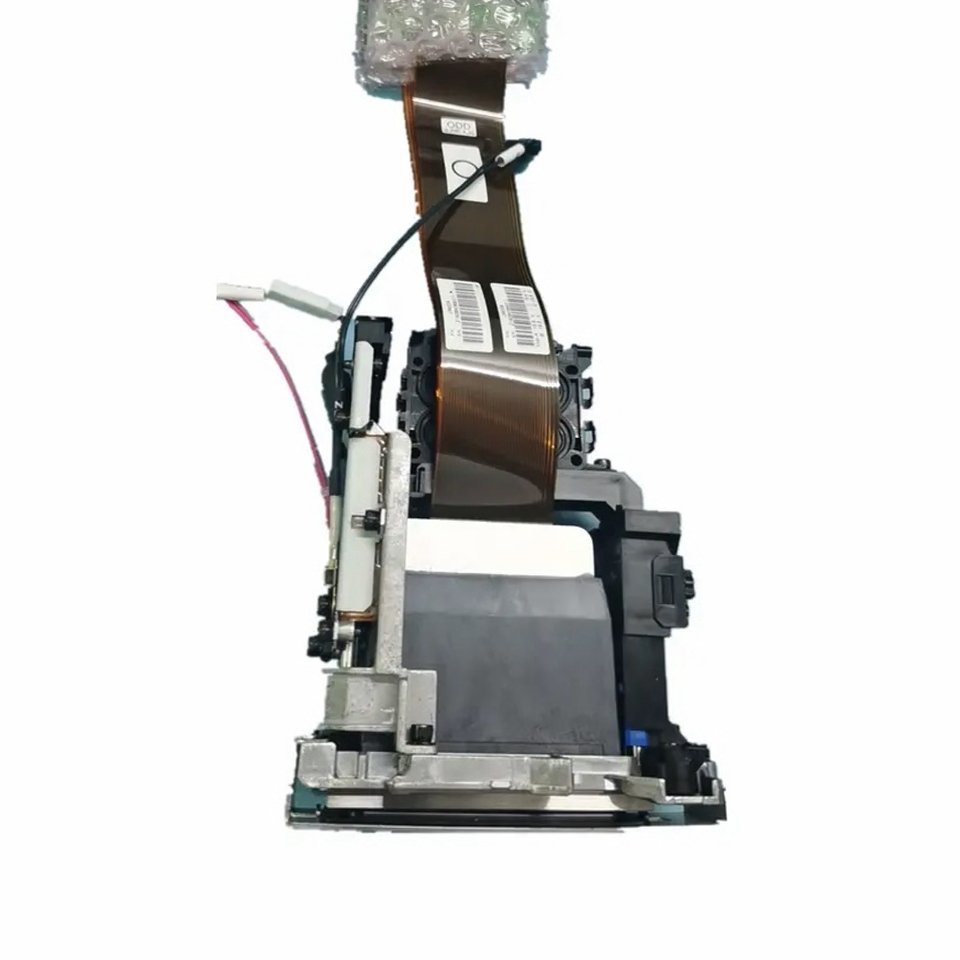

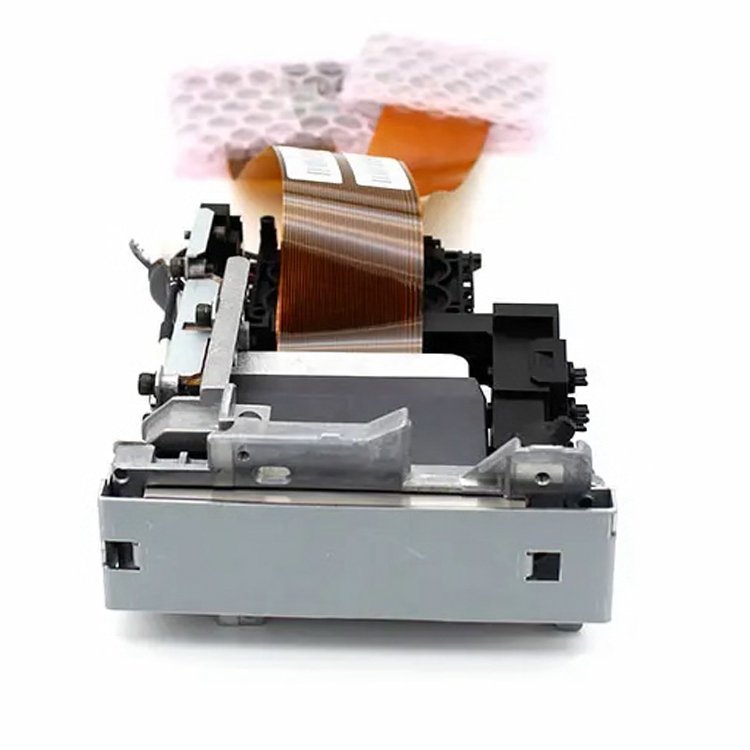

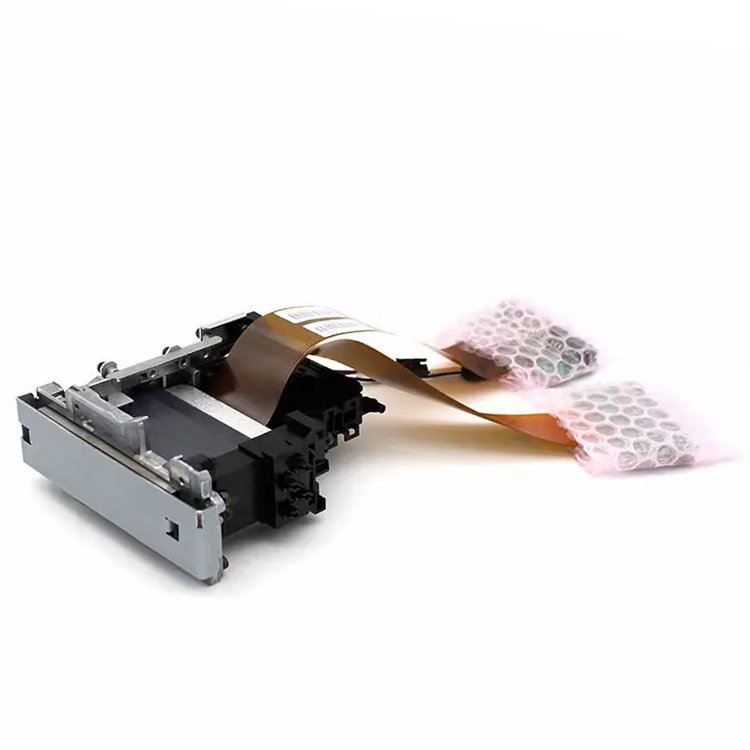

The size of this print head is 89 x 25 x 69 mm (excluding cables). The head material is made of stainless steel, nickel alloy, and epoxy resin adhesive, and the surface of the nozzle plate is coated with stainless steel.

The number of nozzles of this print head is 4 x 320 nozzles, the nozzle spacing is 0.1693 mm, and the nozzle density is as high as 600 npi.  Integrated heater and thermistor control temperature, operating temperature up to 80° C.

The volume of primary water drop is 7 pl, the descending range is 7-35 pl, and the descending speed is 7 m/s. The injection frequency is as high as 60 kHz. The life of this printhead is 100 billion times per nozzle.

Our Core Pillars

Professional Production Lines
Professional Production Lines
5000+ high-quality products meet customers’ specific requirements. Skilled workforce comply with standard production procedures & processes. R&D personnel possess extensive knowledge of printer ink supply parts.
Automated Production Equipment
Automated Production Equipment
Computer-controlled tube cutters achieve high precision and low loss. Screw feeders greatly reduce labor costs and assembly time.
Packaging and Quality Inspection
Packaging and Quality Inspection
Products are protected and identified to facilitate transportation. Quality control is conducted to ensure products meet quality standard.
Logistics and warehousing
Logistics and Warehousing
Sort, package, and ship finished products to meet customer needs. Manage warehousing facilities to ensure product safety and traceability.

Our Exhibitions


Yes. JOHOPE is a professional manufacturer offering spare parts for wide-format printers and a reliable supplier of printheads.

JOHOPE have the complete range of printer spare parts, including ink filter, sub tank, ink damper, etc. Please feel free to contact us.

Of course! All printheads are 100% original and brand new here.

We will deliver within 2-3 workdays after full payment is received.

We usually ship by DHL,FEDEX,UPS,TNT or EMS.
