Mimaki UJF7151 Print Head (MP-M025074)


Basic Info.

  • Print Method: On-Demand piezo technology
  • Print Width: 53.7mm
  • Nozzles: 636
  • Nozzle Resolution: 300npi
  • Number of Lows: 2
  • Nozzle Spacing (Row to row distance): 4.64mm
  • Grayscale Level: 4 levels/0,5,6,7drops
  • Drop Volume: 57~80pL
  • Frequency: 4.8kHz/7drops
  • Power Supply Voltage for Driving the Head: 14~31V
  • Power Supply Voltage for Driving Circuit: 5V, 39V
  • Ink Type: UV-curing
  • Ink Re-circulation Structure: Ink re-circulation through all channels
  • Size, Weight: 94.1mm(W)×26mm(D)×79mm(H), 161g
  • Country of origin : Japan

*For more information about this printer part, you can send us an inquiry.

Printer Compatibility

Product Details

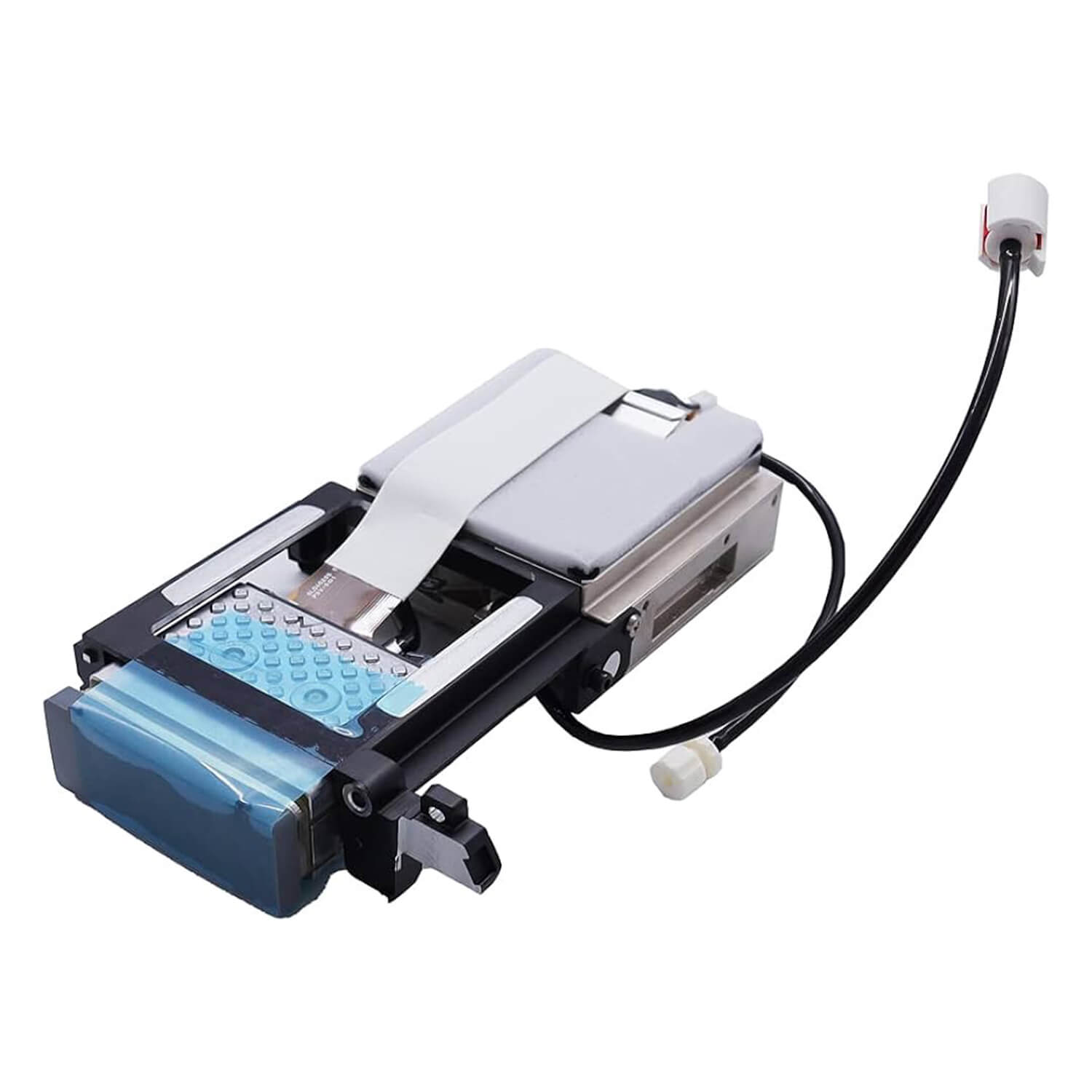

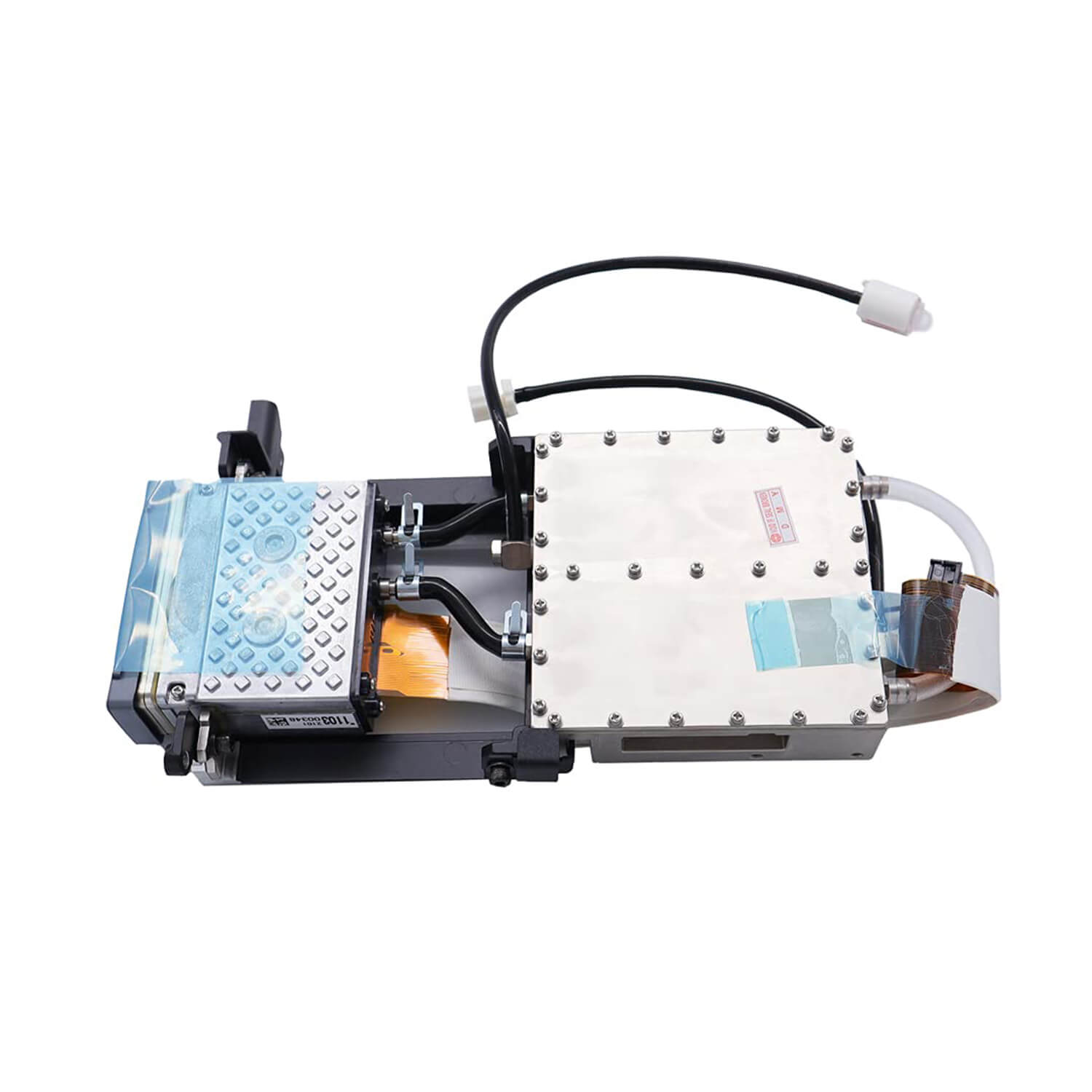

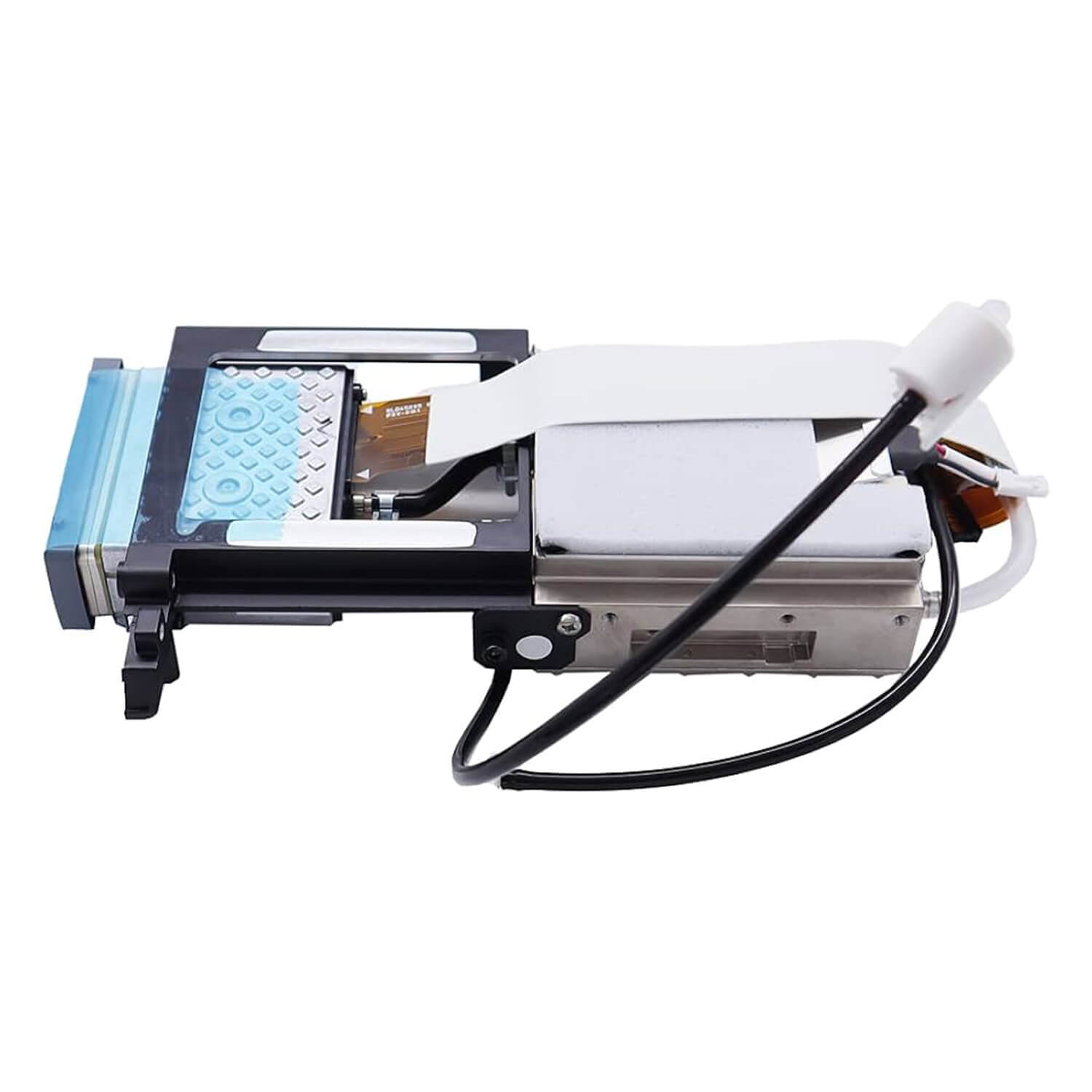

This head assembly is suitable for Mimaki UJF-7151 Plus printers. This is the original Mimaki part (number M017429 replaced by MP-M025074). This head assembly includes brackets, tubes, damper, and sub tank.
