Ricoh GEN4 Print Head

Share:

Basic Info.

  • Brand: Ricoh
  • Model: MH2420
  • Original or Not: Original
  • New or Used: Brand New
  • Warranty Policy: No Warranty
  • Weight: 73g
  • Dimensions: 63(W) × 62.4(D) × 16.2(H) mm (2.48″ × 2.48″ × 0.64″) excluding cables

*For more information about this printer part, you can send us an inquiry.

Printer Compatibility
Delivery:
Payment:

Product Details

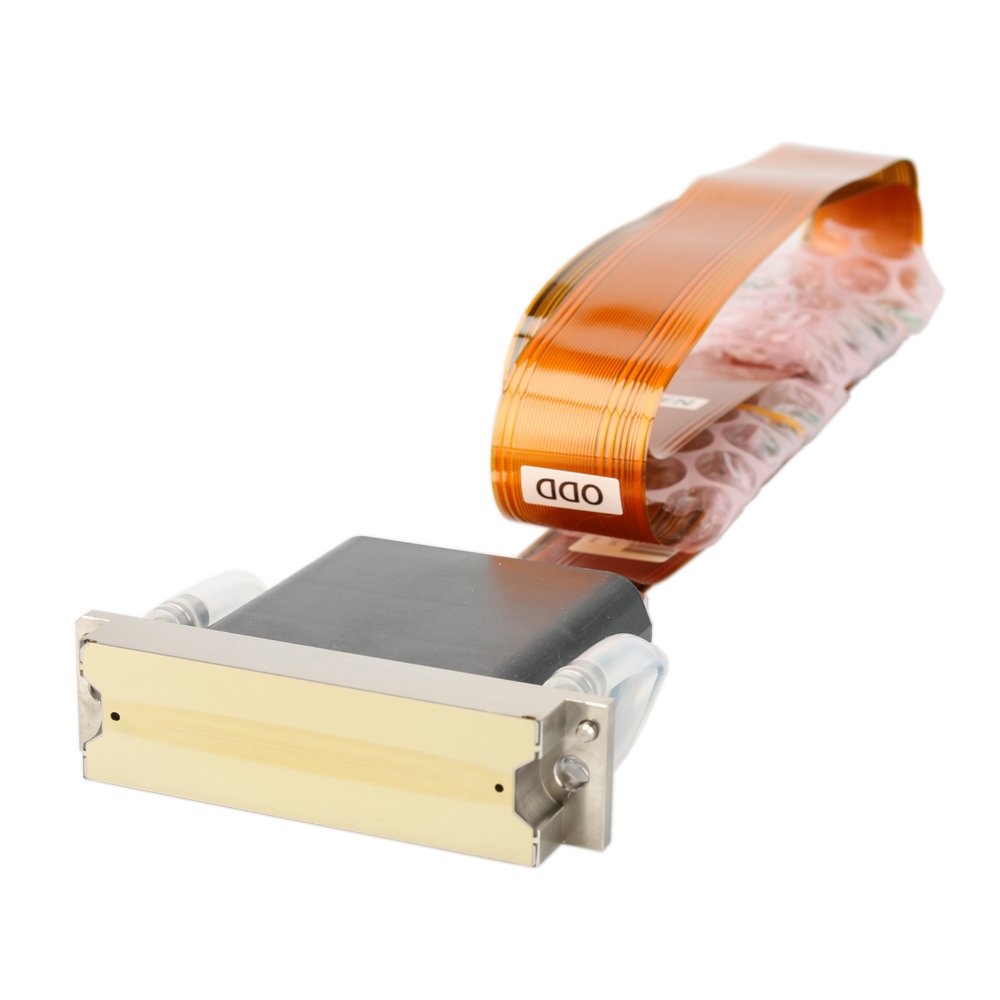

Ricoh Gen4 Printhead MH2420 Description

Outstanding Durability and Extended Service Life
Ricoh’s inkjet print heads are crafted from stainless steel, offering superior robustness and excellent anti-corrosion properties across multiple ink types. This ensures outstanding durability and a prolonged service life.

Versatile Ink Support
Equipped with a built-in heater, these heads can efficiently jet high-viscosity inks. Additionally, the isolated ink path ensures that the ink does not come into contact with the actuator (piezo elements).

Variable Drop Volume Capability
The multi-drop feature enables the creation of various drop sizes, facilitating high-quality grayscale printing.

Ricoh Gen4 Printhead MH2420 Specifications

MethodPiston pusher with metallic diaphragm plate
Print Width32.4 mm(1.28″)
Number of nozzles384 (2 × 192 channels), staggered
Nozzle spacing (Within a row)1/150″(0.1693 mm)/row
Nozzle spacing (Row to row distance)0.529 mm
Max.number of color inks2 colors
Drop volumeBinary mode : 7pl / Grey-scale mode : 7-35pl
*depending on the ink
Jetting frequencyBinary mode : 30kHz / Grey-scale mode : 20kHz
Compatible inkUV, Solvent, Aqueous, Others.
Viscosity range10-12 mPa•s



Printer Compatibility

Aqueous, solvent and UV printers
