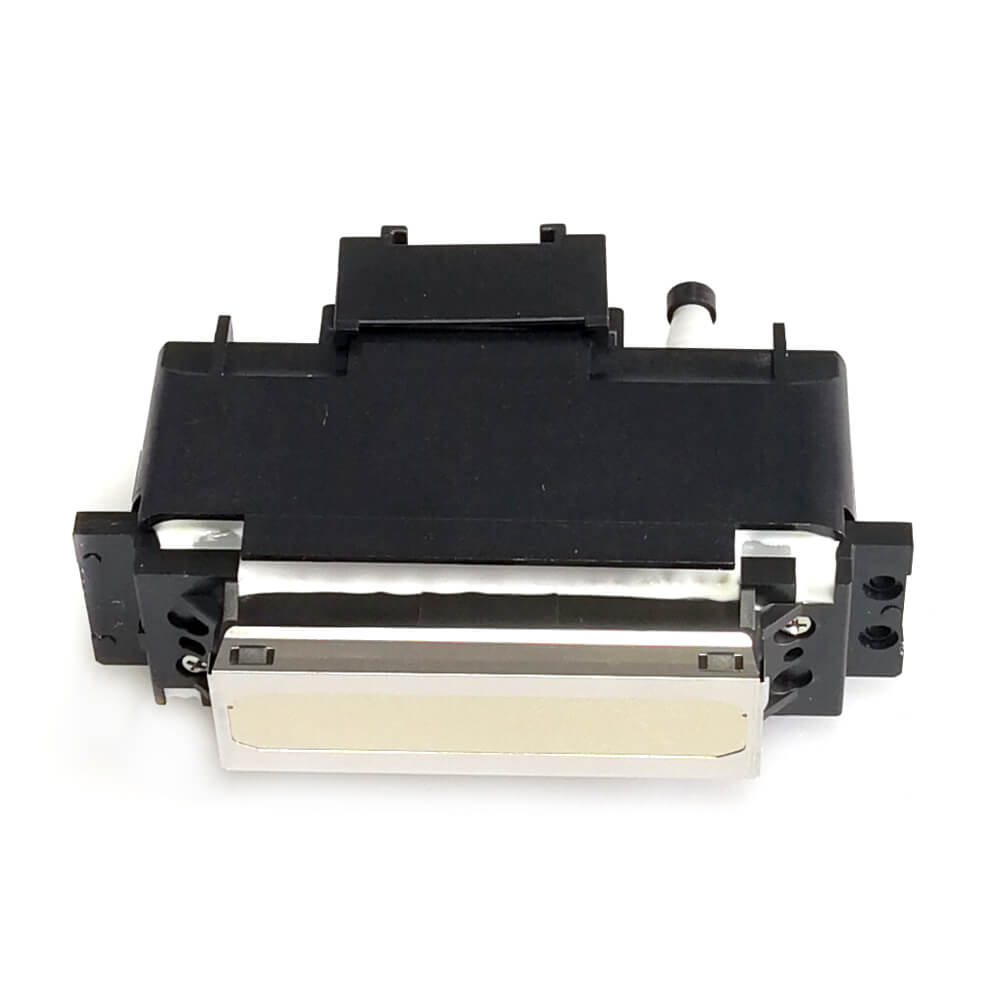

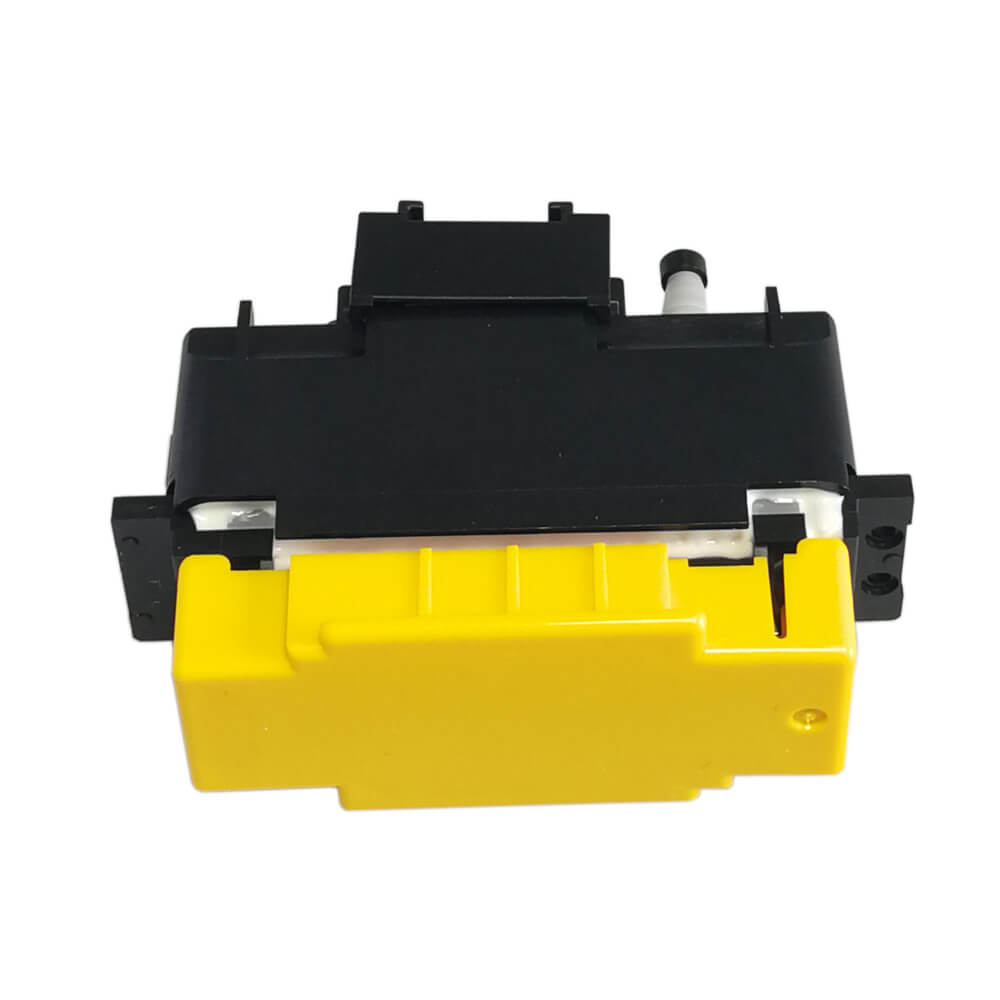

Ricoh GH2220 Print Head


Basic Info.

  • Brand: Ricoh
  • Size: 61.8(W) × 40.5(D) × 23.3(H) mm (2.43″ × 1.59″ × 0.92″)
  • Number of Nozzles: 384
  • Nozzle Spacing (Within a row): 0,1693 mm/row
  • Nozzle Spacing (Row to row distance): 0.931 mm
  • Method: Piston pusher with metallic diaphragm plate
  • Temperature Control: No heater or thermistor
  • Drop Volume: Binary mode : 3-5pl / Grey-scale mode : 21±2pl
  • Jetting Frequency: Binary mode : 30kHz / Grey-scale mode : 24kHz
  • Life: 30 billion actuations per nozzle
  • Compatible Ink: Aqueous, Solvent, UV

*For more information about this printer part, you can send us an inquiry.

Printer Compatibility

Product Details

This Ricoh print head is suitable for printers based on GH2220. This is the original Ricoh part (number GH2220), which supplements Ricoh’s stainless steel MH series print head series. It has been provided to original equipment manufacturers for their printer products based on water-based and solvent inks.

In addition to water-based inks, this print head also supports solvent inks.

This print head supports droplet control based on multi-droplets, which is used to solidify the ink ejected from the nozzle at high speed before it reaches the surface of the medium. Droplet volume control can realize complete control from small droplets to large droplets.


Yes.We are wide format printer parts manfacturer and print heads supplier.and ink pump is our main product

Each ink pump has been spot-checked by a superior leader. You are also welcome to visit the company.

We accept the T/T transfer, Western Union, PayPal. Within 2-3 workdays after full payment is received.

Please feel free to contact us, we have the complete range of printer spare parts.
