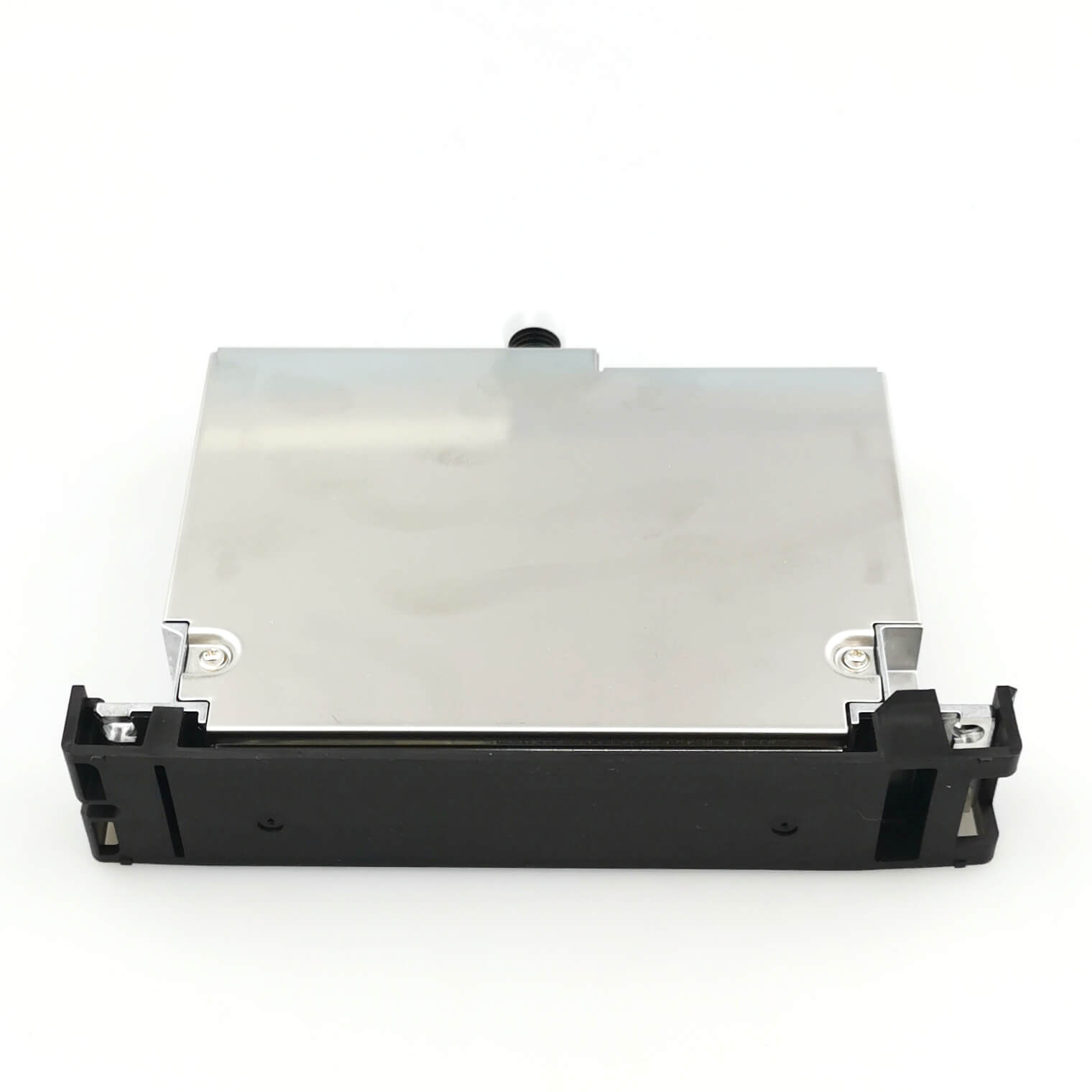

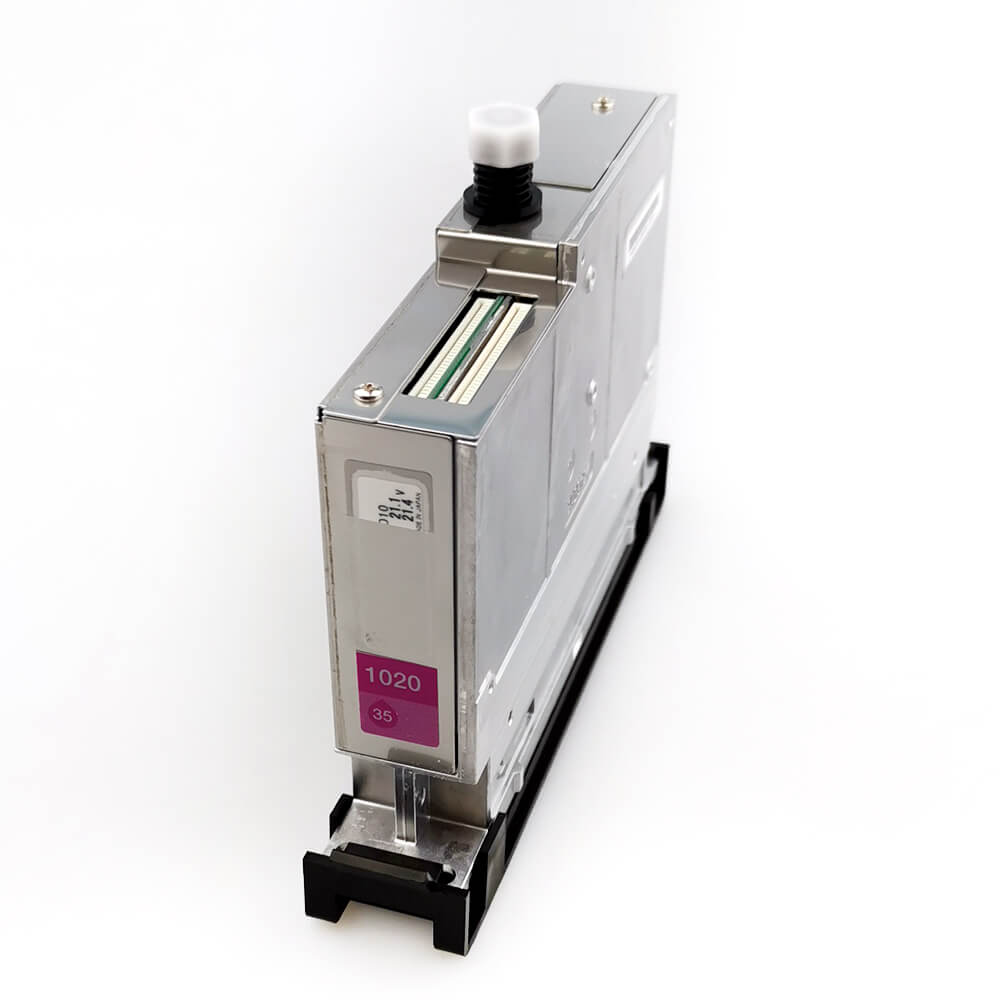

Product photos
At a glance
- Weight
- Approximately 1.7 kg
- Active nozzles
- 1020
- Nozzle density
- 185 npi
- Drop size
- 35 pl
Price: Request a quote
Supplier: Johope · Shenzhen, China
Company & contactListed printer models 19
View all 19 modelsShow first 6 models
Confirm the part number, connector and ink system before ordering.
Product details
Seiko SPT-1020 35 pl Printhead Description
The Seiko SPT-1020 Printhead delivers exceptional performance for grand format digital printers, combining high-resolution and high-speed printing. With 1020 active nozzles and a 35 pl drop size, it provides excellent precision and quality for a wide range of applications.
Seiko SPT-1020 35 pl Printhead Specifications
| Weight | Approximately 1.7 kg |
| Active nozzles | 1020 |
| Nozzle density | 185 npi |
| Drop size | 35 pl |
| 185 npi | 360 dpi |
| Max. resolution | 720 dpi |
| Print swathe width | 71.9 mm |
| Firing frequency | 6.46 or 8.29 kHz |
| Jetting speed | 4.2 m/s |
| Part # | IRH2536Q-2010 |
|---|
Meet Johope.
Shenzhen Johope Technology Co., Limited
Johope Technology works in research and development, manufacturing, sales, and service for wide-format inkjet printer parts.
Explore our company profile (opens a new tab)- Collaborative work environment
- 13,000㎡+
- Multi-skilled employees
- 62
Company figures published on Johope’s website.
Photos from our company profile. Product availability is confirmed at quotation.
Request a quoteEnquire about the Seiko SPT-1020 35pl Printhead IRH2536Q-2010
Enquire about Seiko SPT-1020 35pl Printhead IRH2536Q-2010.
Share your contact details and tell us what you need. Your printhead will be included in the enquiry.
Part #: IRH2536Q-2010
