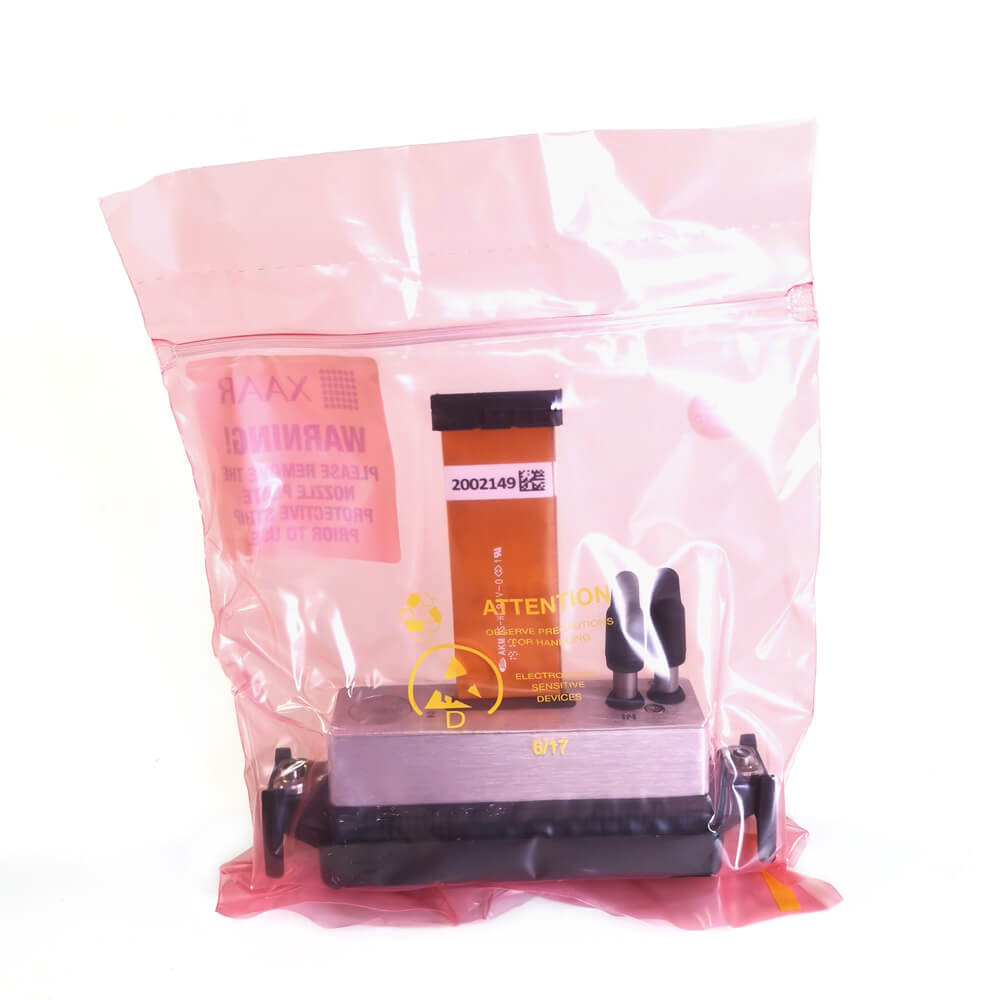

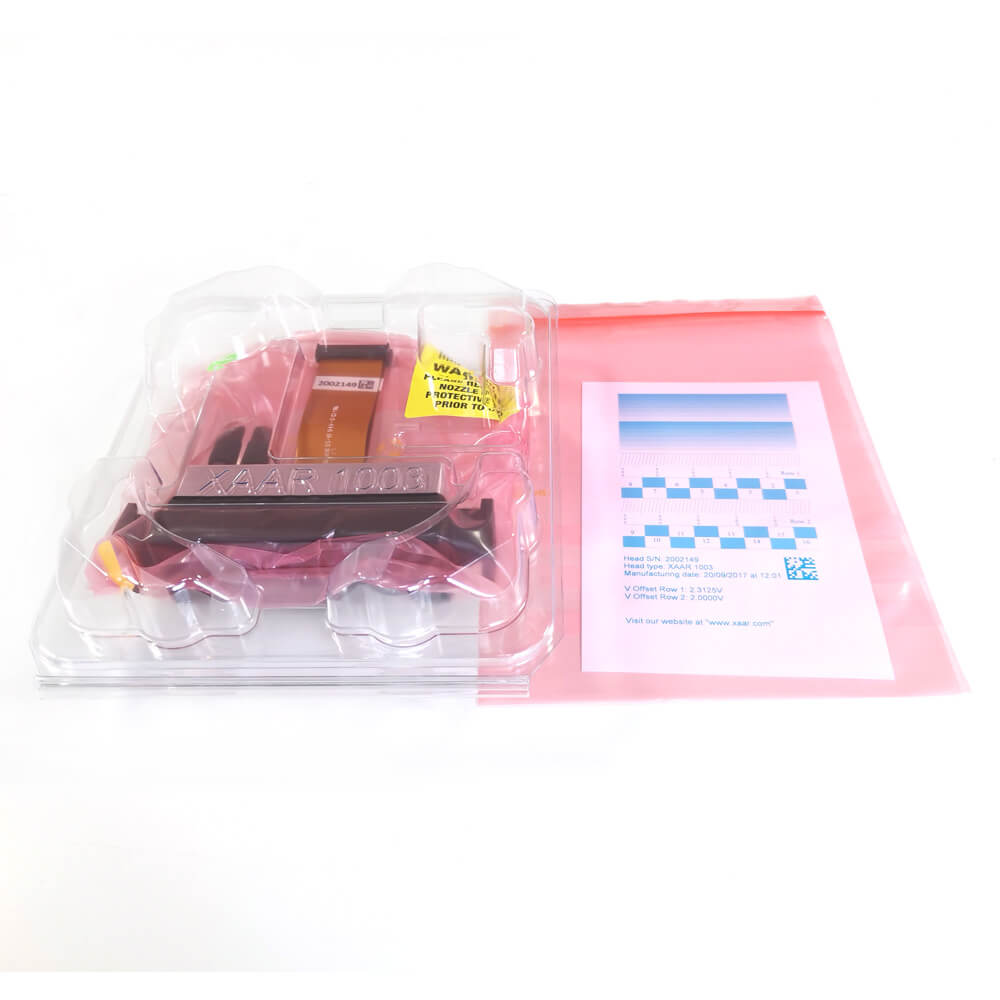

Xaar 1003 GS12C Printhead XP10100157

Xaar 1003 GS12C Printhead Description

The Xaar 1003 GS12C is a next-generation ceramic printhead designed for high-quality, high-volume tile printing. Equipped with 1,000 nozzles and Xaar’s advanced High Laydown Technology, it delivers strong color density, smooth coverage, and excellent jetting stability across demanding production environments.

A key feature of the 1003 series is the XaarGuard™ nozzle plate protection system, which significantly reduces maintenance frequency and ensures longer uninterrupted printing runs. With Tuned Actuator Manufacturing, the GS12C also provides improved uniformity across wide print widths—ideal for large-format ceramic tiles.

Fully backward-compatible with Xaar 1001C and 1002C printers, this model offers a seamless upgrade path for manufacturers seeking better durability, consistency, and output efficiency. Whether replacing a single head or upgrading an entire print bar, the Xaar 1003 GS12C enhances both print performance and operational reliability.



Xaar 1003 GS12C Printhead Specifications

Active Nozzles	1000
Number of rows	2
Print Swathe Width	70.5 mm
Nozzle density (nozzles per inch)	360 npi
Drop volume	12 to 84 pl
Typical Firing Frequency	6 to 12 kHz
Number of grey levels	7
Ink Type	Oil-based
Brand	XAAR
Part #	XP10100157
Dimensions (WxDxH) (mm)	125 x 30 x 60
Weight	0.50kg



Xaar 1003 GS12C Printhead Applications

• Floor tiles
• Special effects
• Tile cladding for building exteriors
• Wall tiles
• Glass printing



1. What is the difference between the Xaar 1003 GS-12C and the GS-12U?

Both printheads feature 1,000 nozzles and support a 12–84 pl drop range with 8 grey levels. The GS-12C is the ceramic variant, calibrated and approved specifically for oil-based ceramic inks, while the GS-12U (Universal) is designed for solvent, UV, and oil-based inks in non-ceramic applications. These variants are not interchangeable. Always confirm the required suffix and ink type before ordering.

2. What is the difference between the Xaar 1003 GS-12C and the GS-6C?

Both are designed for oil-based ceramic ink applications, but they differ in drop size and ink laydown. The GS-12C uses a larger drop size for higher ink laydown and faster production, while the GS-6C uses a smaller drop size for finer detail and higher image precision. Select the correct variant based on your printer configuration and production requirements.
