How to Clean Epson Printhead?

Epson printhead is prone to clogging, so how to clean Epson printhead? With heavy daily use, your Epson printer may experience problems such as blurry prints, inaccurate colors, or the inability to print at all. These problems usually stem from clogged printheads. The printhead is the heart of the printer, and its working quality directly affects the printing effect. Therefore, regular cleaning of the printhead is particularly important. This article will introduce in detail steps to clean the Epson printheads.

Why Are Epson Printheads Easily Clogged?

As a civilian printhead, Epson printheads focus on precision. Common Epson printheads are divided into six-color (six-channel) and eight-color (eight-channel) types. It is different from the two-color (two-channel) common industrial printheads. It can match four common color inks.

  1. Poor ink Quality: Due to the main focus on precision, the diameter of the nozzles on the printhead is 1.5-3.5PL. The nozzle diameter of industrial printheads is 7-35PL. Therefore, it can be seen from this point that Epson printheads have finer particle molecular requirements in ink than industrial ones. Thus, once the wrong ink is selected, it will cause the problem of printhead clogging. To save money, many users often choose to use low-quality ink on the market, which inevitably leads to printhead clogging.
  2. Ink drying: If the printhead has not been used for a long time or the ink quality is poor, the ink will dry on the printhead, causing clogging.
  3. The ink tank is not replaced in time: If the ink tank is used up but is not replaced in time, it will accelerate the drying of the ink and cause clogging.
  4. Low frequency of use: If the printer is not used for a long time, the ink will condense into a solid in the printhead, causing clogging.
Epson 4720 printhead

How to Clean the Printhead on an Epson Printer?

If the printhead is clogged or contaminated, the print quality will decrease, such as line breakage, color deviation, blurred writing, and other problems. Therefore, regular cleaning of the printhead is an important step in maintaining the printer.

Automatic Clean Epson Printhead

For Epson printers that support automatic cleaning, the process of cleaning the printhead is relatively simple. Here are the specific steps:

  1. Turn on the printer and make sure the printer is idle.
  2. On the printer’s control panel, find the “Settings” or “Maintenance” option and click to enter.
  3. In the setup or maintenance menu, find the “Printhead Cleaning” or similar option and press the OK button.
  4. The printer will start the automatic printhead cleaning process, which may take some time, please wait patiently.
  5. After cleaning is completed, the printer usually prints a test page to check the cleaning effect.
    Please note that automatic cleaning consumes a certain amount of ink, so frequent operation is not recommended. Cleaning is only needed when there are problems with print quality.

Manually Clean Epson Printhead

For Epson printers that do not support automatic cleaning, or if automatic cleaning is ineffective, you may need to manually clean the printhead. Manual cleaning requires some skill and patience, please follow these steps:

  1. First, turn off the printer and disconnect the power plug to ensure safety.
  2. Open the printer cover and move the printhead to an accessible location.
  3. Use a special cleaning fluid or cleaning cotton swab to gently wipe the print head surface. Make sure to only touch non-metallic parts of the print head to avoid electric shock or damage to the print head.
  4. Do not use too much cleaning solution, just moisten the cotton swab. Gently wipe the printhead to remove any ink or impurities attached to it.
  5. After cleaning, wait for a while for the printhead to dry naturally, or use a non-woven cloth to gently dry it.
  6. Close the printer cover, reconnect the power, and turn on the printer to test.

Measures to Prevent Printhead Clogging

In addition to cleaning the printheads regularly, there are some preventive measures that can be taken to reduce the possibility of printhead clogging:

  1. Use original ink: Try to avoid using compatible ink or low-quality ink, as they may cause printhead clogging or affect print quality. Choosing original Epson ink can ensure the stability and reliability of your printer.
  2. Print regularly: Not using the printer for a long time may cause the ink to dry out and the nozzles to clog. Therefore, it is recommended to print some documents or pictures regularly to keep the printhead moist and smooth.

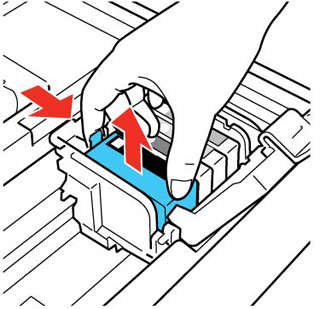

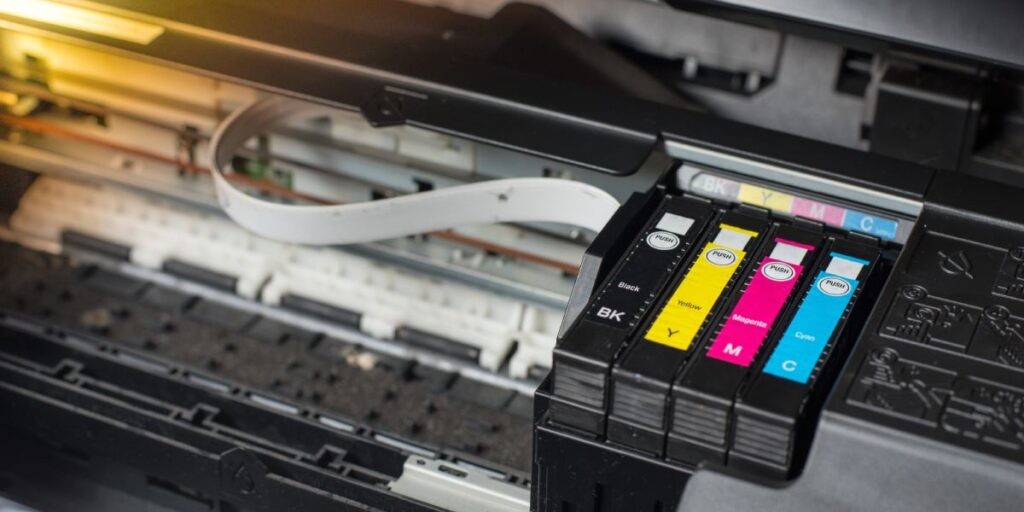

  3. Replace the ink tank promptly: If the ink tank has been used up, do not wait until the ink is completely exhausted before replacing it. Timely replacement of ink tanks can avoid printhead clogging and print quality degradation.
  4. Avoid dust and impurities: Keep the printer’s working environment clean to prevent dust and impurities from entering the inside of the printer. Using a printer cover or dust cover can effectively protect your printer from dust.
  5. Regular maintenance: Follow the recommendations in the Epson printer user manual to perform regular maintenance and upkeep to ensure the normal operation and print quality of the printer.

How to Extend the Service Life of Printheads

In addition to avoiding printhead clogging, we can also take the following measures to extend the service life of the printhead:

  1. Use the printer correctly: Following the instructions, and using and maintaining the printer correctly is the key to maintaining the longevity of the printhead.
  2. Do not cut off the power supply during operation: During the process of cutting off the power supply, the ink will not be able to return to the ink cartridge normally, so the printhead will easily lose its softness.
  3. Avoid using certain cleaning fluids: When using cleaning fluids, be sure to read the instructions and avoid using cleaning fluids that are harmful to the printhead.
    In general, the problem of Epson printhead clogging is common. We can reduce printhead clogging and extend service life through proper cleaning and maintenance.
