Everything You Need to Know About Ink Cartridge Chip

Ink Cartridge Chip-A Brief Introduction

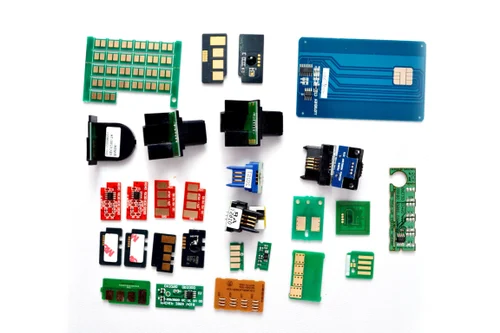

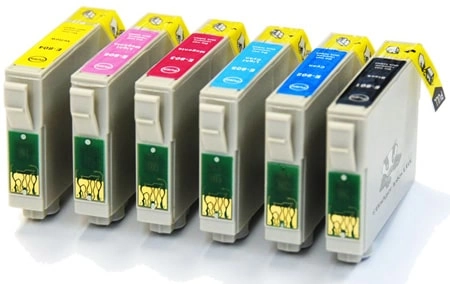

Inkjet printers are currently widely used in personal and commercial printing due to their high quality and low cost. The ink cartridge chip is a small chip on the ink cartridge of an ink printer. Its function is to monitor the use of ink in the ink cartridge and update the ink information in real-time so that the printer can accurately determine the remaining amount of ink and remind the user to replace the ink cartridge in time. It is a device that communicates with the printer by direct contact or through radio frequency. The chip is mounted on a compact circuit board and has memory to store information. It is even linked to a processor to provide user response.

Ink Cartridge Chip Working Principle

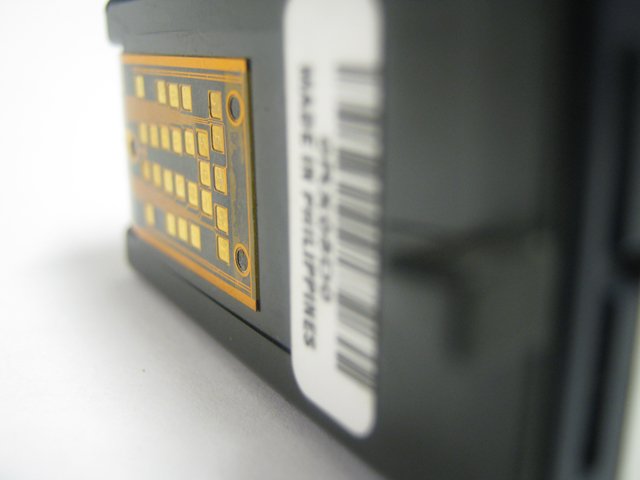

The cartridge chip is a microelectronic chip that consists of a central processing unit(CPU), capacitors, power supply, coils, and sensors. The working principle of the ink cartridge chip is to understand the ink consumption, ink cartridge model, and other parameters in the ink cartridge by reading the data information stored inside the ink cartridge. When the printer detects this information stored in the ink cartridge chip, it will take appropriate measures, such as prohibiting the use of expired ink cartridges. The principle of the ink cartridge chip is mainly divided into two aspects, namely the ink circuit and the communication circuit.

Ink Circuit

The ink circuit is a critical part of the ink cartridge chip. In the ink cartridge, the chip senses the status of the ink through the conductivity of the ink. When the conductivity of the ink reaches a certain value, the chip will determine that the remaining amount of ink is insufficient and send a signal to the printer to remind the user to replace the ink. This ink circuit design can not only accurately determine the remaining amount of ink, but also avoid ink waste or printer damage caused by misjudgment.

Communication Circuit

The communication circuit is an important link in the exchange of information between the ink cartridge chip and the printer. The ink cartridge chip communicates with the printer through internal circuits and transmits ink information to the printer. The communication circuit can not only transmit the remaining amount of ink to the printer but can also perform other functions, such as recording printer usage and updating printer firmware. Through the communication circuit, the ink cartridge chip can achieve good cooperation with the printer, improving the printing effect and the service life of the printer.

The design of the ink cartridge chip principle aims to improve the use experience and efficiency of inkjet printers. By monitoring ink usage in real-time, the ink cartridge chip can accurately determine the remaining amount of ink and remind users to replace the ink cartridge in time to avoid insufficient ink affecting print quality. At the same time, the ink cartridge chip can also record the usage of the printer to provide users with better printing services.

However, there are also some problems with the ink cartridge chip principle. Some manufacturers will encrypt the ink cartridge chip so that users can only use ink cartridges of specified brands and not other brands. This approach limits users’ options and increases printing costs. In addition, some ink cartridge chips also have some technical difficulties, such as being unable to accurately determine the remaining amount of ink and being prone to false alarms. These problems require manufacturers to continuously improve and optimize to improve the performance and stability of the ink cartridge chip.

The ink cartridge chip principle is an integral part of the ink printer. Through the design of the ink circuit and communication circuit, the ink cartridge chip can accurately determine the remaining amount of ink and exchange information with the printer to improve the printer’s use effect and user experience. However, there are also some problems with the ink cartridge chip principle, which require manufacturers to continuously improve and optimize. With the advancement of technology, the performance and stability of ink cartridge chips will continue to improve, providing users with a better printing experience.

How to Bypass Ink Cartridge Chip Limitations?

Some users have suggested that the limitations of the cartridge chip can be bypassed. But we don’t recommend this. Some methods can bypass the limitations of the ink cartridge chip, such as sticking a piece of transparent electronic tape on the ink cartridge chip to trick the printer, or modifying the information on the ink cartridge chip yourself. However, these methods usually violate the product warranty and usage agreement, may damage the equipment, and also affect product quality.
Generally speaking, the principle of the ink cartridge chip can effectively monitor the amount of ink and the status of the printer to ensure printing quality and efficiency. We recommend that you use your inkjet printer and ink cartridges in the correct manner.

How to Replace the Printer Cartridge Chip?

When the ink in the printer cartridge runs out, we need to replace the cartridge or replace the chip in the cartridge before we can continue to use the printer. Next, we will introduce in detail how to replace the printer cartridge chip.
Step 1: Preparation
Before replacing the printer cartridge chip, we need to prepare some tools in case of emergency. First, we need a new printer cartridge, making sure it matches our printer model. Then we need a screwdriver and some small clamps. Finally, prepare a clean piece of paper and a pen to jot down the relevant steps.
Step 2: Open the printer cover
Before replacing the printer cartridge chip, we need to open the printer cover first. Note that some printer covers require a slight pull forward to open. When the printer cover is opened, we can easily see where the printer cartridges are stored.
Step 3: Remove the old ink cartridge chip
Next, we need to use a small clamp to remove the chip from the cartridge. Before removing the chip of the printer cartridge, we need to pay attention to the location of the chip and ensure that it will not be damaged when removing the chip of the printer cartridge.
Step 4: Replace the new ink cartridge chip
Once we successfully remove the old cartridge chip, we can install the new chip into the printer cartridge. The new chip must match the printer model or it will not work. When installing a new chip, make sure you place the chip correctly so that it works properly.
Step 5: Test the new cartridge chip
After we have successfully replaced the new printer cartridge chip, the final step is to test whether it can work properly. We can connect the printer to the computer and print test strips to ensure that we have successfully replaced the printer cartridge chip and that the printer is working properly.
Replacing your printer cartridge chip takes just a few simple steps. We need to have some tools ready for emergencies and make sure the new printer cartridge chip is the correct model. It’s worth noting that you need to be careful when removing the cartridge chip to avoid damaging it. Please follow the steps to replace it to ensure that your printer works properly.

What to Do If the Ink Cartridge Chip Cannot be Recognized?

When using a printer, we often encounter the problem that the ink cartridge chip cannot be recognized. This problem is tricky because if the cartridge chip is not recognized, the printer will not work properly. In this part, we will provide you with a few quick ways to fix ink cartridge issues.
1. Clean the ink cartridge chip
The cartridge chip may not be recognized due to dust or dirt. Therefore, the first solution is to clean the cartridge chip. You can use a cleaning stick to gently clean the metal contact points on the cartridge chip to keep them clean and smooth. This can generally solve the problem of the ink cartridge chip not being recognized.
2. Replace the ink cartridge
If you cleaned the cartridge chip and it still doesn’t solve the problem, you may need to replace the cartridge. If your cartridge has been used for a long time, its chip may have aged or become damaged. In this case, you will need to purchase a new ink cartridge to ensure that your printer works properly.
3. Update printer driver
If your printer driver is outdated or corrupt, then it may cause issues with the ink cartridge chip not being recognized. In this case, you need to update the printer driver. You can visit the printer manufacturer’s website, and download and install the driver. This can generally solve the problem of the ink cartridge chip not being recognized.
4. Restart the printer
If you have tried the above three methods and still cannot solve the problem, you can try restarting the printer. Restarting the printer can help clear the printer cache, which can resolve some printer issues. You just need to turn the printer off for a while and then turn it back on. This can generally solve the problem of the ink cartridge chip not being recognized.
When using a printer, it is a common problem that the ink cartridge chip cannot be recognized. However, as long as you follow the above-mentioned methods, you can easily solve this problem. Remember, cleaning the ink cartridge chip, replacing the ink cartridge, updating the printer driver, and restarting the printer are the ways to solve the ink cartridge chip not recognized issue.

We have written an article “An Introduction to Ink Cartridge“, and you can learn more information about ink cartridges from it.
