Epson I3200 Series Printhead's Name Resolution
“I” means innovative, symbolizing Epson’s determination to break through the boundaries of technology continuously.
“3200” directly indicates its core advantage—it has 3,200 precision nozzles. This number is a pile of numbers and a double guarantee of printing accuracy and speed.
The I3200 series printheads include three models, as shown below: I3200-A1 (aqueous ink version), I3200-E1 (eco-solvent ink version), and I3200-U1 (UV ink version), corresponding to different application scenarios.
Among them, A, E, and U represent aqueous, eco-solvent, and UV, respectively, and “1” represents that these models are the first generation of products in their respective fields.
Epson I3200 Series Appearance and Structural Design
The I3200 series printhead adopts a compact appearance design and precise structure. Four pairs of 8 rows of nozzles are arranged in an orderly manner, with 400 holes in each row, for a total of 3200 nozzles. This ensures that the ink droplets are evenly distributed and the printing effect is delicate. The effective width of the nozzle is 1.3 inches, which is suitable for the printing needs of various formats.
Epson I3200 Series Printhead Technology
PrecisionCore Technology

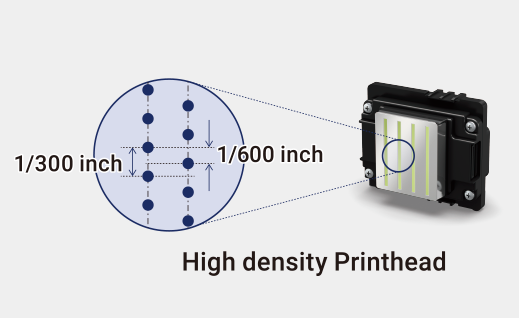

The I3200 series printheads are equipped with Epson's unique PrecisionCore micro-thin film piezoelectric printing chip, which uses the ALLMEMS (micro-electromechanical system) manufacturing process to achieve high-precision nozzle arrangement (600 dpi/2 rows).
PrecisionCore technology uses precise control of thin-film piezoelectric elements to make the ejected ink droplets close to a perfect circle and accurately positioned, providing a solid foundation for high-quality printing.
Variable Droplet Technology

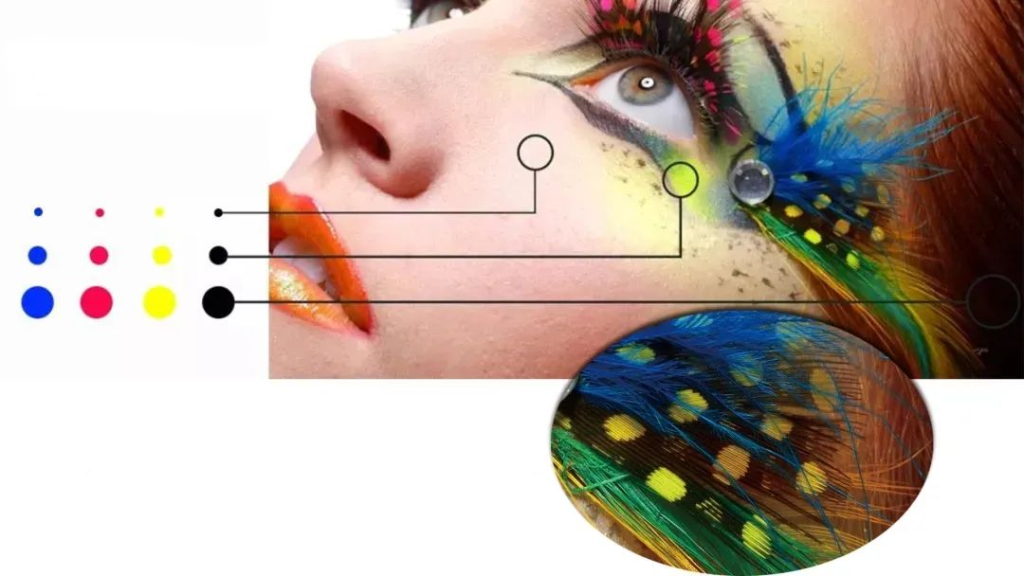

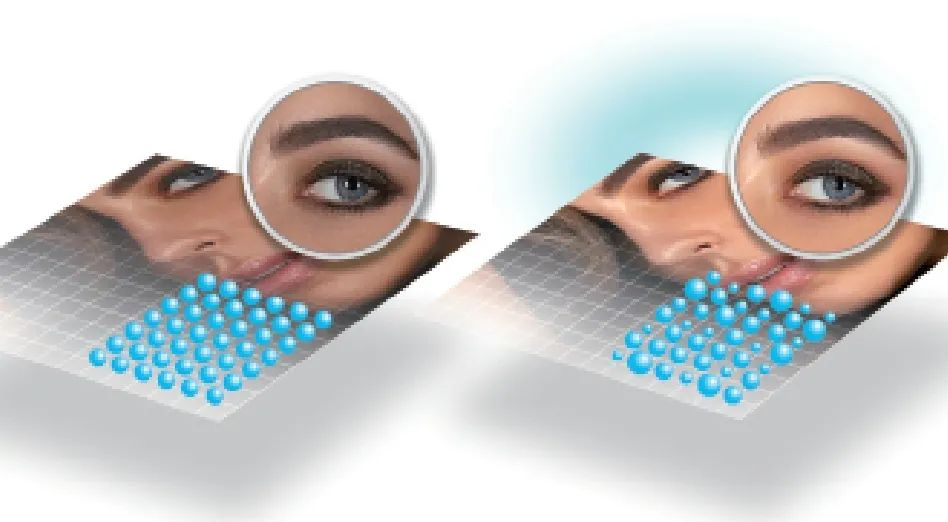

The I3200 series printheads support Epson's unique VSDT (variable droplet technology), which can freely control the droplet size and achieve multi-grayscale printing.
This technology significantly reduces the graininess of the picture, presents more picture details, and has smooth color transitions and high saturation, making the printed works more vivid and realistic.
If you are still deciding between I3200-A1, I3200-E1, and I3200-U1, read our complete Epson I3200 printhead selection guide.
Epson I3200 Printhead Advantages
High-Precision Printing
The I3200 series print heads have a printing accuracy of 3200 dpi, which is far higher than similar products and can easily achieve high-definition image-level printing effects.
High-Speed Printing
In single-head 4-pass non-feathering mode, the I3200 series printhead can print at a speed of 26-33 square meters per hour, which is the leading performance among similar products.
The efficient production capacity makes the I3200 series printhead the first choice for large-scale printing tasks, greatly improving work efficiency.
Diversified Applicability
The I3200 series printheads offer three different models, suitable for water-based inks, eco-solvent inks, and UV inks, meeting the needs of different application scenarios and helping customers achieve both creativity and value.
High Durability
The PrecisionCore printhead has excellent durability due to its high-precision processing technology. The I3200 series print heads are optimized to operate stably for a long time in various harsh environments, ensuring the stability of printing quality and production efficiency.
Wide Application Scenarios
In terms of textile printing, the i3200 series printheads, with their ultra-high-definition resolution of 3200 dpi, delicately present every detail of the pattern. Combined with inks designed for textile materials, they ensure the high clarity and color saturation of the printed pattern while ensuring the feel and comfort of the fabric, bringing an unprecedented visual and tactile experience to the high-end textile printing market.
In the field of advertising, the high-speed printing capability of the i3200 series printheads significantly improves the efficiency of advertising production. The printed patterns are bright in color and high in contrast. Even in harsh outdoor environments, they can maintain color stability for a long time, providing strong visual support for large outdoor billboards, car body advertisements, and exhibition displays.
Whether in advertising and publicity, industrial manufacturing, art and design, or education and research, the I3200 series printheads can help customers achieve both creativity and value with outstanding performance.
