Epson New Inkjet Printhead L1440, S3200 and F1440

Epson launches three types of micro piezo printhead, the Epson L1440 series (L1440-U2, L1440-A1), the Epson S3200 series (S3200 U1) & the Epson F1440 series (F1440 A1). These Epson printheads come into public notice with superior performance and competitive prices. Now, more information for you.

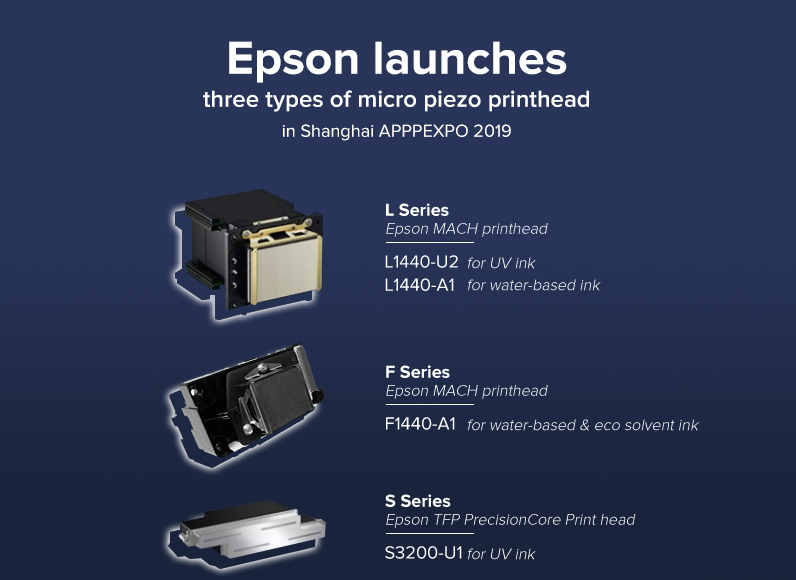

Epson L1440-A1, S3200 U1, and F1440 A1 printhead

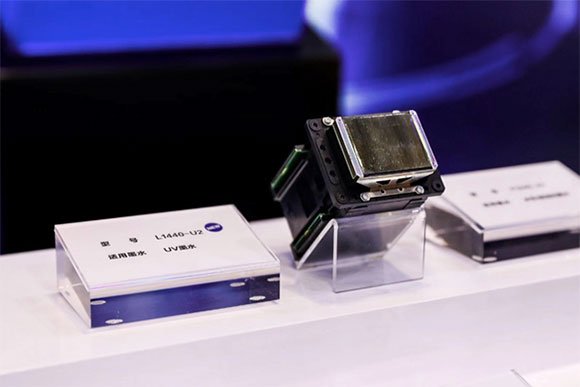

L1440 Series Printhead (L1440-U2, L1440-A1)

The Epson L1440-U2 printhead is a high-durability inkjet printhead that can be used with UV inks. It supports multi-color ink, is small in size, more compact in splicing, easier to plug in and out of data cables, and supports ink cleaning, making maintenance very convenient.

  • The resolution is 1440DPI.
  • The nozzles are not easily clogged due to large droplet sizes, even low-cost ink is available.
  • Long life.
  • Compatible with multi-color combinations. A single head can achieve 4-color printing at 360dpi or 8-color printing at 180dpi.
  • Variable dot control technology achieves grayscale printing and brings high saturated color presentation.
  • Compact design, easier to insert and remove flat cables.
  • Support for ink cleaning, easy for further maintenance.

Epson L1440-A1 printhead: For water-based ink.

Epson L1440-U2 printhead: For UV ink.

F1440 Series Printhead (F1440 A1)

Epson F1440-A1 printhead for water-based and eco-solvent ink.

  • Compatible with multi-color combinations. A single head can achieve 4-color printing at 360dpi or 8-color printing at 180dpi.
  • Variable dot control technology achieves grayscale printing and brings high saturated color presentation.
  • Features small droplets and high firing frequency, and can print at high speed with no need to sacrifice image quality.

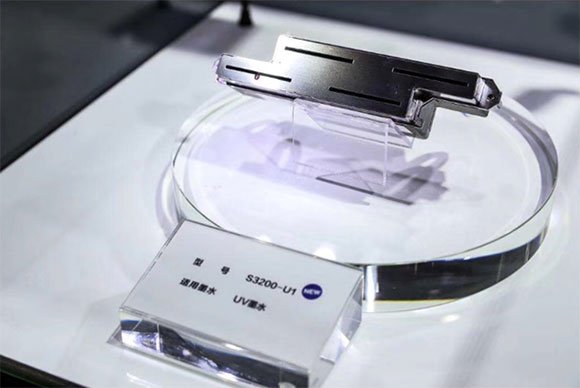

S3200 series Printhead (S3200 U1)

The S3200-U1 is a high-durability industrial-grade inkjet printhead for UV inks. It adopts an S-shaped arrangement and is easy to splice, resulting in more efficient production, higher image quality, and longer service life. S3200-U1 is equipped with an Epson PrecisionCore® printing chip, which ensures high-quality, high-speed, continuous full-color printing.

Epson S3200-U1 printhead: For UV ink.

  • Epson S3200-U1 printhead has 8 lines of nozzles, with 400 nozzles per line, giving a total of 3200 nozzles.
  • Dual row nozzle resolution is 600 dpi.
  • Long life.
  • Printhead Size:120mm.
  • Adopt variable drop control technology to achieve multi-gray print.
  • Able to run various single-pass print systems.

Differences Among Epson L1440-A1, S3200 U1, and F1440 A1

Specifications:

differences among L1440-U2, L1440-A1, S3200 U1, and F1440 A1

For more information, welcome to ask.
