What is Xaar 1201 Printhead?

The Xaar 1201 printhead utilizes thin-film piezoelectric silicon microelectromechanical systems (MEMS) technology to deliver exceptional performance in wide-format graphics (WFG) and textiles. Compatible with thermal transfer, eco-solvent, or water-based inks, the printhead features 1,280 nozzles organized in four rows and supports printing in 2 colors at 600 dpi or 4 colors at an original resolution of 300 dpi. The use of MEMS technology ensures high printing speed, precision, and reliability, making the Xaar 1201 ideal for both electrostatic and multi-print applications.

This printhead is a perfect fit for OEMs focused on designing banners, logos, and marketing facade applications, as well as graphic design printers. Its advantages include high print quality, impressive productivity, ease of integration, and a significant reduction in time to market.

Exceptional Print Quality with the Xaar 1201 Printhead

Experience unparalleled print quality with the Xaar 1201, setting a new standard in high-quality printing that surpasses similar products. Offering 8-level grayscale and 600 npi, this printhead achieves surface image resolutions exceeding 1440 dpi for breathtaking detail and clarity.

The Xaar 1201 is designed for ease of use, with simple alignment and installation that allows a single printhead to assemble a complete printer. For a cost-effective 4-color printer, two Xaar 1201 printheads can be installed in-line, each providing a native resolution of 600 npi per color.

Flexibility in printhead arrangement and installation can further enhance production capacity, outperforming most industrial printheads on the market. The Xaar 1201’s small 2.5 pL ink droplets are perfect for specific application ranges, offering an optimal balance between output and quality.

Thanks to its variable ink droplet technology, the printhead allows for precise control, enabling ultra-close inspection of small ink dots and clear observation of large ink dots from a distance. Elevate your printing capabilities with the Xaar 1201 printhead’s best-in-class print quality.

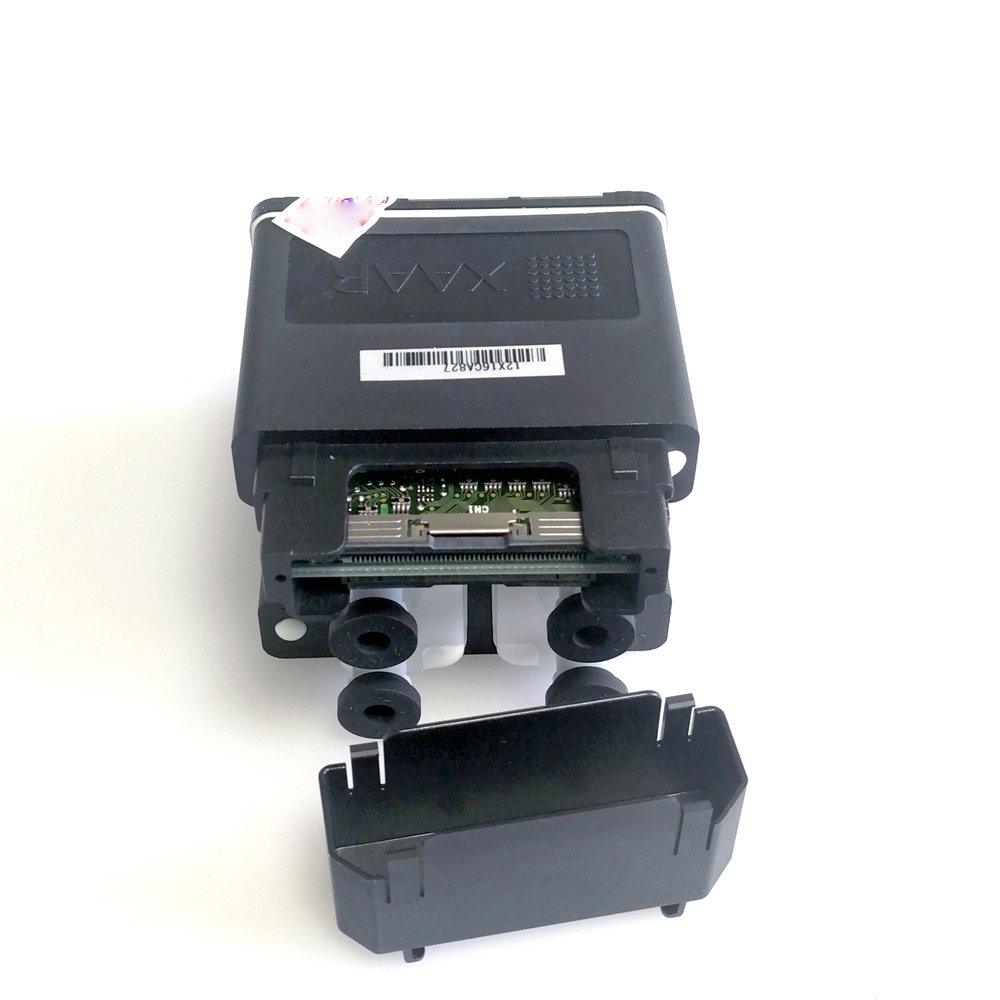

xaar 1201 printhead

Versatile Applications of the Xaar 1201 Printhead

The Xaar 1201 printhead offers a range of features that make it a highly versatile choice for various applications, including banners, posters, and sales center decorations.

Multiple Color Options: Each printhead can print in single, two, or four colors, allowing for customization based on your specific needs.

Adjustable Resolution: Depending on the end customer’s requirements, the printhead can be configured to print in four colors at 300 npi or two colors at 600 npi for increased detail and precision.

Flexible Pairing Arrangements: The staggered arrangement of the printheads allows manufacturers to choose the native resolution. In four-color printing, the default setting is 300 npi, while in two-color printing, pre-calibrated nozzles can be paired to achieve 600 npi per color.

Wide Compatibility: The Xaar 1201 printhead can handle both solvent and water-based inks, enabling it to print on a broad range of substrates such as photo paper, vinyl, canvas, and textiles.

The adaptability of the Xaar 1201 printhead makes it an ideal choice for a wide range of printing needs, providing flexibility and quality to suit your projects.

Seamless Integration

Manufacturers seeking an affordable and flexible printhead for low-cost wide-format graphics or textile printers will find the Xaar 1201 to be an ideal solution due to its ease of integration.

Flexible Connectivity: The Xaar 1201 printhead features a flexible flat signal cable that easily connects to the circuit socket on top of the printhead, making it a breeze to assemble on a scanning inkjet printer. This unique design effectively guards against accidental ink intrusion and damage.

Secure Installation: The Luer lockable ink tube connection and clip-on cable connection offer straightforward, precise, and secure installation for the printhead. This prevents potential mechanical or electronic damage and ensures ink doesn’t leak.

Streamlined Ink Supply: Utilizing a simple siphon ink supply system with a direct design significantly reduces the time to market. This efficiency benefits manufacturers aiming to bring their products to market swiftly.

Complete CMYK Printing: A single Xaar 1201 printhead can operate a full 4-color (CMYK) printer, enabling simple integration of mechanical, electronic, and fluid components.

Convenient Reference Points: The printhead provides physical installation reference points that facilitate easy connection and calibration of multiple printheads.

With the Xaar 1201, manufacturers enjoy simple and secure integration, allowing them to focus on producing high-quality prints while minimizing installation complexities.
